Installing the Cutter Kit

ITEM "A"
ITEM "A"
SCREW
ITEM "B"
ITEM "B" SCREWS
STEP
PROCEDURE
O..
D
S
W
1
D
S
W
2
D
S
W
3
S
E
T
T
N I
G
O
f f
O
n
O
f f
C
t t u
r e
M
o
d
e
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the T400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Oki T400

Summary of Contents for Oki T400

  • Page 1: Installing The Cutter Kit

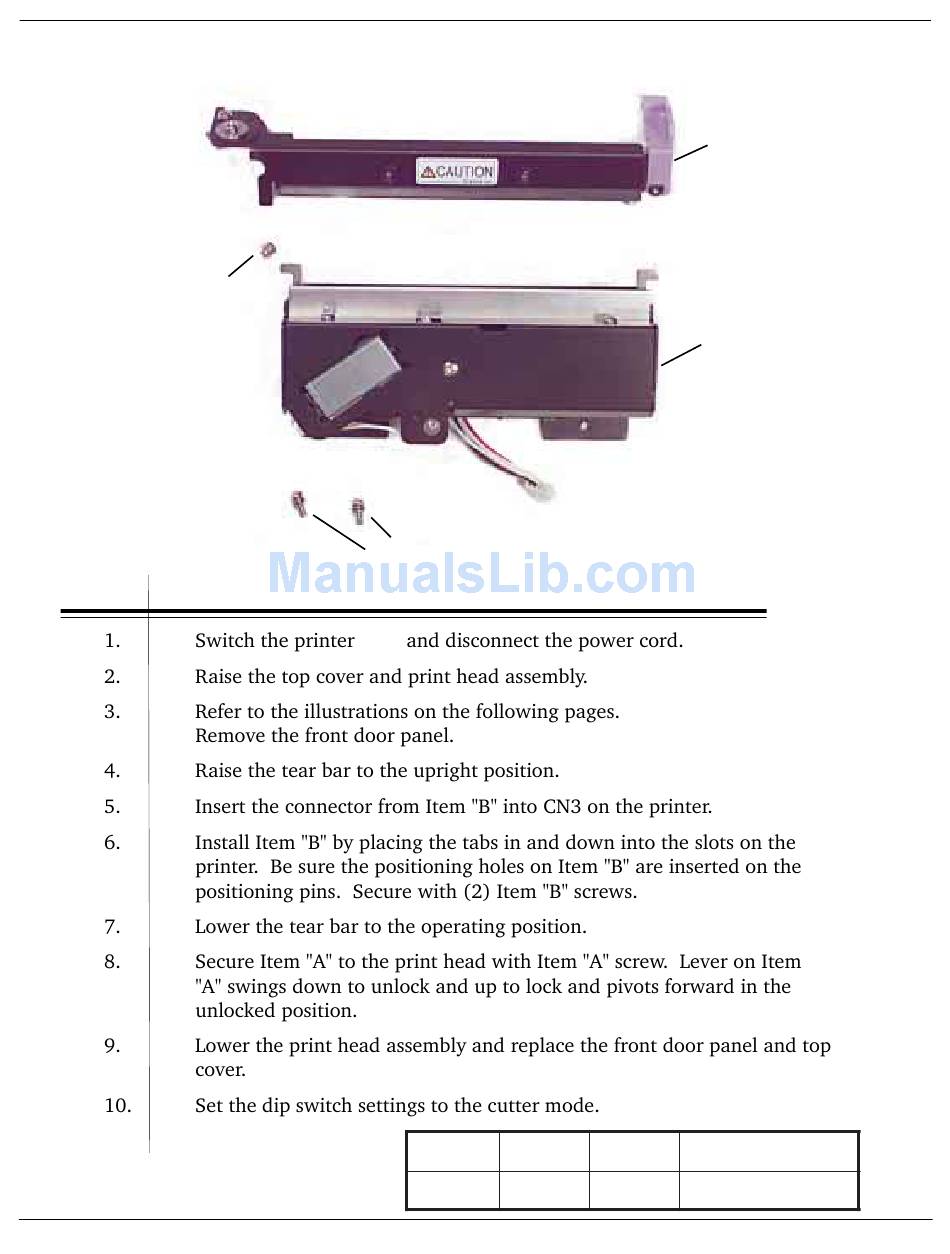

    Installing the Cutter Kit ITEM "A" ITEM "A" SCREW ITEM "B" ITEM "B" SCREWS STEP PROCEDURE t t u Page 1...
