Summary of Contents for Esoteric D00816600A

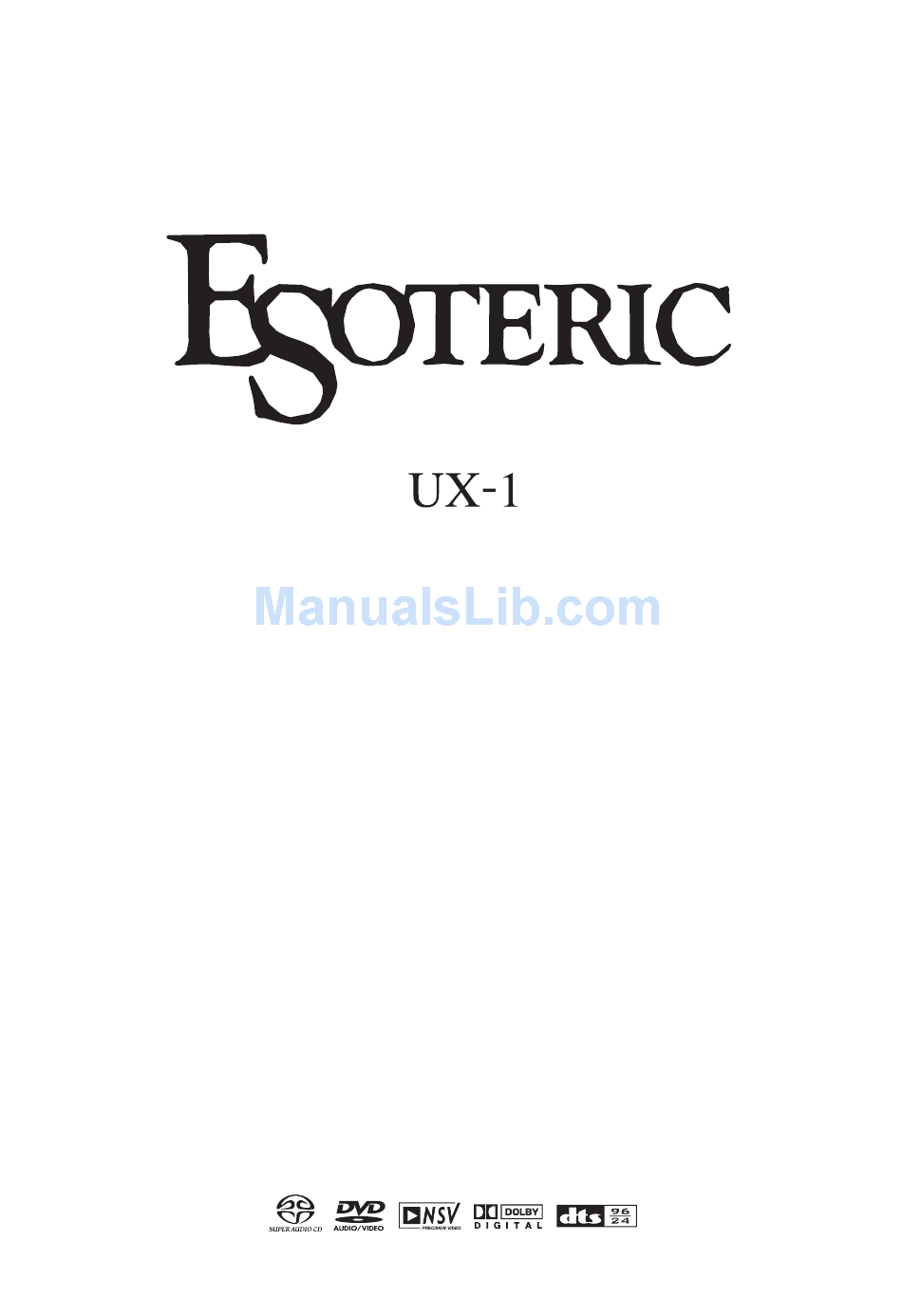

  • Page 1 D00816600A DVD/DVD-A/SACD/CD PLAYER OWNER’S MANUAL ....MANUEL DU PROPRIÉTAIRE . . .
  • Page 2: Important Safety Instructions

    CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...
  • Page 3 This product has been designed and manufactured according to FDA regulations “title 21, CFR, chapter 1, subchapter J, based on the Radiation Control for Health and Safety Act of 1968“, and is classified as class 1 laser product. There is not hazardous invisible laser radiation during operation because invisible laser radiation emitted inside of this product is completely confined in the protective housings.
  • Page 4: Table Of Contents

    Thank you for choosing TEAC. Read this manual carefully to get the best performance from this unit. Contents ......... 4 Features .
  • Page 5: Features

    Using a high-quality clock signal provided by an external DA converter such as the Esoteric G-0/G-0s provides optimum video and audio quality, up to 192kHz, optimizing a top- ranking universal player like the UX-1.
  • Page 6: Conventions About This Manual

    What’s in the box Please confirm that the following accessories are in the box when you open it. Remote control unit x 1 Batteries (AA, R6, SUM-3) x 2 Screwdriver x 1 Felt sheet x 3 Power cord x 1 Owner’s manual x 1 Warranty card x 1 Conventions about This Manual...
  • Page 7: Restoring Factory Settings

    Restoring factory settings If you have made a lot of changes to the setup, and want to restart from a known set of options, restore the unit to the factory settings as follows: 1. With the unit turned off, press and hold down the STOP button.
  • Page 8: Discs

    If the region number on the disc you want to play does not match the region number of your DVD player, you will not be able to play the disc. In that case, an error message will appear on the screen.
  • Page 9 Following discs cannot be played with this unit: • CD-G, Data part of CD-EXTRA, PHOTO CD, CD-ROM and DVD-ROM discs • discs recorded in a color system other than PAL or NTSC • illegally produced discs • scratched discs • discs that are dusty, soiled or marked with fingerprints Warning: If you attempt to play back such discs, there is a risk that sudden loud noise can blast over the speakers at full volume and cause...
  • Page 10: Connection To A Tv

    CAUTION: < Switch off the power to all equipment before making connections. < Read the instructions of each component you intend to use with this unit. < Be sure to insert each plug securely. To prevent hum and noise, avoid bundling the signal interconnection cables together with the AC power cord or speaker cables.
  • Page 11: Composite Video Output Terminal

    < Adjust the video aspect ratio to match that of the television (see page 38) . < If the component video terminals or the D1/D2 terminal are used to connect the unit to a television with progressive- scan capabilities, the output can be set to match this (see page 39).
  • Page 12: Connections To An Amplifier, Etc

    CAUTION: < Switch off the power to all equipment before making connections. < Read the instructions of each component you intend to use with this unit. < Be sure to insert each plug securely. To prevent hum and noise, avoid bundling the signal interconnection cables together with the AC power cord or speaker cables.
  • Page 13 Analog audio output terminals Use either the XLR or RCA (pin) FRONT terminals for analog stereo output. If your amplifier has balanced XLR analog audio inputs, connect the XLR jacks on the unit to the amplifier’s XLR jacks, otherwise use the RCA (pin) connections. For surround (5.1) amplifiers with analog inputs, also use the RCA (pin) SURROUND pair, CENTER and SUBWOOFER connections (in addition to the FRONT pair).
  • Page 14: Front Panel Features

    POWER Use this to turn the unit on and off. When the unit is on, the ring surrounding the button lights up. The equipment draws nominal non-operating power from the AC outlet with its POWER switch in the OFF position. CLOCK MODE Use this to select an external word sync source connected to the WORD SYNC connector on the rear panel.
  • Page 15: Front Panel Display

    Disc type indicator Shows the type of disc currently loaded. GROUP indicator Indicates that the group number of a DVD audio disc is being shown. TITLE indicator Indicates that the title of a DVD disc is being shown. CHAPTER indicator Indicates that the chapter of a DVD disc is being shown.
  • Page 16: Understanding The Remote Control Unit

    Understanding the remote control unit Number buttons Use these for selecting tracks by number, etc. DVI ON/OFF Use this to turn DVI video output on and off. VIDEO ON/OFF Use this to turn all video on and off. 2CH/MULTI Use this to switch between two-channel (stereo) and multi- channel surround audio output.
  • Page 17 DISPLAY Use this button to change the display mode. FL DIMMER button Use this button to change the brightness of the front panel display. REPEAT Use this button to set the repeat playback mode. PROGRAM Use this button when programming playback order. GROUP/TITLE Use these buttons to skip back or forward by one group or title.
  • Page 18: Playback

    DVD VCD CD SACD DVD-A Turn on the power using the POWER button on the main unit. The button and the display light. Press the OPEN/CLOSE button. The tray opens after a second or two (this delay is due to the movement of the internal mechanism of the unit before opening).
  • Page 19: Stopping Playback

    Playback control (with PBC enabled) video CDs With these discs, the number buttons can sometimes be used to select menu items. Jump between pages of multi-page menus (on some video CDs) with the SKIP buttons (.//). < Pressing RETURN during playback returns to the menu of a PBC video CD.
  • Page 20: Selecting A Chapter Or Track

    DVD DVD-A Selecting groups and titles Use the remote control unit’s GROUP/TITLE buttons ( to change titles and groups on DVD media. If pressed during playback, these buttons start playback at the selected group/title. If pressed during pause or stop mode, playback is paused at the start of the selected group/title.
  • Page 21: Repeat Mode

    DVD VCD CD SACD DVD-A Fast scanning When playing back, use the SCAN button (m or ,) to move backwards and forwards (sound is muted for DVD video and video CD discs). Press PLAY to restart playback at normal speed at the desired location. Repeated presses of the SCAN buttons changes the scanning speeds.
  • Page 22: Programmed Playback

    CD SACD DVD-A Programmed playback allows up to 30 tracks to be played back in the order you decide. Note that programmed playback is not possible for DVD video and video CD discs. Press the PROGRAM button (either when playing back or stopped).
  • Page 23: Changing Camera Angle

    Clearing the last track from the list Push the CLEAR button to clear the last track from the list. Adding tracks to the list Use the number buttons to add tracks to the list. Clearing the whole program Press the PROGRAM button to clear the program (playback continues from the current point).
  • Page 24: Selecting Audio

    DVD VCD Slow motion/frame advance Slow motion During playback, press either of the SLOW buttons ( to slow playback in either direction. Pressing PLAY resumes normal speed playback. Repeated presses of the SLOW buttons change the slow playback speed: : 1/8 q 1/4 q 1/2 q normal speed :1/20 q 1/16 q 1/12 q playback at normal speed Frame advance If you press the SLOW buttons when playback is paused, you...
  • Page 25: Display Dimming

    Selecting subtitles Use the SUBTITLE button to select DVD subtitles. Repeated presses of this button cycle through available languages on a disc until OFF is reached (no subtitle). < Subtitles do not always appear immediately after the language has been selected. It may be necessary to wait a few seconds until the subtitles appear.
  • Page 26: Dvi Output

    DVD VCD The DVI ON/OFF button turns output from the DVI output on and off. In order to use this output, a DVI/HDCP-compliant television must be used. < If the display is not HDCP-compliant, video playback may not occur. < When this DVI output is turned on, even if progressive scan has been selected for the component video outputs, an interlaced signal is output.
  • Page 27: Clock Mode

    Word sync For highly accurate playback, you can use the word clock (sync) output of an external unit such as the Esoteric D-70 or G-0 to synchronize your whole audio system. Use the CLOCK MODE (main unit) button to switch between Word ON and Word OFF.
  • Page 28: Changing The Display Mode

    DVD VCD CD SACD DVD-A During playback, it is possible to change the display as shown here. The display on both the main unit, and the on-screen display (when the video output is on) changes. When playback stops, the display mode reverts to the first type of display.
  • Page 29: Main Unit Display

    DVD audio playback (on-screen display) (no display) Current group Elapsed time of current track Group Track Elapsed Remain 02/10 01:50 04:41 Time remaining for current track Currently-playing track Total number of tracks on disc Elapsed time of current group Group Track Total Elapsed 02/10...
  • Page 30: Settings (Introduction)

    Turn on the main unit, and the television (monitor). Press the SETUP button. The following appears on screen. Analog Out 2ch * Digital Out ON * CD Digital Direct Direct * Audio DRC OFF * Group Playback Single * 2ch Down Mix Lo/Ro * Move Return...
  • Page 31: Analog Output Settings

    Analog output settings [AUDIO q Analog Out] Analog Out 2ch * Digital Out Multi Channel CD Digital Direct Audio DRC Group Playback 2ch Down Mix Move Return Select 2ch * Outputs audio from the FRONT L and R terminals. If the source is multi-channel surround, this is downmixed into 2 channels.
  • Page 32: Audio Drc (Dynamic Range Controlling)

    Audio DRC (Dynamic Range Controlling) [AUDIO q Audio DRC] Analog Out Digital Out CD Digital Direct Audio DRC OFF * Group Playback 2ch Down Mix Move Return Select Applies dynamic range control to Dolby Digital material, reducing the volume of loud sounds, and increasing the volume of quiet ones.
  • Page 33: Video Adjustment

    Video adjustment [VIDEO q Video Adjust] Highlight the Video Adjust menu item and press the ENTER button. Video Adjust Progressive Setting Move Return Select Reference* Memory 1 Memory 2 Move Return Select Near the bottom of the display, a row of four options appears: Reference, and three memory settings (Reference contains the factory default settings and the three memories can be used to make video settings for different monitors,...
  • Page 34: Audio Language Selection

    Audio language selection [LANGUAGE q Audio Language] Audio Language English * Subtitle Language Japanese Subtitle Display Other OSD Language Move Return Select This provides an alternative to the AUDIO button for selecting alternative soundtracks. The default setting is English* but you can also select Japanese, or a number of other different languages as the audio track to be played from a multi-lingual disc.
  • Page 35: Language Code List

    Language Code List Language Code Language Japanese (ja) 1001 Guarani (gn) English (en) 0514 Gujarati (gu) French (fr) 0618 Hausa (ha) German (de) 0405 Hindi (hi) Italian (it) 0920 Croatian (hr) Spanish (es) 0519 Hungarian (hu) Chinese (zh) 2608 Armenian (hy) Dutch (nl) 1412 Interlingua (ia)
  • Page 36: Speaker Size

    Use these speaker setup menus when connecting an AV amplifier with analog outputs, using the 5.1 multi-channel setting (there is no need for this setup when not using multi- channel analog connections). When “Direct” is chosen as the CD playback option (see page 31), the settings made here are ignored.
  • Page 37: Digital Output Formats

    Speaker levels [GENERAL q Speaker Setting q Level] Use this to set the relative levels of the speakers. You can set the L/R pair together, and the center, and surround rear pair independently, as well as the subwoofer. The maximum value you can set here is +6dB and the minimum is -12dB, with settings made in 0.5dB increments.
  • Page 38: S-Video Output

    Speaker Setting Audio Digital Out TV Screen Video Out S-Video Out Display Setting Comp. Video Parental Lock PL-NT Conv. Caption Still Mode Move Return Select This menu item contains a number of different options, all concerned with the video output from the unit. TV screen [GENERAL q Video Out q TV Screen] Because the shape of the television or monitor may not match...
  • Page 39: Still Mode

    RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.’ PAL-NTSC conversion [GENERAL q Video Out q PL-NT Conv.] This allows you to play back and show NTSC discs on PAL equipment, or the other way round.
  • Page 40: On-Screen Display

    Settings (General/Display) Speaker Setting Audio Digital Out Video Out Display Setting On Screen Display Parental Lock Angle Indicator Background Move Return Select On-screen display [GENERAL q Video Out q On Screen Display] When a button is pressed and this setting is ON* , the screen shows that button’s name and/or icon, etc.
  • Page 41: Country Code

    Setting the level of control [GENERAL q Parental Lock q Level] Speaker Setting Audio Digital Out Video Out Password Set/Change Display Setting Level Parental Lock Country Code Level Move Return Select Once a password has been entered, you can enter a control level, ranging from 1 (strict control) through 8 (much less strict) to OFF* (no control at all).
  • Page 42: Troubleshooting

    In case you experience any problem with this unit, please take the time to look through this chart and see if you can solve the problem yourself before you call your dealer or a TEAC service center. No power e Check the connection to the AC power supply. Check and make sure the AC source is not a switched outlet and that, if it is, the switch is turned on.
  • Page 43: Beware Of Condensation

    No DTS audio output. e When your amplifier is not equipped with DTS decoder, set the DTS setting to “PCM”. Or press the AUDIO button to select any other audio (see page 37, 24). e When playing back a DTS-CD, set the CD Digital Direct setting to “Normal”...
  • Page 44: Specifications

    General System ....DVD-Video, DVD-Audio, DVD-R/RW, Power supply Europe model ..... AC 230 V, 50 Hz U.S.A./Canada model.
  • Page 45: Block Diagram

    Spindle Motor SACD CD・VCD Optical Pickup VRDS UNIT Driver RF Amp SACD Decoder Converter Front End Audio MPEG-2 Decorder Back End FRONT PANEL Display Block Diagram Converter Converter Digital Filter Converter Converter Converter Digital SACD Filter Converter Converter Digital Filter Converter Video Encoder...
  • Page 46: Sommaire

    Nous vous remercions pour l’achat d’un appareil TEAC. Lire ce manuel avec attention pour obtenir les meilleures performances possibles de cet appareil. Sommaire ........46 Caractéristiques .
  • Page 47: Caractéristiques

    à la verticale. Un moteur Esoteric breveté, sans balais, à détection d’élément Hall pilote le chariot dont la vitesse est mesurée afin de contrôler par asservissement le chariot lui-même, ce qui signifie que le chariot répond avec vivacité...
  • Page 48: Avant Utilisation

    Contenu de l’emballage Vérifiez que les accessoires suivants se trouvent bien dans le carton. Télécommande x 1 Piles (AA, R6, SUM-3) x 2 Tournevis x 1 Feuille de feutre x 3 Cordon d’alimentation x 1 Manuel du propriétaire x 1 Carte de garantie x 1 Notes concernant ce Manuel <...
  • Page 49 Restauration des réglages usine Si vous avez fait beaucoup de modifications au système, et voulez repartir d’options connues, restaurez les réglages usine comme suit: 1. Avec l’appareil éteint, appuyez et maintenez enfoncé le bouton STOP. 2. Tout en maintenant le bouton STOP enfoncé, pressez l’interrupteur POWER.
  • Page 50: Disques

    Type de disques utilisables sur ce système Ce lecteur permet de lire tous les disques portant les logos suivants: DVD-Vidéo : • Disques simple face ou double face • Disque simple couche ou double couche • Dolby Digital, DTS, MPEG ou audio numérique Linear PCM •...
  • Page 51 Cet appareil ne permet pas de lire les disques suivants: • CD-G, Données faisant partie de disques CD-EXTRA, PHOTO CD, CD-ROM et DVD-ROM. • Les disques enregistrés dans un système couleur autre que les systèmes PAL ou NTSC • Les disques reproduits illégalement •...
  • Page 52: Raccordement À Un Téléviseur

    PRÉCAUTION: < Coupez l’alimentation de tous les appareils avant d’effectuer les raccordements. < Lisez les instructions qui accompagnent chaque appareil que vous avez l’intention d’utiliser en association avec cet appareil-ci. < Veillez à ce que chaque fiche soit soigneusement insérée. Pour éviter les ronflements et les bruits parasites, évitez d’attacher les câbles d’interconnexion parcourus par les signaux avec le cordon d’alimentation secteur ou les câbles de liaison aux enceintes.
  • Page 53 < Ajustez le rapport d’aspect vidéo pour s’accorder à celui du téléviseur (voir page 80). < Si les prises vidéo composantes ou les prises D1/D2 sont utilisées pour connecter l’appareil à un téléviseur avec balayage progressif, la sortie peut être réglée ainsi (voir page 81).
  • Page 54: Raccordement À Un Amplificateur, Etc

    Raccordement à un amplificateur, etc. PRÉCAUTION: < Coupez l’alimentation de tous les appareils avant d’effectuer les raccordements. < Lisez les instructions qui accompagnent chaque appareil que vous avez l’intention d’utiliser en association avec cet appareil-ci. < Veillez à ce que chaque fiche soit soigneusement insérée. Pour éviter les ronflements et les bruits parasites, évitez d’attacher les câbles d’interconnexion parcourus par les signaux avec le cordon d’alimentation secteur ou les câbles de liaison aux enceintes.
  • Page 55 Prises de sortie audio analogiques Utilisez soit les prises XLR ou RCA FRONT (avant) pour la sortie analogique stéréo. Si votre amplificateur a des entrées audio analogiques XLR, connectez les prises XLR de l’appareil à celles de l‘amplificateur, sinon utilisez les connexions RCA. Pour les amplificateurs multicanaux (5.1) avec entrées analogiques, utilisez également une paire de câbles RCA SURROUND, les connexions CENTER et SUBWOOFER en plus...
  • Page 56: Caractéristiques De La Face Avant

    POWER Pour allumer ou éteindre l’appareil. Lorsque l’appareil est sous tension, l’anneau autour du bouton s’illumine. L’appareil tire de la prise secteur une puissance faible mais non nulle lorsque l’interrupteur POWER est sur la position OFF. CLOCK MODE Pour sélectionner une source word sync externe raccordée au connecteur WORD SYNC du panneau arrière.
  • Page 57: Afficheur De La Face Avant

    Type de disque Indique le type de disque chargé. GROUP Indique que le nombre de groupe d’un disque DVD audio est affiché. TITLE Indique que le titre d’un disque DVD est affiché. CHAPTER Indique que le chapitre d’un disque DVD est affiché. TRACK Indique que le nombre de plages d’un CD, SACD ou vidéo CD est affiché.
  • Page 58: Comprendre La Télécommande

    Comprendre la télécommande Touches numériques Pour sélectionner les plages par leur numéro, etc. DVI ON/OFF Pour activer/désactiver la sortie vidéo DVI. VIDEO ON/OFF Pour activer/désactiver toute vidéo. 2CH/MULTI Pour basculer entre les modes audio stéréo deux canaux et son multicanal (surround). PLAY AREA Pour sélectionner l’aire de lecture sur les disques DVD audio et SACD.
  • Page 59: Mise En Place Des Piles

    DISPLAY Pour changer le mode d’affichage. FL DIMMER Pour régler la luminosité de l’affichage de la face avant. REPEAT Pour activer le mode lecture à répétition. PROGRAM Pour programmer l’ordre de lecture. GROUP/TITLE Pour avancer ou reculer d’un groupe ou d’un titre à l’autre. SKIP (.//) Equivalents aux boutons SKIP sur la face avant.
  • Page 60: Lecture

    DVD VCD CD SACD DVD-A Allumez l’appareil en appuyant sur son bouton POWER. Le bouton et l’affichage s’illuminent. Appuyez sur le bouton OPEN/CLOSE. Le tiroir s’ouvre après une seconde ou deux (ce retard est du au mouvement du mécanisme interne avant l’ouverture). Insérez le disque avec l’étiquette sur le dessus.
  • Page 61: Arrêter La Lecture

    Vidéo CD avec PBC (contrôle de lecture) Avec ces disques, les touches numériques peuvent parfois être utilisées pour sélectionner les items de menu. Vous pouvez sauter entre les pages des menus à pages multiples (sur certains vidéo CD) avec les touches SKIP (.//).
  • Page 62: Sélection Des Groupes Et Des Titres

    DVD DVD-A Sélection des groupes et des titres Utilisez les touches GROUP/TITLE buttons ( télécommande pour changer les titres et les groupes sur un media DVD. Lorsque vous appuyez sur ces boutons en mode lecture, celle-ci commence au groupe/titre sélectionné. Lorsque vous appuyez sur ces boutons en mode pause ou stop, la lecture est mise en pause au début du groupe/titre sélectionné.
  • Page 63: Lecture Accélérée

    DVD VCD CD SACD DVD-A Lecture accélérée En lecture, utilisez la touche SCAN (m ou ,) pour avancer et reculer (le son est coupé avec des disques vidéo DVD et vidéo CD). Appuyez sur PLAY pour redémarrer en lecture à vitesse normale à l’endroit désiré. A chaque pression sur les touches SCAN la vitesse de lecture augmente.
  • Page 64: Lecture Programmée

    CD SACD DVD-A La lecture programmée vous permet de lire 30 plages dans l’ordre que vous décidez. Notez que la lecture programmée n’est pas possible avec les DVD vidéo et disques vidéo CD. Appuyez sur la touche PROGRAM (soit en lecture soit à l’arrêt).
  • Page 65: Changement De L'angle De Prise De Vue

    Effacer la dernière plage de la liste Appuyez sur la touche CLEAR pour effacer le dernier plage de la liste. Ajouter des plages à la liste Utilisez les touches numériques pour ajouter des plages à la liste. Effacer tout le programme Appuyez sur la touche PROGRAM pour effacer le programme (la lecture continue à...
  • Page 66: Ralenti / Lecture Image Par Image

    DVD VCD Ralenti / Lecture image par image Ralenti En lecture, appuyez sur l’une ou l’autre touche SLOW ( pour ralentir la lecture dans l’une ou l’autre direction. En appuyant sur PLAY vous reprenez la vitesse normale de lecture. Des pressions répétées sur les touches SLOW changent la vitesse de ralenti: : 1/8 q 1/4 q 1/2 q vitesse normale :1/20 q 1/16 q 1/12 q playback at normal speed...
  • Page 67: Sélection Des Sous-Titres

    Sélection des sous-titres Utilisez la touche SUBTITLE pour sélectionner les sous- titres DVD. Les pressions successives sur cette touche font défiler les langues disponibles sur un disque jusqu’à ce que OFF (pas de sous-titres) soit atteint. < Les sous-titres n’apparaissent pas toujours immédiatement après que la langue ait été...
  • Page 68: Sortie Dvi

    DVD VCD La touche DVI ON/OFF met la sortie DVI en service ou non. Afin d’utiliser cette sortie, il faut utiliser un téléviseur compatible DVI/HDCP. < Si l’affichage n’est pas compatible HDCP, il peut ne pas y avoir d’image. < Lorsque cette sortie DVI est activée, même si le balayage progressif a été...
  • Page 69: Allumer/Eteindre La Vidéo

    DVD VCD CD SACD DVD-A Allumer/Eteindre la vidéo Utiliser la touche VIDEO ON/OFF pour allumer ou éteindre le téléviseur (moniteur). Il n’est pas nécessaire d’éteindre la vidéo mais vous pourrez remarquer une légère amélioration de la qualité audio si vous coupez la vidéo lors de la lecture de disques SACD ou CD sans image.
  • Page 70: Changement Du Mode D'affichage

    DVD VCD CD SACD DVD-A En lecture, Il est possible de changer l’affichage comme montré ici. L’affichage change à la fois sur l’appareil principal, et sur l’affichage incrusté à l’écran (lorsque la sortie vidéo est active). Lorsque la lecture s’arrête, le mode d’affichage retourne au premier type d’affichage.
  • Page 71 Lecture DVD audio (affichage incrusté sur l’écran) (pas d’affichage) Groupe en cours Temps écoulé de la plage en cours Group Track Elapsed Remain 02/10 01:50 04:41 Temps restant de la plage en cours Plage en cours de lecture Nombre total de plages sur le disque Temps écoulé...
  • Page 72: Réglages

    Allumez l’appareil principal, et le téléviseur (moniteur). Appuyez sur le bouton SETUP. L’écran suivant s’affiche. Analog Out 2ch * Digital Out ON * CD Digital Direct Direct * Audio DRC OFF * Group Playback Single * 2ch Down Mix Lo/Ro * Move Return Select...
  • Page 73: Réglages Sortie Analogique

    Réglages sortie analogique [AUDIO q Analog Out] Analog Out 2ch * Digital Out Multi Channel CD Digital Direct Audio DRC Group Playback 2ch Down Mix Move Return Select 2ch * L’audio sort sur les bornes FRONT L et R (avant gauche et droite).
  • Page 74: Contrôle De La Gamme Dynamique

    Contrôle de la gamme dynamique [AUDIO q Audio DRC] Analog Out Digital Out CD Digital Direct Audio DRC Group Playback OFF * 2ch Down Mix Move Return Select Applique un contrôle de la gamme dynamique aux contenus Dolby Digital, réduisant le volume des sons forts, et augmentant le volume des sons faibles.
  • Page 75: Ajustement De La Vidéo

    Ajustement de la vidéo [VIDEO q Video Adjust] Mettez l’item de menu Video Adjust en surbrillance et appuyez sur la touche ENTER. Video Adjust Progressive Setting Move Return Select Reference* Memory 1 Memory 2 Move Return Select Près du bas de l’affichage, un rang de quatre options apparaît: “Reference”, et trois réglages mémoire (Référence contient les réglages par défaut d’usine et les trois mémoires peuvent être utilisées pour faire des réglages vidéo pour...
  • Page 76: Sélection De La Langue Audio

    Sélection de la langue audio [LANGUAGE q Audio Language] Audio Language English * Subtitle Language Japanese Subtitle Display Other OSD Language Move Return Select Ceci offre une alternative à la touche AUDIO pour sélectionner d’autres bandes son. Le réglage par défaut est English* (Anglais) mais vous pouvez également sélectionner Japonais, ou plusieurs autres langues différentes, ainsi que la plage audio d’un disque multilingue.
  • Page 77: Liste Des Codes De Langue

    Liste des codes de langue Langue Code Langue Japanese (ja) 1001 Guarani (gn) English (en) 0514 Gujarati (gu) French (fr) 0618 Hausa (ha) German (de) 0405 Hindi (hi) Italian (it) 0920 Croatian (hr) Spanish (es) 0519 Hungarian (hu) Chinese (zh) 2608 Armenian (hy) Dutch (nl)
  • Page 78: Distance Des Enceintes

    Réglages (général/réglage des enceintes) Utilisez ces menus de réglages des enceintes lorsque vous raccordez un amplificateur AV pourvue sorties analogiques, en utilisant le réglage son multicanal 5.1 (c’est inutile quand vous n’utilisez pas des raccordements analogiques pour son multicanal). < Lorsque “Direct” est choisi comme option de lecture du CD (voir page 73), les réglages effectués ici sont ignorés.
  • Page 79: Formats De Sortie Numérique

    Niveaux des enceintes [GENERAL q Speaker Setting q Level] Utilisez ceci pour régler les niveaux relatifs des enceintes. Vous pouvez régler la pair L/R ensemble, et l’enceinte centrale et la paire surround arrière indépendamment, tout comme le caisson de graves. La valeur maximum que vous pouvez mettre ici est +6dB et le minimum est –12dB, par incréments de 0.5dB.
  • Page 80: Écran Tv

    Speaker Setting Audio Digital Out TV Screen Video Out S-Video Out Display Setting Comp. Video Parental Lock PL-NT Conv. Caption Still Mode Move Return Select Cet item de menu contient un nombre d’options différentes, toutes en rapport avec la sortie vidéo de l’appareil. Écran TV [GENERAL q Video Out q TV Screen] Parce que le format du téléviseur ou du moniteur peut ne pas...
  • Page 81: Sortie Vidéo Composante

    Sortie vidéo composante [GENERAL q Video Out q Comp. Video] Ce réglage permet de sélectionner le balayage (Interlace*) entrelacé ou (Progressive) progressif, pour les sorties vidéo composante. La vidéo à balayage progressif fournit une meilleure image plus claire. Cependant, elle n’est pas supportée par tous les téléviseurs ou moniteurs, et vous devriez vous assurer qu’elle est complètement disponible avant d’activer cette option.
  • Page 82: Affichage Incrusté À L'écran

    Réglages (général/Affichage) Speaker Setting Audio Digital Out Video Out Display Setting On Screen Display Parental Lock Angle Indicator Background Move Return Select Affichage incrusté à l’écran [GENERAL q Video Out q On Screen Display] Lorsqu’une touche est appuyée et que ce réglage est activé (ON*), le nom et/ou l’icône etc.
  • Page 83: Changer Le Mot De Passe

    Régler le niveau de contrôle [GENERAL q Parental Lock q Level] Speaker Setting Audio Digital Out Video Out Password Set/Change Display Setting Level Parental Lock Country Code Level Move Return Select Une fois qu’un mot de passe a été entré, vous pouvez entrer un niveau de contrôle, de1 (contrôle strict) à...
  • Page 84: Dépannage

    En cas de problème avec l’appareil, prenez le temps de lire ce tableau et de voir si vous pouvez résoudre le problème tout seul avant de faire appel à votre revendeur ou au centre d’assistance TEAC. Pas d’alimentation e Vérifiez le raccordement au secteur. Vérifiez que la prise n’est pas commandée par un interrupteur, si c’est le cas allumez l’interrupteur.
  • Page 85: Entretien

    L’enregistrement audio numérique n’est pas possible sur un autre appareil e Vérifiez que le réglage Digital Out est sur “ON”. Et le format numérique audio doit être réglé sur “PCM” (voir page 73, e Les contenus protégés (copy-prohibit) ne peuvent pas être copiés en numérique.
  • Page 86: Spécifications

    Généralités Système ....DVD vidéo, DVD audio, DVD-R/RW, Alimentation Modèle Europe ..... . 230 Vca 50 Hz Modèle Etats-Unis/Canada .
  • Page 87: Bloc-Diagramme

    Spindle Motor SACD CD・VCD Optical Pickup VRDS UNIT Driver RF Amp SACD Decoder Converter Front End Audio MPEG-2 Decorder Back End FRONT PANEL Display Bloc-diagramme Converter Converter Digital Filter Converter Converter Converter Digital SACD Filter Converter Converter Digital Filter Converter Video Encoder Converter...
  • Page 88 TEAC CORPORATION 3-7-3, Nakacho, Musashino-shi, Tokyo 180-8550, Japan Phone: (0422) 52-5081 TEAC AMERICA, INC. 7733 Telegraph Road, Montebello, California 90640 Phone: (323) 726-0303 TEAC CANADA LTD. 5939 Wallace Street, Mississauga, Ontario L4Z 1Z8, Canada Phone: (905) 890-8008 TEAC MEXICO, S.A. De C.V Campesinos N°184, Colonia Granjas Esmeralda, Delegacion Iztapalapa, CP 09810, México DF Phone: (525) 581-5500 TEAC UK LIMITED 5 Marlin House, Croxley Business Park, Watford, Hertfordshire, WD18 8TE, U.K.
