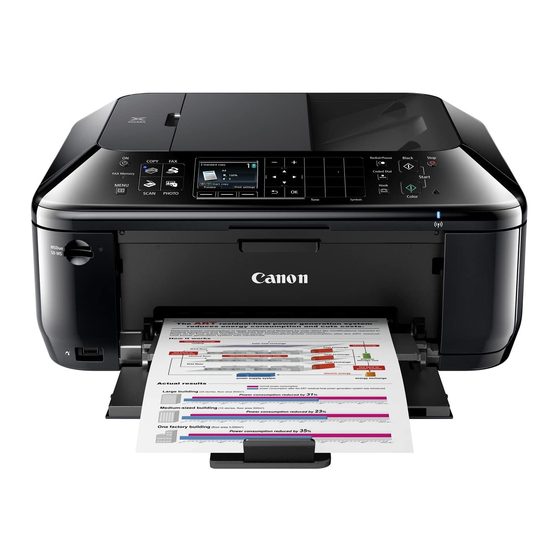

Canon PIXMA MX512 Specification

Mx510 series especificaciones [spanish version].
Hide thumbs


Advertisement

ENGLISH
Canon Inkjet Office All-In-One
Equipo multifunción para oficina Canon Inkjet
Specifications
General Specifications
Printing resolution (dpi)
4800* (horizontal) X 1200 (vertical)
* Ink droplets can be placed with a pitch of 1/4800 inch at minimum.
Interface
USB Port:
Hi-Speed USB *1
Direct Print Port:
PictBridge
Bluetooth v2.0 (Option) *2*3*4
USB flash drive
LAN Port:
Wired LAN: 100BASE-TX/10BASE-T
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b *5
*1 A computer that complies with Hi-Speed USB standard is required.
Since the Hi-Speed USB interface is fully upwardly compatible with
USB 1.1, it can be used at USB 1.1.
*2 Maximum speed: 1.44 Mbps
*3 JPEG/PNG only
*4 Bluetooth connection is for printing only.
*5 Setup possible through Standard setup, WPS (Wi-Fi Protected
Setup) or WCN (Windows Connect Now).
Print width
8 inches/203.2 mm (for Borderless Printing: 8.5 inches/216 mm)
Operating environment
Temperature: 5 to 35 °C (41 to 95 °F)
Humidity: 10 to 90 % RH (no condensation)
Storage environment
Temperature: 0 to 40 °C (32 to 104 °F)
Humidity: 5 to 95 % RH (no condensation)
Power supply
AC 100-240 V, 50/60 Hz
Power consumption
Printing (Copy): Approx. 18 W
Standby (minimum): Approx. 1.7 W *1*2
OFF: Approx. 0.4 W *1
*1 USB connection to PC
*2 The wait time for standby cannot be changed.
External dimensions
Approx. 18.1 (W) X 15.2 (D) X 7.9 (H) inches
Approx. 458 (W) X 385 (D) X 200 (H) mm
* With the Front Cover retracted.
Weight
Approx. 8.8 kg (Approx. 19.3 lb)
* With the FINE Cartridges installed.
Canon FINE Cartridge
Total 1792 nozzles (BK 640 nozzles, C/M/Y each 384 nozzles)
ADF capacity
A4 or Letter size: max. 30 sheets (20 lb/75 gsm paper), up to 0.16
inches/4 mm in height
Legal size: max. 5 sheets (20 lb/75 gsm paper), up to 0.04 inches/1
mm in height
Other sizes: 1 sheet
QT5-4837-V01
ESPAÑOL
MX510
Fax Specifications
Applicable line
Public Switched Telephone Network (PSTN)
Communication mode
Super G3, G3
Data compressing system
Black: MH, MR, MMR
Color: JPEG
Modem speed
max. 33.6 kbps
(Automatic fallback)
Transmission speed
Black: Approx. 3 seconds/page at 33.6 kbps
(Based on ITU-T No.1 chart for US specifications and Canon FAX
Standard chart No.1 for others, both in standard mode.)
Color: Approx. 1 minute/page at 33.6 kbps
(Based on Canon COLOR FAX TEST SHEET.)
Gradation
Black: 256 levels
Color: 24 bit Full Color (RGB each 8 bit)
Density adjustment
3 levels
Memory
Transmission/reception: approx. 50 pages
(Based on ITU-T No.1 chart for US specifications and Canon FAX
Standard chart No.1 for others, both in standard mode.)
Fax resolution
Black Standard: 203 pels/inch X 98 lines/inch (8 pels/mm X 3.85
lines/mm)
Black Fine, Photo: 203 pels/inch X 196 lines/inch (8 pels/mm X 7.70
lines/mm)
Black Extra Fine: 300 X 300 dpi
Color: 200 X 200 dpi
Dialing
Automatic dialing
Coded speed dial (max. 20 destinations)
Group dial (max. 19 destinations)
Regular dialing (with Numeric buttons)
Automatic redialing
Manual redialing (with the Redial/Pause button: max. 10 destinations)
Others
Activity report (after every 20 transactions)
Sequential broadcasting (max. 21 destinations)
Rejected numbers (max. 10 destinations)
XXXXXXXX
Copy Specifications
Multiple copy
max. 99 pages
series
Intensity adjustment
9 positions, Auto intensity (AE copy)
Reduction/Enlargement
25 % - 400 % (1 % unit)
K10375
Scan Specifications
Scanner driver
TWAIN/WIA (for Windows 7/Windows Vista/Windows XP)
Maximum scanning size
A4/Letter, 8.5" X 11.7"/216 X 297 mm (Platen Glass), 8.5" X 14.0"/216
X 356 mm (ADF)
Scanning resolution
Optical resolution (horizontal X vertical) max: 1200 X 2400 dpi *1
Interpolated resolution max: 19200 X 19200 dpi *2
*1 Optical Resolution represents the maximum sampling rate based
on ISO 14473.
*2 Increasing the scanning resolution will limit the maximum possible
scanning area.
Gradation (Input/Output)
Gray: 16 bit/8 bit
Color: 48 bit/24 bit (RGB each 16 bit/8 bit)
Network Specifications
Communication protocol
TCP/IP
Wired LAN
Supported Standards: IEEE802.3u (100BASE-TX)/IEEE802.3
(10BASE-T)
Transfer speed: 10 M/100 Mbps (auto switching)
Wireless LAN
Supported Standards: IEEE802.11n/IEEE802.11g/IEEE802.11b
Frequency bandwidth: 2.4 GHz
Channel: 1-11 or 1-13
* Frequency bandwidth and available channels differ depending on
country or region.
Transfer speed (Standard value):
IEEE802.11n: max. 150 Mbps
IEEE802.11g: max. 54 Mbps
IEEE802.11b: max. 11 Mbps
* These values are a theoretical maximum transmission speed
between the printer and an equivalent network device, and do not
indicate the actual transmission speed obtained.
Communication distance: Indoors 164 feet/50 m
* Effective range varies depending on the installation environment
and location.
Security:
WEP (64/128 bits)
WPA-PSK (TKIP/AES)
WPA2-PSK (TKIP/AES)
Setup:
Standard setup
WCN (WCN-UFD/WCN-NET)
WPS (Push button configuration/PIN code method)
Other Features: Administration password
©CANON INC.2012
CANON U.S.A. INC.
One Canon Plaza, Lake Success, NY 11042 U.S.A.
www.usa.canon.com/
Minimum System Requirements
Conform to the operating system's requirements when higher than
those given here.
Operating System/Processor/RAM
Windows 7, Windows 7 SP1
Mac OS X Lion 10.7
1 GHz or faster 32-bit (x86) or 64-
Intel Core 2 Duo, Core i3, Core i5,
bit (x64) processor
Core i7, or Xeon processor
1 GB (32-bit)/2 GB (64-bit)
2 GB
Windows Vista, Vista SP1, Vista
Mac OS X 10.6
SP2
Intel processor
1 GHz processor
1 GB
512 MB
Mac OS X 10.5.8
Windows XP SP2, SP3 32-bit only
Intel processor, PowerPC G5,
300 MHz processor
PowerPC G4 (867 MHz or faster)
128 MB
512 MB
Browser
Internet Explorer 6 or later
Safari 3 or later
Hard Disk Space
1.5 GB
2 GB
Note: For bundled software
Note: For bundled software
installation.
installation.
The necessary amount of hard disk
The necessary amount of hard
space may be changed without
disk space may be changed
notice.
without notice.
CD-ROM Drive
Required
Required
Display
SVGA 800 X 600
XGA 1024 X 768
A computer with a CD-ROM drive is required to setup the Wi-Fi
connection if the push button method is not used.
Windows: Operation can only be guaranteed on a computer with
Windows 7, Windows Vista or Windows XP pre-installed.
Windows: Uninstall software bundled with the Canon inkjet printer
before upgrading from Windows Vista to Windows 7, then install the
bundled software again.
Windows: Some functions may not be available with Windows Media
Center.
Windows: Internet Explorer 7, 8 or 9 is required to install Easy-
WebPrint EX.
Microsoft .NET Framework 4 Client Profile must be installed to use
Easy-WebPrint EX in Internet Explorer 9.
Macintosh: Hard Disk must be formatted as Mac OS Extended
(Journaled) or Mac OS Extended.
Macintosh: After upgrading from Mac OS X 10.6 to Mac OS X Lion
10.7, install software bundled with the Canon inkjet printer.
Macintosh: For Mac OS, an internet connection is required during
software installation.
Specifications are subject to change without notice.
About Consumables
Consumables (ink tanks / FINE Cartridges) are available for 5 years
after production of the machine has stopped.
PRINTED IN XXXXXXXX
