Frigidaire FPES3085KF - 30" Slide-In Smoothtop Electric Range Installation Instructions Manual

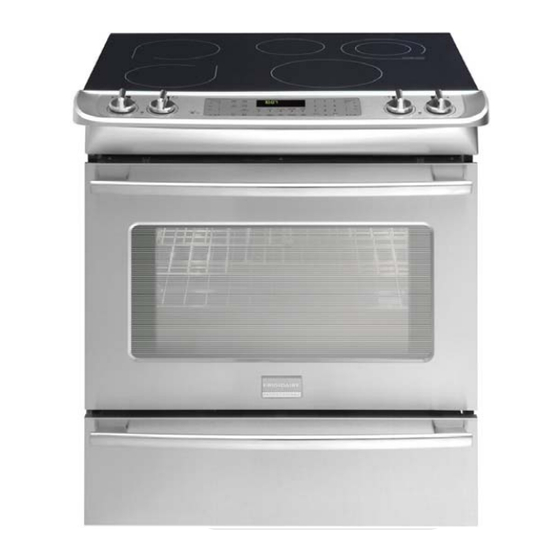

30-inch slide-in electric range
Hide thumbs
Also See for FPES3085KF - 30" Slide-In Smoothtop Electric Range:
- User manual (5 pages) ,
- Wiring diagram (2 pages) ,
- Use & care manual (44 pages)
Advertisement
Quick Links
FPES3085KF.jpg CFPES3085KFA.eps BFPES3085KFB.eps TFPES3085KFB.eps
DFPGS3085KFA.eps
318550103-1.eps 318550103-2.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Product No.
FPES3085KFB
37957376L95S2
Series
30" slide-in
Color
stainless
Market
North America
Wiring Diagram
318550103
Owner's Guide
318205803
Installation Instructions 318201616
Service Data Sheet
318127057
Publication No.
5995560231
10/02/25
(EN/SERVICE/ECL)
377
30-INCH SLIDE-IN
ELECTRIC RANGE
Model No.
FPES3085K
©
Copyright
2010 Electrolux Home Products, Inc.
All rights reserved.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Frigidaire FPES3085KF - 30" Slide-In Smoothtop Electric Range
Summary of Contents for Frigidaire FPES3085KF - 30" Slide-In Smoothtop Electric Range
- Page 1 Product No. FPES3085KFB 37957376L95S2 Series 30" slide-in Color stainless Market North America Wiring Diagram 318550103 Owner's Guide 318205803 Installation Instructions 318201616 Service Data Sheet 318127057 30-INCH SLIDE-IN FPES3085KF.jpg CFPES3085KFA.eps BFPES3085KFB.eps TFPES3085KFB.eps ELECTRIC RANGE DFPGS3085KFA.eps 318550103-1.eps 318550103-2.eps Electrolux Major Appliances Model No. North &...
- Page 2 Publication No: 5995560231 FPES3085KFB BACKGUARD CFPES3085KFA 02/10...
- Page 3 FPES3085KFB Publication No: 5995560231 BACKGUARD POS. NO PART NO. DESCRIPTION 19 # 318922144 Panel Assembly, control, stainless, w/overlay-trim 5304447071 Clip, console, (2) 20 # 316560143 Controller, electronic, ES530W3 318921300 Bracket, control mtg, (2) 318913101 Trim, vent, black, upper 318928500 Bracket, control panel, rear, (2) 316564406 Knob, control, stainless 318912907...
- Page 4 Publication No: 5995560231 FPES3085KFB BODY 02/10...
- Page 5 FPES3085KFB Publication No: 5995560231 BODY POS. NO PART NO. DESCRIPTION 318259224 Back, main 318225110 Panel, main back, upper 5303324184 Screw, 8-18 x 5/16, black, (4) 318258957 Shield, insulation, upper 318225210 Panel, bodyside, upper RH 318225211 Panel, bodyside, upper LH 318927600 Support, auto rack, (2) 318175508 Screw, leveling, w/tee nut...
- Page 6 Publication No: 5995560231 FPES3085KFB BODY 02/10...
- Page 7 FPES3085KFB Publication No: 5995560231 BODY POS. NO PART NO. DESCRIPTION 318561100 Receptacle, hinge, (2) 5304461333 Screw, 10-32 x 17/32 318260627 Bracket, cable mtg. 318111806 Plate, cord set mtg 89 # 318261221 Motor, latch assy 318296904 Panel, filler, black, RH 318296905 Panel, filler, black, LH 97A# 316442119...
- Page 8 Publication No: 5995560231 FPES3085KFB TOP/DRAWER 02/10...
- Page 9 FPES3085KFB Publication No: 5995560231 TOP/DRAWER POS. NO PART NO. DESCRIPTION 318304404 Drawer, body assembly 318300003 Panel, warmer drawer, side, (2) 318300301 Panel, warmer drawer, rear 318303907 Panel, drawer, black, inner 318298825 Panel, drawer, stainless, front 318259509 Glide, warmer, inner RH 318259508 Glide, warmer, inner LH 5304476994...
- Page 10 Publication No: 5995560231 FPES3085KFB DOOR DFPGS3085KFA 02/10...
- Page 11 FPES3085KFB Publication No: 5995560231 DOOR POS. NO PART NO. DESCRIPTION 318260401 Trim, oven door, side, (2) 318262101 Cover, rear door, black, (2) 318260522 Baffle, door 318372000 Insulation, door, (2) 318372002 Insulation, door, (2) 316117500 Glass, oven door, heat barrier 318411610 Liner, oven door 5304472906 Screw, handle mtg, #10-24 x 1.5, (2)
-
Page 12: Wiring Diagram
Publication No: 5995560231 FPES3085KFB WIRING DIAGRAM 02/10... - Page 13 FPES3085KFB Publication No: 5995560231 WIRING DIAGRAM 02/10 # Functional Parts * Non-Illustrated Parts...
