  • Page 1 USER’S MANUAL MANUEL DE L’UTILISATEUR MANUAL DEL USUARIO LVM-37w3se 1080p Monitor Moniteur 1080p...
  • Page 2 CONTENTS Contacting Westinghouse Digital • Log on to: www.westinghousedigital.com • Contact Westinghouse Customer Service at (866) 287-5555 or write us at service@westinghousedigital.com Owner’s Record The model and serial numbers are located @ the back of the Monitor. Keep a record of the numbers in the spaces provided below.

  • Page 3: Table Of Contents

    CONTENTS 1. PRODUCT SAFETY ................2 AFETY UIDELINES .............3 RODUCT AFETY NSTRUCTIONS 2. INSTALLATION ................4 ACKAGE ONTENTS 1080 ..........5 RONT IEW OF THE ONITOR 1080 ..........5 IEW OF THE ONITOR 1080 ..........6 IEW OF THE ONITOR ................7 EMOTE ONTROL ..................9 NSTALLATION 3.

  • Page 4: Product Safety

    PRODUCT SAFETY...

  • Page 5: Safety Guidelines

    Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the Westinghouse Service Center or an experienced technician for assistance. FCC Warning To assure continued FCC compliance, the user must use a grounded power supply cord and the provided shielded video interface cable with bonded ferrite cores.

  • Page 6: Product Safety Instructions

    • Always handle your LCD display with care when moving it. • If the monitor emits smoke, abnormal noise, or a strange odor, immediately turn it off and contact the Westinghouse Service Center.

  • Page 7: Installation

    INSTALLATION Package Contents Your product package includes: • 37” Westinghouse LCD 1080p Monitor • Remote Control (with batteries) • Power Cord • User’s Manual • Quick Connect Guide • Warranty Card...

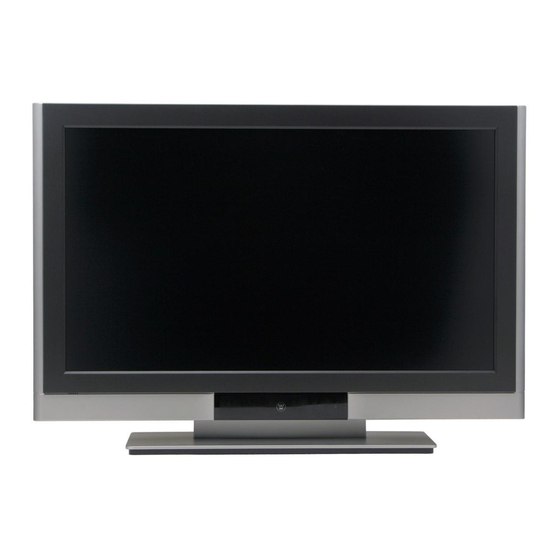

  • Page 8: Front View Of The 1080P Monitor

    INSTALLATION Front View of the 1080p Monitor Use the buttons on the right side of the 1080p Monitor or the buttons on the remote control to display the On Screen Display (OSD) menu and adjust the options. The OSD controls are defined in “OSD Functions”...

  • Page 9: Side View Of The 1080P Monitor

    INSTALLATION Side View of the 1080p Monitor 1. Menu Turn OSD Menu On or Off Increase/Decrease sound volume 2. Volume + / - adjust a highlighted control while in the OSD Menu. Highlight a control while in the OSD ( OSD Selection) Menu.

  • Page 10: Side Connectors

    INSTALLATION SIDE CONNECTORS 1. HDMI Connect to an external HDMI device such as a cable/satellite receiver or DVD player. 2. DVI (HDCP) / Audio (Left / Right) Connect to an external DVI-HDCP device such as a DVD, cable/satellite receiver, or computer. 3.
  • Page 11 INSTALLATION Use the Remote Control to adjust your Westinghouse 1080p Monitor. 1. POWER: Switch to DVI1 source Switch the power on/off 24. Video: 2. MUTE: Switch directly to Video source Turn the sound on/off 25. S-Video: 3. PIP: Switch directly to S-Video source Display Picture-In-Picture 4.
  • Page 12 INSTALLATION Installation 1. Insert Remote Control Batteries 1) Remove the battery cover. 2) Insert the batteries corresponding to the (+) and (−) marks on the battery compartment. 3) Re-attach the battery cover. CAUTION: • Only use AAA batteries. • Do not mix new and old batteries. This may result in cracking or leakage, which may pose a fire risk or lead to personal injury.
  • Page 13 INSTALLATION 2. Connect the 1080p Monitor to a computer Connect a VGA or DVI cable and an audio cable to the back of the 1080p Monitor. IMPORTANT: Before you begin, make sure all devices are turned off. VGA CONNECTION: Connect an analog VGA cable from your computer VGA OUT port to the 1080p Monitor VGA IN port.

  • Page 14: Remote Control

    INSTALLATION 5. Turn on your computer The 1080p Monitor will auto adjust to the resolution of the computer. For the best picture quality, set the PC timing mode to 1920 x 1080 at 60Hz, then turn off and reboot the computer. Refer to your computer’s graphic card user guide for questions on how to set this timing mode.

  • Page 15: Osd Function

    OSD FUNCTION On-Screen Display (OSD) Function To display the OSD main menu, press the Menu button on the right side of the 1080p Monitor or the MENU key on the remote control. Use the ▲/▼ arrow keys to scroll up and down the OSD main menu.

  • Page 16: Picture

    OSD FUNCTION Picture Function Name Function 1. Brightness Adjust the black level of the display. 2. Contrast Adjust the white level of the display. 3. Saturation Adjust the intensity of the colors. 4. Hue Adjust the color towards either red or green. 5.

  • Page 17: Pc Parameters

    OSD FUNCTION PC Parameters (VGA Only) Function Name Function Automatically re-centers the image to the middle of the screen 1. Auto Adjust by synchronizing both vertical and horizontal refresh rate and resolution. 2. Clock Clock adjustment 3. Phase Adjust the Phase control to eliminate horizontal streaking. 4.

  • Page 18: Audio

    OSD FUNCTION Audio Function Name Function 1. Volume Volume adjustment 2. Bass Bass adjustment 3. Treble Treble adjustment 4. Balance Balance adjustment 5. Mute Turn audio On or Off 6. Speaker Select internal or external speakers 7. Reset Reset audio settings...

  • Page 19: Picture-In-Picture

    OSD FUNCTION Picture-in-Picture Function Name Function Select display options: 1. Display Mode Off, PIP, PBP, POP Select main screen source: 2. Main Source VGA, HDMI, DVI, AV, S-Video, YPbPr1, YPbPr2 Select PIP sub-screen source: 3. PIP Source VGA, HDMI, DVI, AV, S-Video, YPbPr1, YPbPr2 4.

  • Page 20: General Settings

    OSD FUNCTION General Settings Function Name Function 1. Menu Position OSD Menu horizontal/vertical position adjustment Set the amount of time before the OSD disappears. • 10 seconds 2. Menu Timeout • 30 seconds • 60 seconds Select the OSD language: 3.

  • Page 21: Appendix

    APPENDIX Troubleshooting No Power • Make sure the power cord is securely connected to the AC In jack on the back of the 1080p monitor. • Make sure the AC power cord is securely connected to the AC socket. • Plug another electrical device (such as a radio) to the power outlet to verify that the outlet is supplying the proper voltage.
  • Page 22 • Press MUTE on the remote control, so that MUTE disappears from the screen. • Press the Volume + (Up) key on the remote control. How Can I Find More Help? • Log on to: www.westinghousedigital.com • Contact Westinghouse Customer Service at (866) 287-5555 or write us at service@westinghousedigital.com...

  • Page 23: Cleaning The 1080P Monitor

    Westinghouse Digital does not recommend the use of any ammonia or alcohol-based cleaners on the 1080p monitor screen or case. Some chemical cleaners have been reported to damage the screen and or 1080p monitor case. Westinghouse Digital will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.

  • Page 24: Specifications

    APPENDIX Specifications Model Name LVM-37w3se 37" TFT (Thin Film Transistor), Active Matrix LCD, 1920*1080 vertical Panel Type stripe Color Anti-glare coating Viewing Angles 176° (H) / 176° (V) (typ.) Input Signal Video/Audio RGB Analog * 1 (75 ohms, 0.7 Vp-p)/Mini-Stereo *1 - H/V separated (TTL) for PC HDMI-HDCP * 1 DVI-D * 1 (HDCP support) / RCA (L/R)
  • Page 25 Westinghouse Digital Electronics Santa Fe Springs, CA SE-UM-3703-0701...
