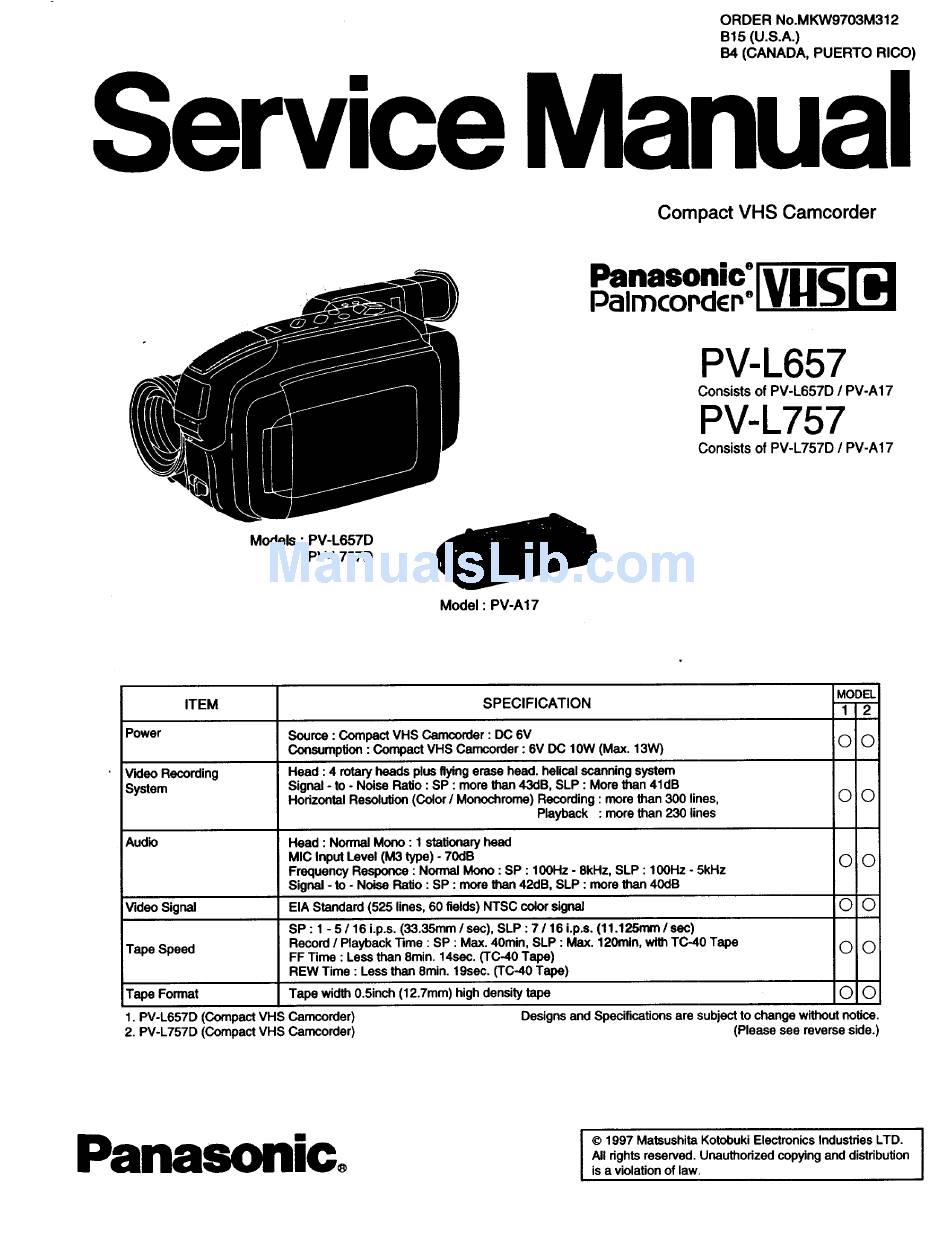

ORDER No.MKW9703M312
B15 (U.S.A.)
B4 (CANADA, PUERTO RICO)
ServiceManual
Compact VHS Camcorder
Panasonic'
PalmcordcP'! l
PV-L657
Consists of PV-L657D / PV-A17
PV-L757
Consists of PV-L757D / PV-A17
Models : PV-L657D
PV-L757D
Model : PV-A17
MODEL
ITEM
SPECIFICATION
1
2
Power
Source : Compact VHS Camcorder : DC 6V
(_) O
Consumption : Compact VHS Camcorder : 6V I)(3 10W (Max. 13W)
V'KleORecording
Head : 4 rotary heads plus flying erase head. helical scanning system
System
Signal - to - Noise Ratio : SP : more than 43dB, SLP : More than 41dB
Hodzontal Resolution (Color / Monochrome) Recording : more than 300 lines,
(_) (_
Playback
: more than 230 lines
Audio
Head : Normal Mono : 1 stationary head
MIC Input Level (M3 type) - 70dB
(_)
Frequency Responoe : Normal Mono : SP : 100Hz - 8kHz, SLP : 100Hz - 5kHz
Signal - to - Noise Ratio : SP : more than 42dB, SLP : more than 40dB
iVideo Signal
EIA Standard (525 lines, 60 fields) NTSC color signal
(_
O
SP : 1 - 5 / 16 i.p.s. (33.35mm /sec), SLP : 7 / 16 i.p.s. (11.125mm / sec)
Record / Playback "13me: SP : Max. 40min, SLP : Max. 120rain, with TC-40 Tape
(_) (_)
Tape Speed
FF Time : Less than 8min. 14sec. (TC-4O Tape)
REW Time : Less than 8min. 19sec. (TC-40 Tape)
Tape Format
Tape width O.5inch (12.7mm) high density tape
_
1. PV-L657D (Compact VHS Camcorder)
Designs and Specifications are subject to change without notice.
2. PV-L757D (Compact VHS Camcorder)
(Please see reverse side.)
Panasonico
© 1997 Matsushita Kotobuki Electronics Industries LTD.
All rights reserved. Unauthorized copying and distribution
is a violation of law.
