Summary of Contents for LG W2286L

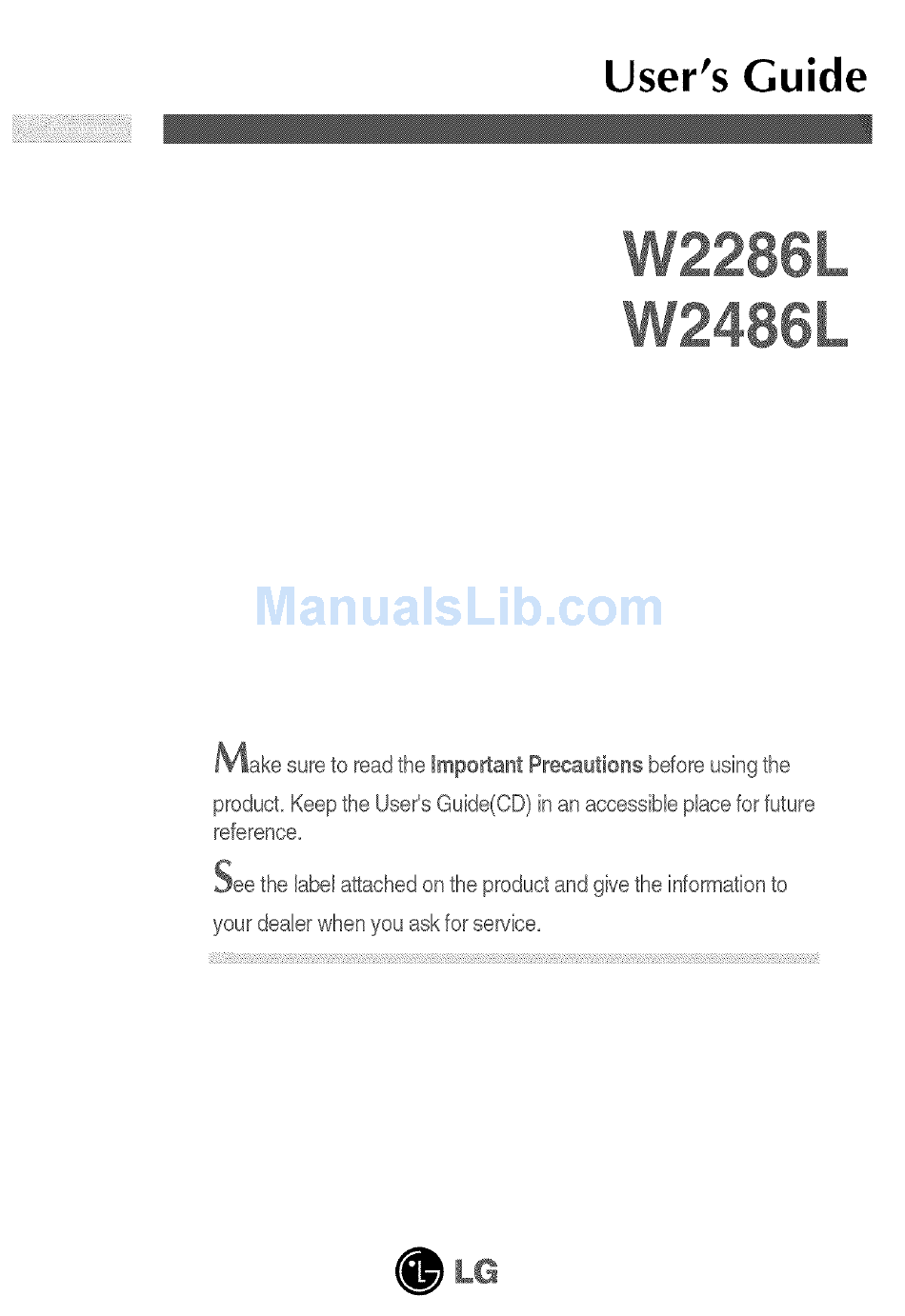

- Page 1 User's Guide _V_akesureto read the Impo_ant Precautions beforeusingthe product.Keep the User'sGuide(CD)in an accessibleplacefor future reference. See the label attachedon the product and give the informationto your dealer whenyou ask for service,...
- Page 2 This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing.
- Page 3 On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage, Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool,...
- Page 4 On Cleaning • Unplug the display before cleaning the face of the display screen, • Use a slightly damp (not wet) cloth, Do not use an aerosol directly on the display screen because over-spraying may cause electrical shock, • When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching, Do not clean with a wet cloth or spray water or other liquids directly onto the product, An electric shock may occur, (Do not use chemicals such as benzene, paint thinners or alcohol)
- Page 5 !!! Thank for selecting LGE products !!! • Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Power Cord User's Guide/Cards 15-pin D-Sub Signal Cable DVI-D Signal Cable (Toset it up, this signal cable may (Thisfeature is not available be attached to this product before in all countries.)
- Page 6 • Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Connecting and Disassembling the stand Place the monitor face down on the soft cloth. Assemble the Stand Base into the Stand Body in the correct direction. Make sure you push the Stand Base until the end.
- Page 7 Turn the screw to the right to fix the Stand Body to the Stand Base. Screw Turn the screw by using the screw handle. 4, Then fold the screw handle flat. 5, Once assembled take the monitor up carefully and face the front side. To disconnect the Stand Base from the Stand Body, unfold the screw handle and turn it to the left.
-
Page 8: Positioning Your Display
• Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Positioning your display After installation, adjust the angle as shown below. Adjust the position of the panel in various ways for maximum comfort. - Page 9 Connecting with the PC/AV equipment Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. 2. Connect the signal cable @. When attached, tighten the thumbscrews to secure the connection.
- Page 10 4, Gather the cables together and use the Cable Holder to arrange them as shown in the picture. !i:¸ Cable Holder 5, Press the Power Button ((_) on the front panel to turn the power on. When monitor power is turned on, the 'Self Image Setting Function' is executed automatically. (Only for D-SUB input)
-
Page 11: Front Panel Controls
Front Panel Controls srnOrt Button Use this button to enter CINEMA MODE, AUTO BRIGHT, TIME CONTROL, LIVE SENSOR or SMART menus. For more information, refer to page 16. F:U£1 Button Use this button to move to EZ ZOOMING, 4:3 IN WIDE and PHOTO EFFECT for D-SUB/DVI-D signal input. -
Page 12: Auto Image Adjustment
A Buttons Use these b uttonsselect functions inthe On adjust Screen Display. Use this function to select optimal image conditions in .,f.ENGINE • accordance with the surrounding environment (Brightness, Image type). For more information, refer to page 19. SOURCE • During initial input, the input signal connected is automatically recognized. - Page 13 power stays displayrunning PowerIndicator The indicator redifthe properly (On Mode). Ifthe display isinSleep M ode (Energy Saving), the power indicator isblinking red. Light Sensor This is the sensor to measure the external brightness. Makes the screen brighter or darker, depending on the surrounding brightness, when AUTO BRIGHT is set to ON.
-
Page 14: Screen Adjustment
Screen Adjustment Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control system. A short example is given below to familiarize you with the use of the controls. - Page 15 The following table indicates all the On Screen Display control, adjustment, and setting menus. : D-SUB(Analog signal) input DVI-D(Digital signal)input HDMI input To focus on the moving picture selected To control screen brightness automatically To notify the user of a specified time To turn the live sensor of the touch button LED on oroff...
- Page 16 MOVIE To select or customize desired image settings To adjust the brightness, contrast and gamma ofthe screen LANGUAGE To customize the screen status OSD P OSITION for a use¢s operating environment...
-
Page 17: Cinema Mode
smOrt The OSD screen will appear when you press the button on the front of the monitor. CONTR©/o • MENU:Exit, • • •:Move, • SET :Select CINEMA MODE To focus on the moving picture selected. This function adjusts the brightness of areas other than the user-selected area to provide an environment and image quality optimized for videos or moving picture on the web browser. - Page 18 ,_;nnThe OSD screen will appear when you press the FUN button on the front of the monitor. D-SUB/DVI-D input • MENU : Exit • • • : Move • SET :Select HDMI input EZ ZOOMING To select the display resolution. When you select 'EZ ZOOMING' in OSD, display resolution goes one step down so characters and images look bigger.
- Page 19 To select the color effects of the screen. PHOTO EFFECT • NORMAL The PhotoEffect function is disabled. • GAUSSIAN BLUR Use the AUTO/SET button This menu changes the screen to be more to go to sub-menu. colorful and smoother. !_ PHoTo EFFECT •...
- Page 20 The OSD screen will appear when you touch the button on the left bottom jI_ENGINE of the monitor. These features let you easily select the best desired image condition optimized to the environment (ambient illumination, image types etc). • MENU •Save & Exit •...
- Page 21 D-SUB/DVI-D input DEMO This is usedfor advertisingin the store. The screen will be dividedto show the standard mode on the left andvideo mode on the rightso that the consumerscan check the differenceafter applying the video mode. SPORTS Selectthis when you watching generalsports. This allows users to adjust ACE, RCM (Only for D-SUB/DVI-D input), HUE or SATURATION (Only for HDMI input).
- Page 22 _ • You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descriptions of the all items shown on the Menu. Press the MENU Button, then the main menu of the OSD appears.
- Page 23 PICTURE D-SUB/DVI-D input BRIGHTNESS To adjust the brightness of the screen. CONTRAST To adjust the contrast of the screen. GAMMA Set your own gamma value. : -50 / 0 / 50 On the monitor, high gamma values display whitish images and low gamma values display blackish images.
- Page 24 TRACKING HORIZONTAL To move image left and right. VERTICAL To move image up and down. CLOCK To minimize any vertical bars or stripes visible on the screen background. The horizontal screen size will also change. PHASE To adjust the focus of the display. This item allows you to remove any horizontal noise and clear or sharpen the image of characters.
- Page 25 SETUP LANGUAGE To choose the language in which the control names are displayed. To adjust position of the OSD window on the POSITION screen. WHITE If the output of the video card is different the BALANCE required specifications, the color level may deteriorate due to video signal distortion.
- Page 26 Check the following before calling for service. @Is the power cord of the • Check and see ifthe power cord is connected display connected? properly to the power outlet. • Press the Power button. @Is the power indicator light on? @Is the power on and the •...
- Page 27 @Display Position is • Press the AUTO/SET button to automatically incorrect. adjust your display image to the idealsetting. If the results are unsatisfactory, adjust the image position using the H position and V position icon in the on screen display. @On the screen •...
- Page 28 @The screen color is • Checkif thesignalcable is properlyconnected mono or abnormal. and use a screwdriverto fasten if necessary. • Make surethe video card is properlyinsertedin the slot. • Setthe color settinghigherthan 24 bits (truecolor) at Control Panel- Settings. @The screen blinks. •...
- Page 29 21.995 inches _55.8673 cm) Flat Panel Active matrix-TFT LCD Anti-Glare coating Visible diagonal size : 55.8673 cm 0.282 x 0.282 mm (Pixel Pitch) 30 - 83 kHz (Automatic) Horizontal Freq. Vertical Freq. 56 - 75 Hz (Automatic_ Input Form Separate Sync. SOG (Sync On Green), Digita Signal Input 15 pin D-Sub Connector (Analog)
- Page 30 24 inches (60.97 cm) Flat Panel Active matrix-TFT LCD Anti-Glare coating Visible diagonal size : 60.97 cm 0.2767 x 0.2767 mrr _Pixel Pitch) Horizontal Freq. 30 - 83 kHz (Automatic) Vertical Freq. 56 - 75 Hz (Automatic) nput Form Separate Sync. SOG (Sync On Green), Digital Signal Input 15 pin D-Sub Connector (Analog)
-
Page 31: Preset Modes (Resolution)
Preset Modes (Resolution)- D-sub(Analog) / DVI-D(Digital) INPUT W2286L 720 X 400 31.468 VESA 640 x 480 31.469 VESA 640 x 480 37.500 VESA 800 x 600 37.879 VESA 800 x 600 46.875 VESA 1024 x 768 48.363 VESA 1024 x 768 60.123 VESA 1152 x 864... -
Page 32: Hdmi Vedio Input
HDMI Vedio INPUT 48op 31,5o 576p 31,25 72oP 37,50 72op 45,00 lO8Oi 28,12 lO8Oi 33,75 lo8oP 56,25 lo8oP 67,50 Indicator On Mode Sleep Mode Red Blinking Off Mode... - Page 33 D[gffa[[y yours oooooooo...
