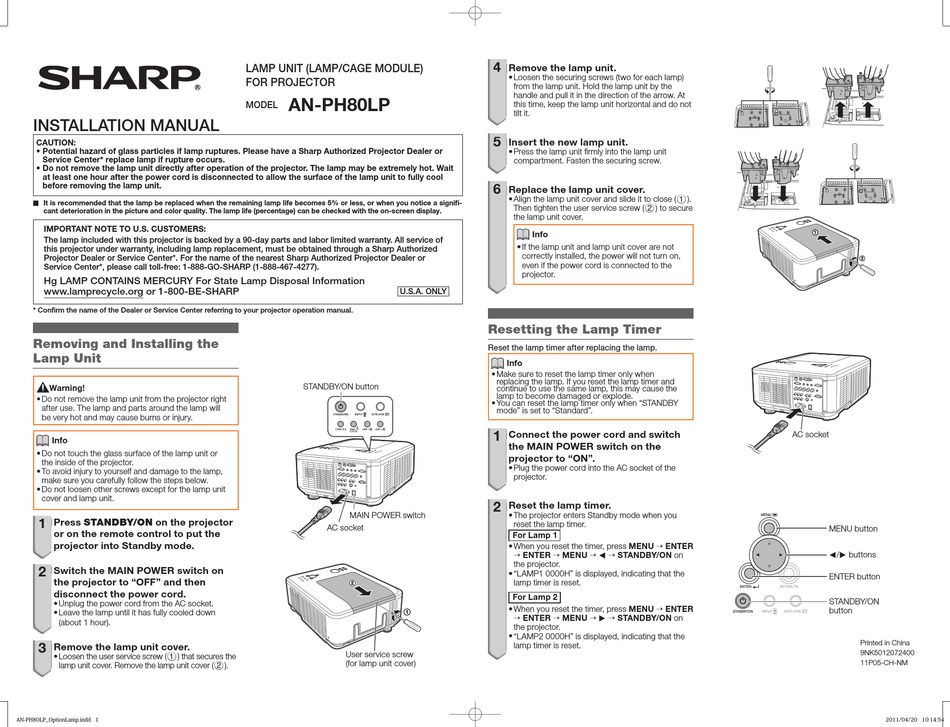

INSTALLATION MANUAL
CAUTION:
• Potential hazard of glass particles if lamp ruptures. Please have a Sharp Authorized Projector Dealer or
Service Center* replace lamp if rupture occurs.
• Do not remove the lamp unit directly after operation of the projector. The lamp may be extremely hot. Wait
at least one hour after the power cord is disconnected to allow the surface of the lamp unit to fully cool
before removing the lamp unit.
■ It is recommended that the lamp be replaced when the remaining lamp life becomes 5% or less, or when you notice a signifi -
cant deterioration in the picture and color quality. The lamp life (percentage) can be checked with the on-screen display.
IMPORTANT NOTE TO U.S. CUSTOMERS:
The lamp included with this projector is backed by a 90-day parts and labor limited warranty. All service of
this projector under warranty, including lamp replacement, must be obtained through a Sharp Authorized
Projector Dealer or Service Center*. For the name of the nearest Sharp Authorized Projector Dealer or
Service Center*, please call toll-free: 1-888-GO-SHARP (1-888-467-4277).
Hg LAMP CONTAINS MERCURY For State Lamp Disposal Information
www.lamprecycle.org or 1-800-BE-SHARP
* Confi rm the name of the Dealer or Service Center referring to your projector operation manual.
Removing and Installing the
Lamp Unit
Warning!
Do not remove the lamp unit from the projector right
after use. The lamp and parts around the lamp will
be very hot and may cause burns or injury.
Info
Do not touch the glass surface of the lamp unit or
the inside of the projector.
To avoid injury to yourself and damage to the lamp,
make sure you carefully follow the steps below.
Do not loosen other screws except for the lamp unit
cover and lamp unit.
1
1
Press STANDBY/ON on the projector
or on the remote control to put the
projector into Standby mode.
2
2
Switch the MAIN POWER switch on
the projector to "OFF" and then
disconnect the power cord.
Unplug the power cord from the AC socket.
Leave the lamp until it has fully cooled down
(about 1 hour).
3
3
Remove the lamp unit cover.
Loosen the user service screw (1) that secures the
lamp unit cover. Remove the lamp unit cover (2).
LAMP UNIT (LAMP/CAGE MODULE)
FOR PROJECTOR
AN-PH80LP
MODEL
U.S.A. ONLY
STANDBY/ON button
MAIN POWER switch
AC socket
User service screw
(for lamp unit cover)
4
4
Remove the lamp unit.
Loosen the securing screws (two for each lamp)
from the lamp unit. Hold the lamp unit by the
handle and pull it in the direction of the arrow. At
this time, keep the lamp unit horizontal and do not
tilt it.
5
5
Insert the new lamp unit.
Press the lamp unit fi rmly into the lamp unit
compartment. Fasten the securing screw.
6
6
Replace the lamp unit cover.
Align the lamp unit cover and slide it to close (1).
Then tighten the user service screw (2) to secure
the lamp unit cover.
Info
If the lamp unit and lamp unit cover are not
correctly installed, the power will not turn on,
even if the power cord is connected to the
projector.

Resetting the Lamp Timer

Reset the lamp timer after replacing the lamp.
Info
Make sure to reset the lamp timer only when
replacing the lamp. If you reset the lamp timer and
continue to use the same lamp, this may cause the
lamp to become damaged or explode.
You can reset the lamp timer only when "STANDBY
mode" is set to "Standard".
1
1
Connect the power cord and switch
the MAIN POWER switch on the
projector to "ON".
Plug the power cord into the AC socket of the
projector.
2
2
Reset the lamp timer.
The projector enters Standby mode when you
reset the lamp timer.
For Lamp 1
When you reset the timer, press MENU → ENTER
→ ENTER → MENU → O → STANDBY/ON on
the projector.
"LAMP1 0000H" is displayed, indicating that the
lamp timer is reset.
For Lamp 2
When you reset the timer, press MENU → ENTER
→ ENTER → MENU → Q → STANDBY/ON on
the projector.
"LAMP2 0000H" is displayed, indicating that the
lamp timer is reset.
AC socket
MENU button
O/Q buttons
ENTER button
STANDBY/ON
button
Printed in China
9NK5012072400
11P05-CH-NM
