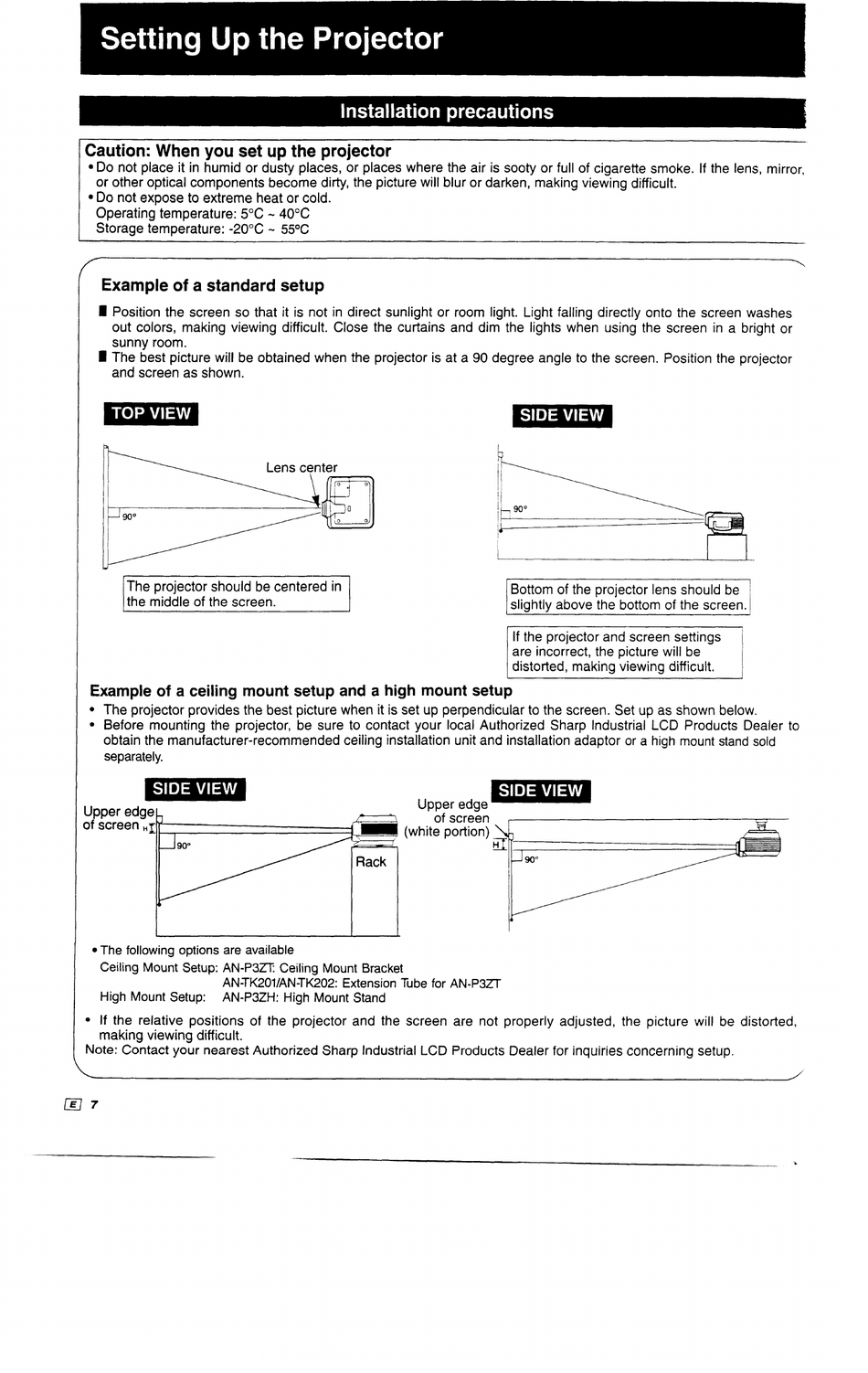

Setting Up The Projector - Sharp SharpVision XV-370H Operation Manual

Caution: When you set up the projector
l
Do not place it in humid or dusty places, or places where the air is sooty or full of cigarette smoke. If the lens, mirror.
or other optical components become dirty, the picture will blur or darken, making viewing difficult.
l
Do not expose to extreme heat or cold.
Operating temperature: 5°C - 40°C
Storage temperature: -20% - 55%
/ \
Example of a standard setup
I Position the screen so that it is not in direct sunlight or room light. Light falling directly onto the screen washes
out colors, making viewing difficult. Close the curtains and dim the lights when using the screen in a bright or
sunny room.
m The best picture will be obtained when the projector is at a 90 degree angle to the screen. Position the projector
and screen as shown.
Lens center
~
10
0
9o"
!K
II
0 0
The projector should be centered in
the middle of the screen.
Bottom of the projector lens should be
slightly above the bottom of the screen.
If the projector and screen settings
are incorrect, the picture will be
distorted, making viewing difficult.
Example of a ceiling mount setup and a high mount setup
l
The projector provides the best picture when it is set up perpendicular to the screen. Set up as shown below.
l
Before mounting the projector, be sure to contact your local Authorized Sharp Industrial LCD Products Dealer to
obtain the manufacturer-recommended ceiling installation unit and installation adaptor or a high mount stand sold
separately.
Upper edge
B
(white portion)
Of Screen aa
I
l
The following options are available
Ceiling Mount Setup: AN-P3ZT Ceiling Mount Bracket
AN-TK20VAN-TK202: Extension Tube for AN-P3n
High Mount Setup: AN-P3ZH: High Mount Stand
l
If the relative positions of the projector and the screen are not properly adjusted, the picture will be distorted,
making viewing difficult.
Note: Contact your nearest Authorized Sharp Industrial LCD Products Dealer for inquiries concerning setup.
,
