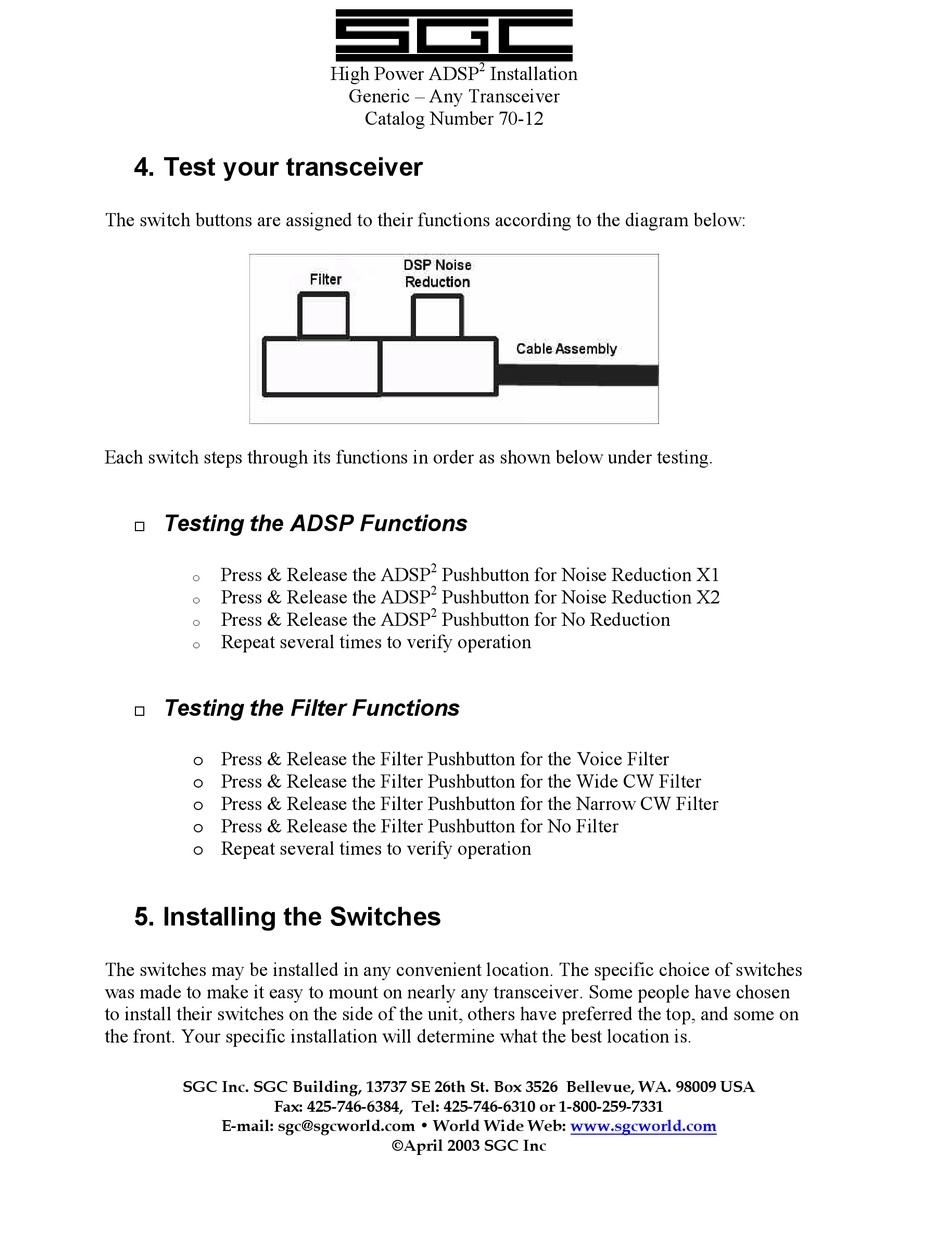

4. Test your transceiver

The switch buttons are assigned to their functions according to the diagram below:
Each switch steps through its functions in order as shown below under testing.
Testing the ADSP Functions
¨
Press & Release the ADSP
o
Press & Release the ADSP
o
Press & Release the ADSP
o
Repeat several times to verify operation
o
Testing the Filter Functions
¨
o Press & Release the Filter Pushbutton for the Voice Filter
o Press & Release the Filter Pushbutton for the Wide CW Filter
o Press & Release the Filter Pushbutton for the Narrow CW Filter
o Press & Release the Filter Pushbutton for No Filter
o Repeat several times to verify operation

5. Installing the Switches

The switches may be installed in any convenient location. The specific choice of switches
was made to make it easy to mount on nearly any transceiver. Some people have chosen
to install their switches on the side of the unit, others have preferred the top, and some on
the front. Your specific installation will determine what the best location is.
