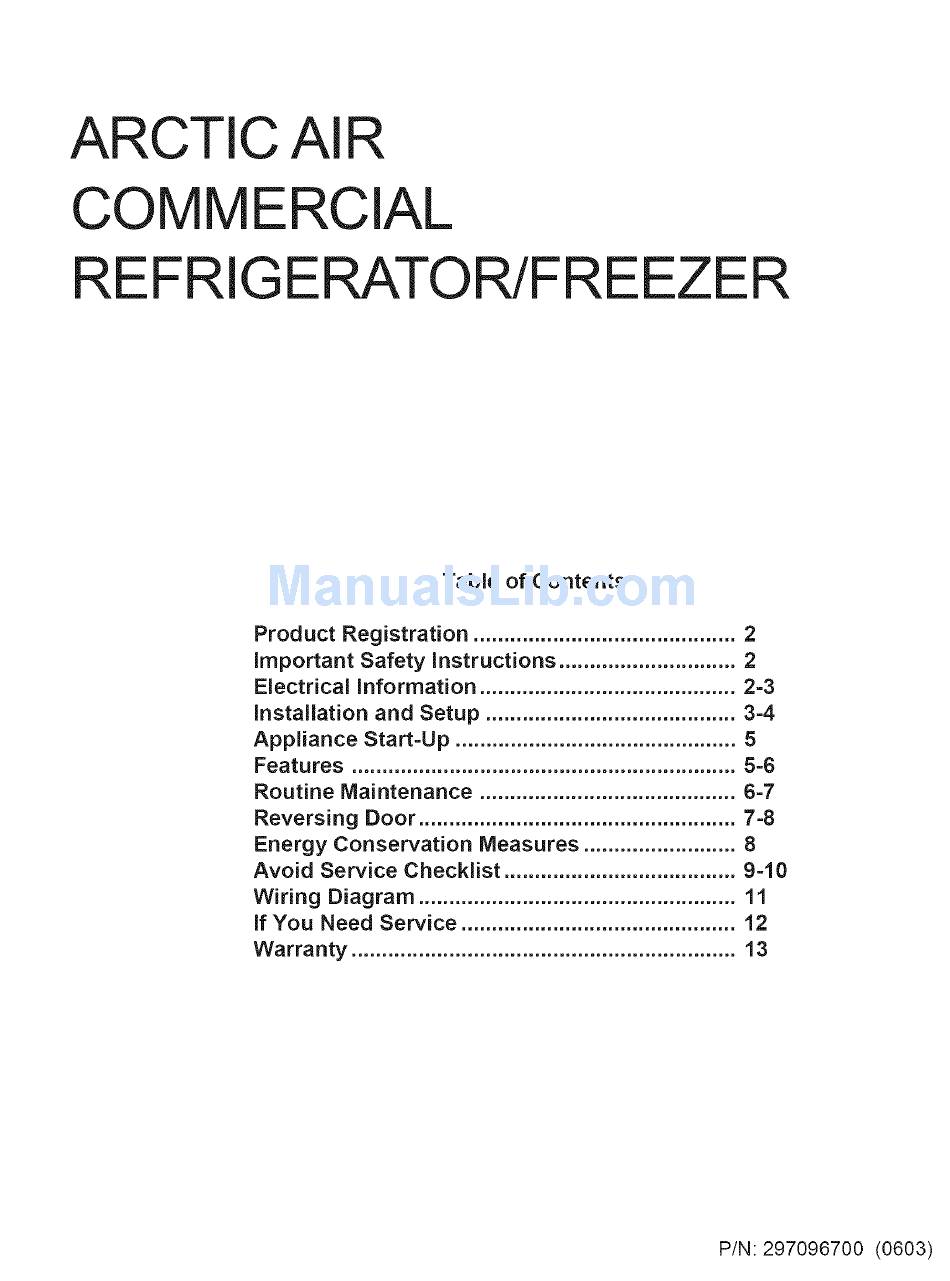

ARCTIC AIR
COMMERCIAL
REFRIGERATOR/FREEZER
Table of Contents
Product Registration
...........................................
2
Important
Safety
Instructions
.............................
2
Electrical
Information
..........................................
2-3
Installation
and Setup .........................................
3-4
Appliance
Start-Up
..............................................
5
Features
...............................................................
5-6
Routine
Maintenance
..........................................
6-7
Reversing
Door ....................................................
7-8
Energy
Conservation
Measures
.........................
8
Avoid Service
Checklist
......................................
9-10
Wiring
Diagram
....................................................
11
If You Need Service
.............................................
12
Warranty
...............................................................
13
P/N: 297096700
(0603)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 297096700 (0603 and is the answer not in the manual?

Questions and answers

Related Manuals for Arctic Air 297096700 (0603

Summary of Contents for Arctic Air 297096700 (0603

  • Page 1: Table Of Contents

    ARCTIC AIR COMMERCIAL REFRIGERATOR/FREEZER Table of Contents Product Registration ........... Important Safety Instructions ......Electrical Information .......... Installation and Setup ......... Appliance Start-Up ..........Features ............... Routine Maintenance .......... Reversing Door ............ Energy Conservation Measures ......Avoid Service Checklist ........

  • Page 2: Product Registration

    Remove the door(s) of any appliance that is not in use, Product Registration even if it is being discarded. Remove and discard any spacers used to secure the shelves during shipping. Small objects are a choke Proper Disposal of Your Refrigerator/Freezer Risk of child entrapment.

  • Page 3: Installation And Setup

    TOOLS NEEDED • Refer to the serial plate for correct electrical rating. The power cord of the appliance is equipped with a You will need the following tools to assemble and install the casters to the unit. three-prong grounding plug for protection against shock hazards.
  • Page 4 FRONT FIXED CASTER INSTALLATION REAR SWIVEL CASTER INSTALLATION • Put two (2) carriage bolts through the rear (non-brake) • Place a washer on one of the four long bolts and then feed side of the fixed caster and hold the carriage bolts loosely the bolt through the hole in one of the swivel...

  • Page 5: Appliance Start-Up

    Appliance Start-Up Once the appliance has been located in its permanent location and the proper power and grounding has been provided, the following items must be checked or completed: Cool Down Period For safe food storage, allow 24 hours for the appliance Figure A Figure B to cool down completely before loading with food.

  • Page 6: Routine Maintenance

    Wipe the stainless steel leftpanel i nside theunit, cover plates with Magic Clean Stainless Steel Cleaner (can be ordered from your Arctic Air Service Center at 1-800-490-9574 / PIN 218490900) or some other stainless steel cleaner.

  • Page 7: Reversing Door

    CondensatePan Remove top screw from bottom hinge. Remove toF Thecondensate panis ina fixedposition andmustnot screw from opposite side of appliance. beremoved f romunder t hecabinet. I fthepanis removed, condensate w illdripontothefloor. Reversing Door This appliance features a door that can provide either a left hand or right hand opening.

  • Page 8: Energy Conservation Measures

    9, Rotate thetophinge toalignthemounting Energy Conservation Measures holes.Re-position thefiatspacer b etween thehinge andcabinet andinstall t hethree(3)hexhead The appliance is designed for efficiency with heavy screws, foam insulation. However, there are things that the 10, Install h oleplugsineachofthehingeholes on user can do to maintain the appliance in operating opposite sideofcabinet, condition: 11.

  • Page 9: Avoid Service Checklist

    Avoid Service Check st Before calling for service, review this list. It may save you both time and expense. This list includes common occurrences that are not the result of defective workmanship or materials this appliance. OCCURRENCE SOLUTION APPLIANCE DOES NOT RUN •...
  • Page 10 OCCURRENCE SOLUTION SOUND AND NOISE Louder sound levels whenever Today's appliances have increased storage capacity and a more even temperature appliance is on. They require a high speed compressor. This is normal. Louder sound levels when Appliance operates at higher pressures during the start ofthe ON cycle. This is normal compressor comes on.

  • Page 11: Wiring Diagram

    Wiring Diagrams Refrigerator Electrical Circuit Powel Capacitor_._ Compressor I//-Ye' Controller_. -L_._C_'_ " iMPORTANT If any green grounding wires are removed during servicing, they must be returned to their original position and properly secured. Door Switch EC79 r ....Overload Freezer Electrical Circuit Power...

  • Page 12: If You Need Service

    This written warranty gives you specific legal rights. You may also have other rights that vary from state to state. Service under this warranty must be obtained by contacting the Arctic Air Customer Service Center In the United States •...

  • Page 13: Warranty

    ( in the United States and Puerto Rico ) and 1-866-294-9911 ( in Canada ). LABOR WARRANTY ARCTIC AIR will, at its option, provide or pay for the labor to repair or replace the part(s) or product defect during the warranty period. Warranty labor must be arranged by calling the Customer Service Center at 1-800-490-9574 ( in the United States and Puerto Rico ) and 1-866-294-9911 ( in Canada ).
