Asus VX1 Hardware User Manual

Notebook pc
Hide thumbs Also See for VX1:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Notebook PC
Hardware User's Manual
E2554b / Nov 2005

Advertisement

Table of Contents
loading

Related Manuals for Asus VX1

Summary of Contents for Asus VX1

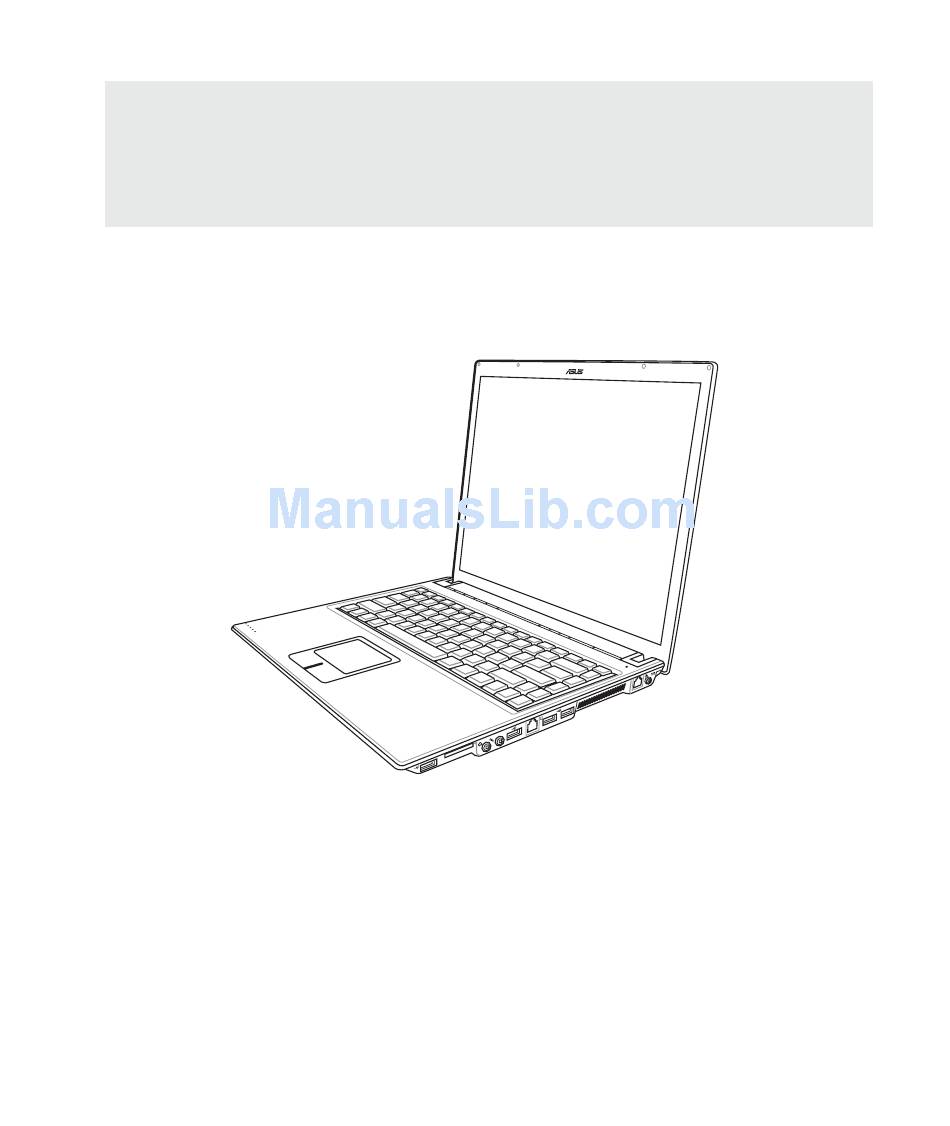

  • Page 1 Notebook PC Hardware User’s Manual E2554b / Nov 2005...

  • Page 2: Safety Statements

    Safety Statements Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undes- ired operation.

  • Page 3: Macrovision Corporation Product Notice

    Safety Statements Nordic Cautions (for Notebook PC with Lithium-Ion Battery) CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. (English) ATTENZIONE! Rischio di esplosione della batteria se sostituita in modo errato.
  • Page 4 Safety Statements Safety Statements The following safety precautions will increase the life of the Notebook PC. Follow all precautions and instructions. Except as described in this manual, refer all servicing to qualified personnel. Do not use damaged power cords, accessories, or other peripherals. Do not use strong solvents such as thinners, benzene, or other chemicals on or near the surface.

  • Page 5: Transportation Precautions

    Safety Statements Transportation Precautions To prepare the Notebook PC for transport, you should turn it OFF and discon- nect all external peripherals to prevent damage to the connectors. The hard disk drive’s head retracts when the power is turned OFF to prevent scratching of the hard disk surface during transport.
  • Page 6 Safety Statements CTR 21 Approval (for Notebook PC with built-in Modem) Danish Dutch English Finnish French German Greek Italian Portuguese Spanish Swedish...

  • Page 7: Ul Safety Notices

    Safety Statements UL Safety Notices Required for UL 1459 covering telecommunications (telephone) equipment intended to be electrically connected to a telecommunication network that has an operating voltage to ground that does not exceed 200V peak, 300V peak-to-peak, and 105V rms, and installed or used in accordance with the National Electrical Code (NFPA 70).

  • Page 8: Table Of Contents

    Contents 1. Introducing the Notebook PC ..............11 Preparing your Notebook PC ................... 13 2. Knowing the Parts .................. 15 Top Side ........................16 Bottom Side ......................18 Left Side ........................20 Right Side ......................... 21 Rear Side ......................... 22 Front Side .........................
  • Page 9 Contents 4. Using the Notebook PC ................. 39 Pointing Device ......................40 Using the Touchpad ..................... 40 Touchpad Usage Illustrations ................41 Caring for the Touchpad ..................42 Storage Devices ....................... 42 PC Card (PCMCIA) ..................... 42 ExpressCard ......................42 Inserting a PC Card or ExpressCard ..............

  • Page 11: Introducing The Notebook Pc

    1. Introducing the Notebook PC About This User’s Manual Notes For This Manual Preparing your Notebook PC...

  • Page 12: Notes For This Manual

    Introducing the Notebook PC About This User’s Manual You are reading the Notebook PC User’s Manual. This User’s Manual provides information on the various components in the Notebook PC and how to use them. The following are major sections of this User’s Manuals: 1.

  • Page 13: Preparing Your Notebook Pc

    Introducing the Notebook PC Preparing your Notebook PC These are only quick instructions for using your Notebook PC. Read the later pages for detailed infor- mation on using your Notebook PC. 1. Install the battery pack 2. Connect the AC Power Adapter 3.
  • Page 14 Introducing the Notebook PC...

  • Page 15: Knowing The Parts

    2. Knowing the Parts Basic sides of the Notebook PC...

  • Page 16: Top Side

    Knowing the Parts Top Side Refer to the diagram below to identify the components on this side of the Notebook PC. Details are given starting from the top and going clockwise. Display Panel Tab Display Panel (Clean with soft cloth without chemical liquids.

  • Page 17: Display Panel

    Knowing the Parts Display Panel The display panel functions the same as a desktop monitor. The Notebook PC uses an active matrix TFT LCD, which provides excellent viewing like that of desktop monitors. Unlike desktop monitors, the LCD panel does not produce any radiation or flickering, so it is easier on the eyes. Instant Keys Instant keys allow you to launch frequently used applications with one push of a button.

  • Page 18: Bottom Side

    Knowing the Parts Bottom Side Refer to the diagram below to identify the components on this side of the Notebook PC. Details are given starting from the top and going clockwise. Battery Lock Battery Battery Lock Shutdown Button Mini-PCI Compartment Name Card CPU &...

  • Page 19: Battery Lock

    Knowing the Parts Battery Lock The battery is held by a spring lock. The spring loaded latch automatically locks the battery pack when inserted. Holding this in the unlock position will allow battery removal. Usage details are described in the battery section later in this manual. Battery Pack The battery pack is automatically charged when connected to an AC power source and maintains power to the Notebook PC when AC power is not connected.

  • Page 20: Left Side

    Knowing the Parts Left Side Refer to the diagram below to identify the components on this side of the Notebook PC. 1394 Optical Kensington Monitor Infrared ExpressCard or PCMCIA Activity Emergency Electronic ® Port Drive Lock Port Port Port Slot (depending on model) Indicator Eject Eject...

  • Page 21: Right Side

    Knowing the Parts Right Side Refer to the diagram below to identify the components on this side of the Notebook PC. Flash Memory Modem Port Slot Port Air Vents LAN Port Phone/ USB Ports DC Power SPDIF Input Input Jack USB Port (2.0/1.1) The Universal Serial Bus is compatible with USB 2.0 or USB 1.1 devices such as keyboards, pointing devices, video cameras, hard disk drives, printers, and scanners connected in a series.

  • Page 22: Rear Side

    Knowing the Parts Rear Side Refer to the diagram below to identify the components on this side of the Notebook PC. Battery Pack Battery Pack The battery pack is actually combined with the Notebook PC’s surface in order to reduce thickness. When the battery is released, the surface and battery pack will be seen as a single unit.

  • Page 23: Getting Started

    3. Getting Started Using the Battery Pack Operating Systems Power Connection Powering ON The Notebook PC Power Management Restarting or Rebooting Powering OFF The Notebook PC Using the Keyboard Buttons and Status Indicators...

  • Page 24: Using The Battery Pack

    Getting Started Using the Battery Pack Installing and Removing the Battery Pack Your Notebook PC may or may not have its battery pack installed. If your Notebook PC does not have its battery pack installed, use the following procedures to install the battery pack. IMPORTANT! Never attempt to remove the battery pack while the Notebook PC is turned ON, as this may result in the loss of working data.

  • Page 25: Charging The Battery Pack

    Getting Started Charging the Battery Pack Before you use your Notebook PC on the road, you will have to charge the battery pack. The battery pack begins to charge as soon as the Notebook PC is connected to external power. Fully charge the battery pack before using it for the first time.

  • Page 26: Power Connection

    Getting Started Power Connection Your Notebook PC comes with a universal AC-DC adapter. That means that you may connect the power cord to any 100V-120V as well as 220V-240V outlets without setting switches or using power converters. Different countries may require that an adapter be used to connect the provided US-standard AC power cord to a different standard.

  • Page 27: Powering On The Notebook Pc

    Getting Started Powering ON The Notebook PC The Notebook PC’s power-ON message appears on the screen when you turn it ON. If necessary, you may adjust the brightness by using the hot keys. If you need to run the BIOS Setup to set or modify the system configuration, press [F2] upon bootup to enter the BIOS Setup.

  • Page 28: Power Management

    Getting Started Power Management Power management settings can be found in the Windows control panel. The following shows the power options properties in Windows. You can define “Stand By” or “Shut down” for closing the display panel, pressing the power button, or activating sleep mode. “Stand by” and “Hibernate” saves power when your Notebook PC is not in use by turning OFF certain components.

  • Page 29: Restarting Or Rebooting

    Getting Started Restarting or Rebooting After making changes to your operating system, you may be prompted to restart the system. Some installation processes will provide a dialog box to allow restart. To restart the system manually: Click the Start button and select Shut Down | and choose Restart. In case the operating system hangs (stops, freezes, crashes), try a “warm boot”...

  • Page 30: Powering Off The Notebook Pc

    Getting Started Powering OFF the Notebook PC In Windows XP, the Notebook PC can be powered OFF by using Start | Shut Down... | Turn off (or Shut down). For operating systems without proper power management (DOS, Windows NT), you must power OFF the Notebook PC by holding the power switch for 2 seconds (as opposed to 1 second to power ON) after closing applications and exiting operating systems.

  • Page 31: Using The Keyboard

    Getting Started Using the Keyboard Colored Hot Keys The following defines the colored hot keys on the Notebook PC’s keyboard. The colored commands can only be accessed by first pressing and holding the function key while pressing a key with a colored command. NOTE: The Hot Key locations on the function keys may vary depending on model but the functions should remain the same.

  • Page 32: Microsoft Windows™ Keys

    Getting Started Microsoft Windows™ Keys There are two special Windows™ keys on the keyboard as described below. The key with the Windows™ Logo activates the Start menu located at the bottom left of the Windows™ desktop. The other key, that looks like a Windows™ menu with a small cursor, activates the properties menu and is equivalent to pressing the right mouse button on a Windows™...

  • Page 33: Keyboard As Cursors

    Getting Started Keyboard as Cursors The keyboard can be used as cursors while Number Lock is ON or OFF in order to increase navigation ease while entering numeric data in spreadsheets or similar applications. With Number Lock OFF, press and one of the cursor keys shown below. For example [Fn][8] for up, [Fn][K] for down, [Fn][U] for left, and [Fn][O] for right.

  • Page 34: Instant Launch Keys And Status Indicators

    Getting Started Instant Launch Keys and Status Indicators Instant Launch Keys (above keyboard) Pad-Lock Key Pressing this button will lock your touchpad when using an external mouse. Locking the touchpad will prevent you from accidentally moving the cursor while typing. To enable the touchpad, simply press this button again.

  • Page 35: Status Indicators (Above Keyboard)

    Getting Started Status Indicators (above keyboard) Drive Activity Indicator Indicates that the Notebook PC is accessing one or more storage device(s) such as the hard disk. The light flashes proportional to the access time. Number Lock Indicates that number lock [Num Lk] is activated when lighted. Number lock allows some of the key- board letters to act as numbers for easier numeric data input.

  • Page 36: Status Indicators (Left Of Touchpad)

    Getting Started Status Indicators (left of touchpad) Pad-Lock Indicator The pad-lock indicator will light to show that the Notebook PC’s touchpad is disabled by the pad-lock key. Power Indicator The power indicator will light to show that the Notebook PC is turned ON and blink when the Note- book PC is in the Suspend-to-RAM (Standby) mode.

  • Page 37: Status Indicators (Top Cover)

    Getting Started Status Indicators (top cover) Power Indicator The power indicator will light to show that the Notebook PC is turned ON and blink when the Note- book PC is in the Suspend-to-RAM (Standby) mode. This LED is OFF when the Notebook PC is OFF or in the Suspend-to-Disk (Hibernation) mode.
  • Page 38 Getting Started...

  • Page 39: Using The Notebook Pc

    4. Using the Notebook PC Pointing Device Storage Devices PC card or ExpressCard (depending on model) Optical Drive Flash Memory Card Reader Modem and Network Connections IR Wireless Communication Power System AC Power System Battery Power System Power Management Modes...

  • Page 40: Pointing Device

    Using the Notebook PC Pointing Device The Notebook PC’s integrated touchpad pointing de- vice is fully compatible with all two/three-button and scrolling knob PS/2 mice. The touchpad is pressure sen- Cursor sitive and contains no moving parts; therefore, mechani- Movement cal failures can be avoided.

  • Page 41: Touchpad Usage Illustrations

    Using the Notebook PC Touchpad Usage Illustrations Clicking/Tapping - With the cursor over an item, press the left button or use your fingertip to touch the touchpad lightly, keeping your finger on the touchpad until the item is selected. The selected item will change color.

  • Page 42: Caring For The Touchpad

    Using the Notebook PC Dragging - Dragging means to pick up an item and place it anywhere on the screen you wish. You can move the cursor over the item you select, and while keeping the left button depressed, moving the cursor to the desired location, then release the button.

  • Page 43: Storage Devices

    Using the Notebook PC Storage Devices Storage devices allow the Notebook PC to read or write documents, pictures, and other files to various data storage devices. This Notebook PC has the following storage devices: • PC card or ExpressCard (depending on model) •...

  • Page 44: Inserting A Pc Card Or Expresscard

    Using the Notebook PC Inserting a PC Card or ExpressCard Be sure the PC card is level when inserting. 3. Carefully connect any cables or adapters 1. If there is a PC Card socket protector, remove it using the “Removing a PC Card” instructions needed by the PC card.

  • Page 45: Optical Drive

    Using the Notebook PC Optical Drive Inserting an optical disc 1. While the Notebook PC’s power is ON, 2. Gently pull on the drive’s front panel and slide press the drive’s eject button and the tray the tray completely out. Be careful not to touch will eject out partially.

  • Page 46: Removing An Optical Disc

    Using the Notebook PC Optical Drive (Cont’) Removing an optical disc 1. While the Notebook PC’s power is ON, press 2. While pressing down on the center hub, gen- the drive’s eject button and the tray will eject tly pry the edge of the disc upwards at an angle out partially.

  • Page 47: Flash Memory Card Reader

    Using the Notebook PC Flash Memory Card Reader Normally a PCMCIA memory card reader must be purchased separately in order to use memory cards from devices such as digital cameras, MP3 players, mobile phones, and PDAs. This Notebook PC has a single built-in memory card reader that can read the following flash memory cards: Secure Digital (SD), Multi-Media Card (MMC), Memory Stick (MS), Memory Stick Select (MS Select), Memory Stick Duo (with MS adapter), Memory Stick Pro, and Memory Stick Pro Duo (with MS Pro adapter).

  • Page 48: Hard Disk Drive

    Using the Notebook PC Hard Disk Drive Hard disk drives have higher capacities and operate at much faster speeds than floppy disk drives and CD- ROM drives. Enhanced IDE drives provide a reliable, fast, and cost-effective mass storage solution in the PC storage industry.

  • Page 49: Modem And Network Connections

    Using the Notebook PC Modem and Network Connections The built-in modem and network model comes with both an RJ-11 and an RJ-45 port. RJ-11 telephone cables have two or four wires and are used to connect telephones to telephone outlets found in the walls of residential homes and some commercial buildings (some commercial buildings may have telephone wir- ing designed for dedicated phone systems that may not be compatible).

  • Page 50: Modem Connection

    Using the Notebook PC Modem Connection The telephone wire used to connect the Notebook PC’s internal modem should have either two or four wires (only two wires (telephone line #1) is used by the modem) and should have an RJ-11 connector on both ends. Connect one end to the modem port and the other end to an analog telephone wall socket (the ones found in residential buildings).

  • Page 51: Internal 10/100 Network (Gigabit On Selected Models)

    Using the Notebook PC Internal 10/100 Network (Gigabit on selected models) Connect a network cable, with RJ-45 connectors on each end, to the modem/network port on the Note- book PC and the other end to a hub or switch. For 100 BASE-TX / 1000 BASE-T speeds, your network cable must be category 5 or better (not category 3) with twisted-pair wiring.

  • Page 52: Wireless Lan Connection

    Using the Notebook PC Wireless LAN Connection (on selected models) The optional built-in wireless LAN is a compact easy-to-use wireless Ethernet adapter. Implementing the IEEE 802.11 standard for wireless LAN (WLAN), the optional built-in wireless LAN is capable of fast data transmission rates using Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) technologies on 2.4GHz/5GHz frequencies.

  • Page 53: Connecting To A Network

    Using the Notebook PC Intel PROSet (3945) Wireless LAN (on selected models) Connecting to a network Press [FN F2] (or double click the Wireless Console icon on the taskbar). Four icons will appear as shown here. Click on the 1st setting to activate both Wireless &...
  • Page 54 Using the Notebook PC ASUS Wireless LAN (on selected models) Connecting to a network Press [FN F2] (or double click the Wireless Console icon on the taskbar). Four icons will appear as shown here. Click on the 1st setting to activate both Wireless &...

  • Page 55: Windows Wireless Network Connection

    Using the Notebook PC Windows Wireless Network Connection Connecting to a network Press [FN F2] (or double click the Wireless Console icon on the taskbar). Four icons will appear as shown here. Click on the 1st setting to activate both Wireless &...
  • Page 56 Using the Notebook PC Bluetooth Wireless Connection (on selected models) Notebook PCs with Bluetooth technology eliminates the need for cables for connecting Blue- tooth-enabled devices. Examples of Bluetooth-enabled devices may be Notebook PCs, Desktop PCs, mobile phones, and PDAs. Note: If your Notebook PC did not come with built-in Bluetooth, you need to connect a USB or ExpressCard Bluetooth module in order to use Bluetooth.

  • Page 57: Power Management Modes

    Using the Notebook PC Power Management Modes The Notebook PC has a number of automatic or adjustable power saving features that you can use to maximize battery life and lower Total Cost of Ownership (TCO). You can control some of these features through the Power menu in the BIOS Setup.

  • Page 58: Power State Summary

    Using the Notebook PC Power State Summary STATE ENTRY EVENT EXIT EVENT • “Stand by” through Windows Start button • Any device “Stand by” • Timer as set though “Power Management” in • Battery low Windows Control Panel (higher priority) STR (“Stand by”) •...

  • Page 59: Stand By And Hibernate

    Using the Notebook PC Stand by and Hibernate Power management settings can be found in the Windows control panel. The following shows the power options properties in Windows. You can define “Stand By” or “Shut down” for closing the display panel, pressing the power button, or activating sleep mode.
  • Page 60 Using the Notebook PC...

  • Page 61: Appendix

    Appendix Optional Accessories Optional Connections Internal Modem Compliancy Glossary Notebook PC Information...

  • Page 62: Optional Accessories

    Appendix Optional Accessories These items, if desired, come as optional items to complement your Notebook PC. USB Hub (Optional) Attaching an optional USB hub will increase your USB ports and allow you to quickly connect or disconnect many USB peripherals through a single cable. USB 2.0 Slim Combo Drive (Optional) The slim combo drive features FlextraLink™...

  • Page 63: Usb Flash Memory Disk

    802.11g/b wireless stan- dards. (PCMCIA on se- lected models only.) The ASUS USB Wireless LAN Adapter (WL- 167g) is thumb-sized and creates a wireless net- work using the IEEE 802.11g/b wireless standards and connects to any computer using USB2.0 con- nectivity.

  • Page 64: Usb Floppy Disk Drive

    Appendix Optional Accessories (Cont.) These items, if desired, come as optional items to complement your Notebook PC. USB Floppy Disk Drive The Notebook PC features an optional USB-interface disk drive that accepts a standard 1.44MB (or 720KB) 3.5-inch floppy diskette. The eject button is on the top edge of the floppy disk drive for easy access, unlike desktop PCs with the eject button on the bottom of the floppy disk drive.

  • Page 65: Optional Connections

    Appendix Optional Connections These items, if desired, may be purchased from third-parties. Monitor Out Connection Attaching an optional VGA/LCD monitor is just like that of a standard desktop PC (some configu- rations may require additional display driver set- tings. You can view the Notebook PC display panel while simultaneously allowing others to view the external monitor.

  • Page 66: Ieee1394 Connection

    Appendix Optional Connections (Cont.) These items, if desired, may be purchased from third-parties. IEEE1394 Connection 1394 is a high speed serial bus like SCSI but has simple connections and hot-plugging capabilities like USB. Up to 63 devices such as hard disk drives, scanners, removable drives, and digital cameras/ video cameras with an 1394 port can all be con- nected (more 1394 devices can be connected us-...

  • Page 67: Dvd-Rom Drive Information

    Appendix DVD-ROM Drive Information The Notebook PC comes with an optional DVD-ROM drive or a CD-ROM drive. In order to view DVD titles, you must install your own DVD viewer software. Optional DVD viewer software may be purchased with this Notebook PC. The DVD-ROM drive allows the use of both CD and DVD discs. Regional Playback Information Playback of DVD movie titles involves decoding MPEG2 video, digital AC3 audio and decryption of CSS protected content.

  • Page 68: Internal Modem Compliancy

    Appendix Internal Modem Compliancy The Notebook PC with internal modem model complies with JATE (Japan), FCC (US, Canada, Korea, Taiwan), and CTR21. The internal modem has been approved in accordance with Council Decision 98/ 482/EC for pan-European single terminal connection to the public switched telephone network (PSTN). However due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN network termination point.
  • Page 69 Appendix This table shows the countries currently under the CTR21 standard. Country Applied More Testing Austria Belgium Czech Republic Not Applicable Denmark Finland France Germany Greece Hungary Not Applicable Iceland Ireland Italy Still Pending Still Pending Israel Lichtenstein Luxemburg The Netherlands Norway Poland Not Applicable...

  • Page 70: Glossary

    Appendix Glossary ACPI (Advanced Configuration and Power Management Interface) Modern standard for reducing power usage in computers. APM (Advanced Power Management) Modern standard for reducing power usage in computers. AWG (American Wire Gauge) Gauge Diam Area I@3A/mm2 Gauge Diam Area I@3A/mm2 (mm) (mm2) (ohm/km) (mA)
  • Page 71 Appendix BIOS (Basic Input/Output System) BIOS is a set of routines that affect how the computer transfers data between computer components, such as memory, disks, and the display adapter. The BIOS instructions are built into the computer’s read-only memory. BIOS parameters can be configured by the user through the BIOS Setup program. The BIOS can be updated using the provided utility to copy a new BIOS file into the EEPROM.
  • Page 72 Appendix DVD is essentially a bigger, faster CD that can hold video as well as audio and computer data. With these capacities and access rates, DVD discs can provide you with dramatically-enhanced high-color, ® full-motion videos, better graphics, sharper pictures, and Dolby Digital Surround for a theater-like experience.
  • Page 73 Appendix Laser Classifications As lasers became more numerous and more widely used, the need to warn users of laser hazards be- came apparent. To meet this need, laser classifications were established. Current classification levels vary from optically safe, requiring no controls (Class 1) to very hazardous, requiring strict controls (Class 4).
  • Page 74 Appendix POST (Power On Self Test) When you turn on the computer, it will first run through the POST, a series of software-controlled diagnostic tests. The POST checks system memory, the motherboard circuitry, the display, the key- board, the diskette drive, and other I/O devices. RAM (Random Access Memory) There are several different types of RAM such as DDR (Double Dynamic RAM), DRAM (Dynamic RAM), EDO DRAM (Extended Data Output DRAM), SDRAM (Synchronous DRAM).
  • Page 75 Appendix...

  • Page 76: Notebook Pc Information

    Appendix Notebook PC Information This page is provided for recording information concerning your Notebook PC for future reference or for technical support. Keep this User’s Manual in a secured location if passwords are filled out. Owner’s Name: ____________________________ Owner’s Telephone: ______________ Manufacturer: _______________ Model: ___________ Serial Number: ______________ Display Size: ____________ Resolution: _____________ Memory Size: ______________ Retailer: _________________ Location: ___________ Purchase Date: ______________...

  • Page 77: Copyright Information

    ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement. This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its sup- pliers, and your reseller are collectively responsible.
