Motherboard Layout

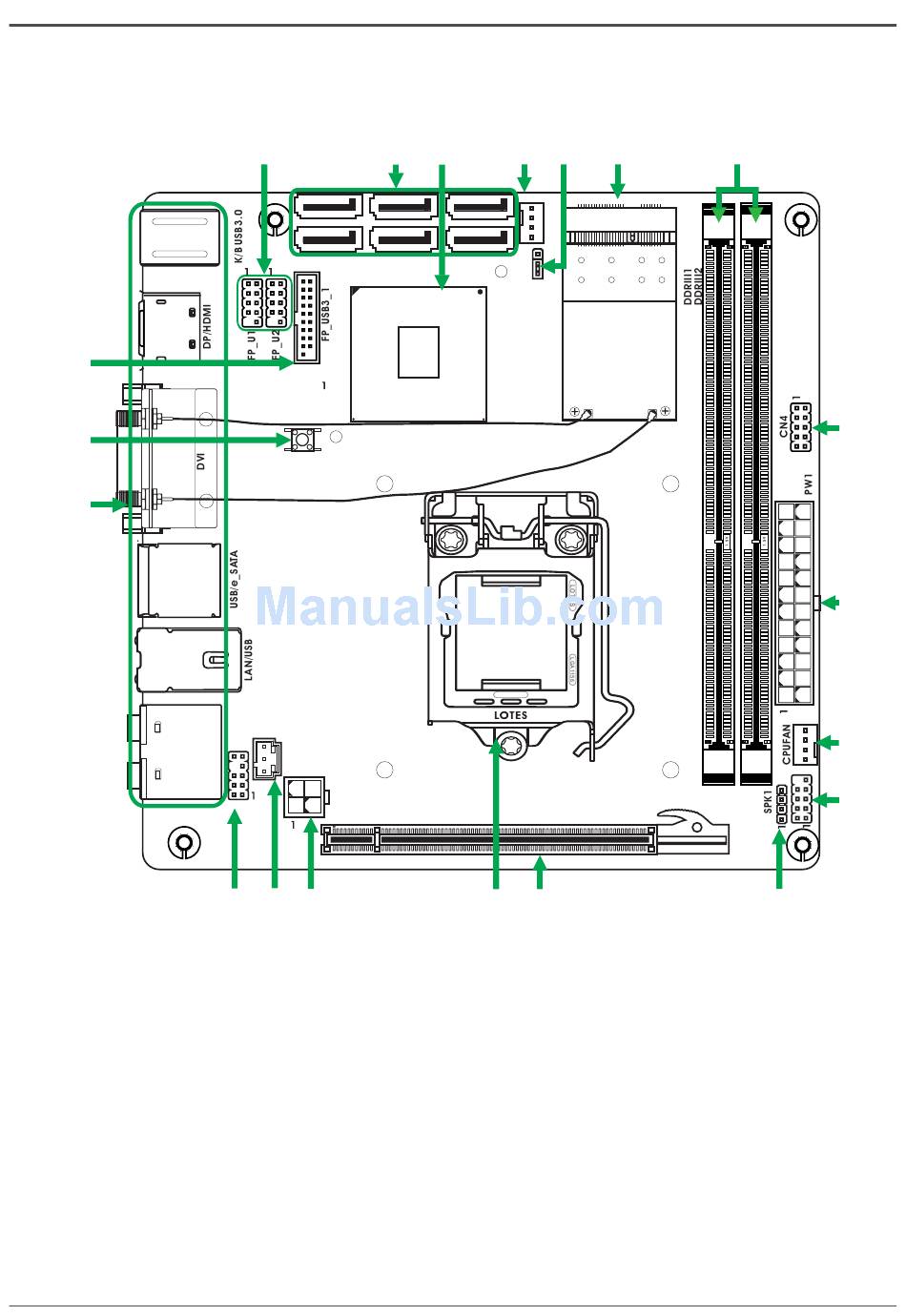

Figure 1 shows the motherboard and Figure 2 shows the back panel connectors.
13
12
11
SD1
Figure 1. Board Layout
1. COM Header-CN4 (Optional)
2. 24-pin ATX Power Connector-PW1
3. CPU Fan Connector-CPUFAN1
4. Front Panel Header-FP1
5. Speaker Header-SPK1
6. PCI Express x16 Slot-PCIE_X16
7. CPU Socket
8. 4-pin ATX_12V power connector-PW2
9. SPDIF-Out Header-CN5
10. Front Pannel Audio Header-FP_S1
6
15
14
SATA2
SATA1
SW1
CN5
PW2
FP_S1
10 9 8
17 18
16
SYSFAN1
SATA4 SATA6
SATA3 SATA5
1
JP1
Chipset
+
115XLM
REMOVE
7 6
Figure 1
11. Backpanel Connectors
12. Clear CMOS Button-SW1
13. USB 3.0 Header-FP_USB3_1
14. USB 2.0 Headers (FP_U1~FP_U2)
15. Serial-ATA (SATA) Connectors (SATA1~6)
16. Chipset
17. SYS Fan Connector-SYSFAN1
18. Clear CMOS Jumper-JP1
19. Mini PCI Express Slot-MINI_PCIE1
20. DDRIII DIMM Sockets-DDRIII1~2
