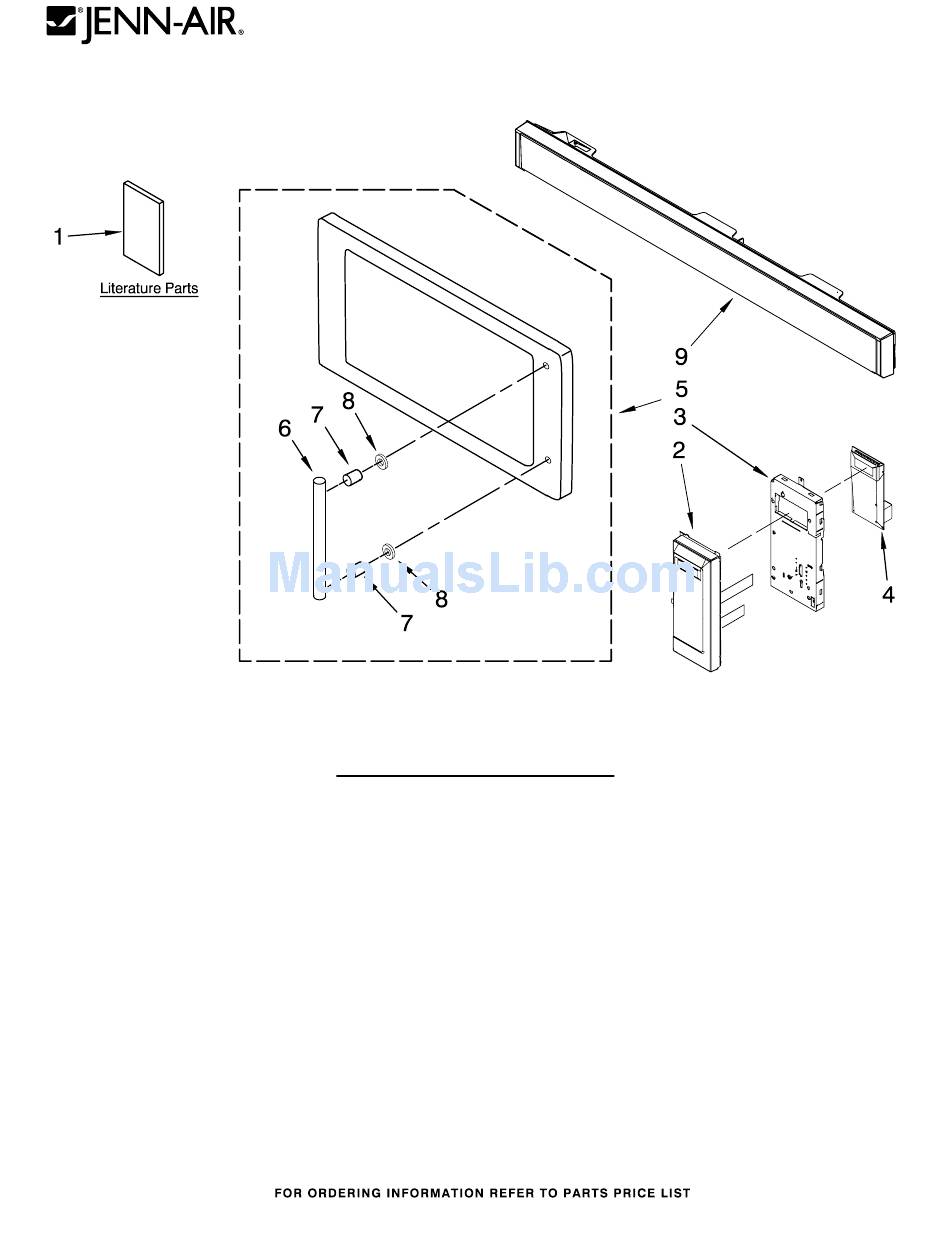

CONTROL PANEL PARTS
For Models: JMV8208BAB17, JMV8208BAS17, JMV8208BAW18
(Black)
Illus.
Part
No.
No.
1
W10177936 U & C Guide
W10182044 Tech Sheet, Slim
2
DE94−01402D Black
DE94−01402E White
DE94−01402F Stainless
3 W10181469 Bracket, Control
4 W10182042 Microcomputer
5
W10187691 Black
W10192094 White
W10187742 Stainless
6 W10191856 Handle, Door
7 W10191857 Handle, Base
8 W10191858 Handle, Spacer
9
DE97−00667A Black
W10192095 White
W10187743 Stainless
(Stainless)
(White)
DESCRIPTION
Literature
Panel Asy, Control
Membrane, Lens and
Bracket
Complete Door
Grille Assembly
1
MICROWAVE OVEN/HOOD
2.0 Cu. Ft.
Part No. W10268828 Rev. A
