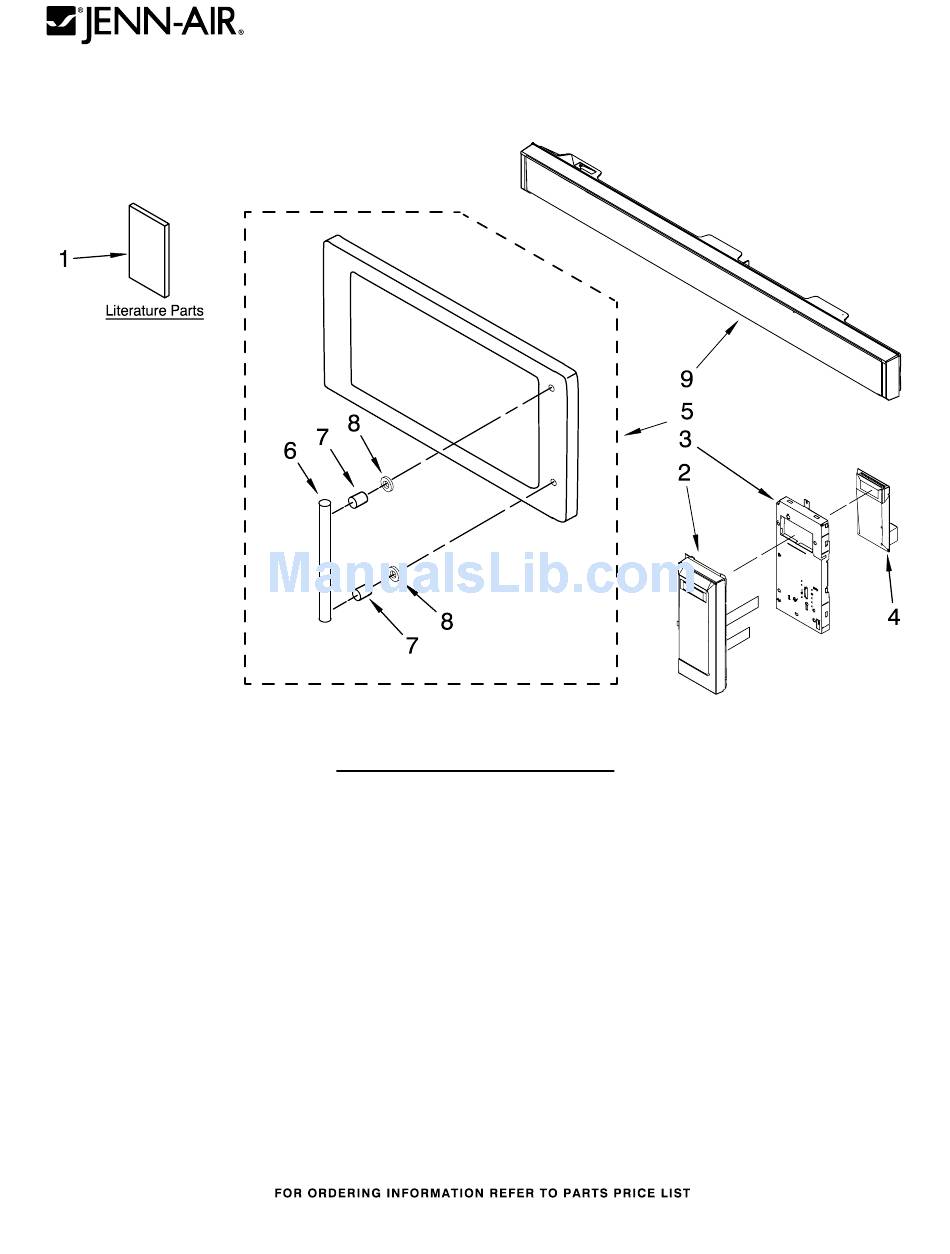

CONTROL PANEL PARTS
For Models: JMV8208BAB14, JMV8208BAS14
(Black)
Illus.
Part
No.
No.
DESCRIPTION
1
Literature
W10177936 U & C Guide
W10182044 Tech Sheet, Slim
2
Panel Asy, Control
Membrane, Lens and
Bracket
DE94−01402D Black
DE94−01402F Stainless
3 W10181469 Bracket, Control
4 W10182042 Microcomputer
5
Complete Door
W10187691 Black
W10187742 Stainless
6 W10191856 Handle, Door
7 W10191857 Handle, Base
8 W10191858 Handle, Spacer
9
Grille Assembly
DE97−00667A Black
W10187743 Stainless
(Stainless)
1
Microwave Oven/Hood
2.0 Cu. Ft.
Part No. W10183489 Rev. D
