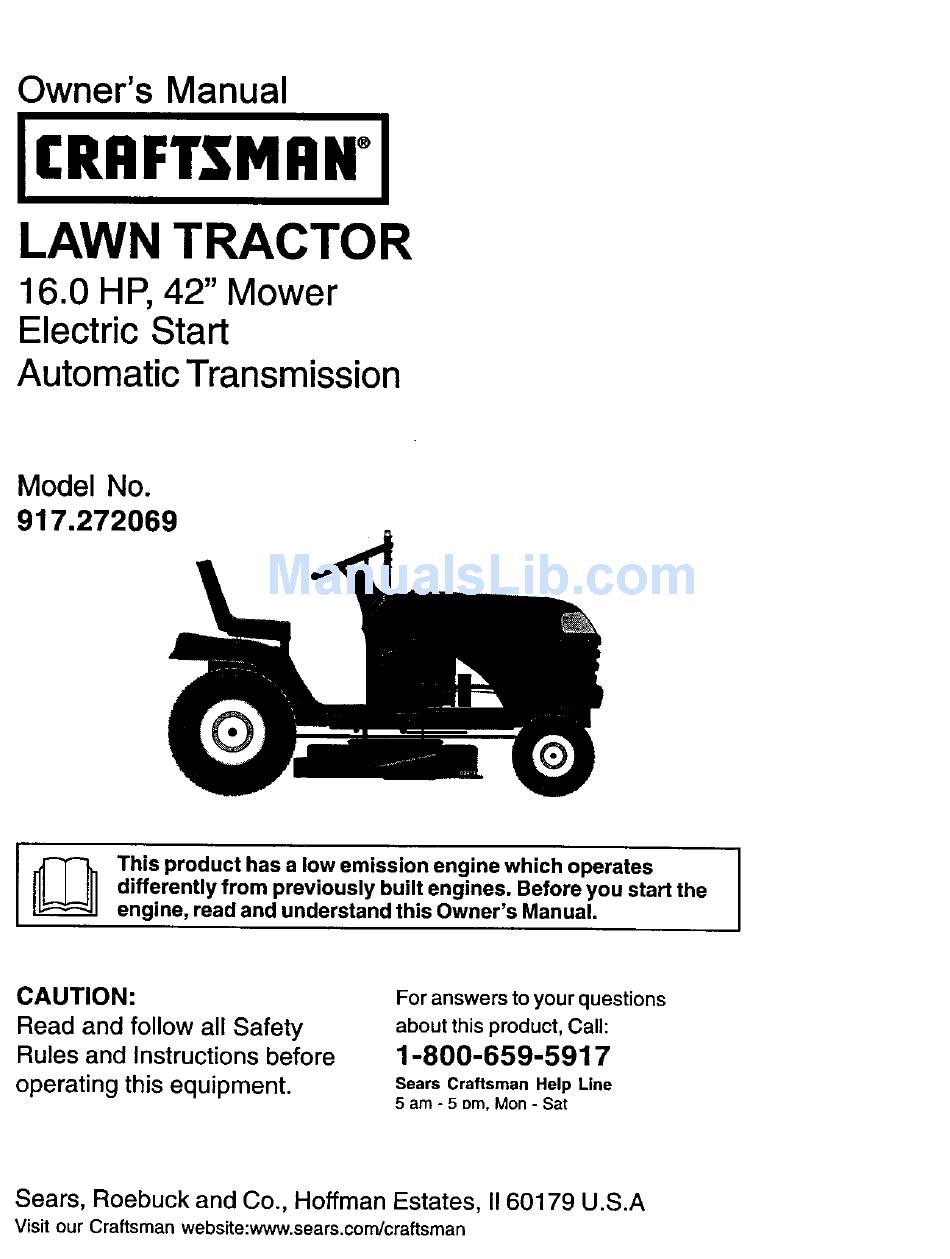

Owner's Manual
iCRRFTSMAN°I
LAWN TRACTOR
16.0 HP, 42" Mower
Electric Start
Automatic Transmission
Model No.
917.272069
I_
his product
has a low emission
engine which operates
I
differently
from
previously
built engines.
Before you start the
I
engine,
read and understand
this Owner's
Manual.
CAUTION:
Read and follow all Safety
Rules and Instructions before
operating this equipment.
For answers
to your questions
about this product,
Call:
1-800-659-5917
Sears Craftsman Help Line
5 am - 5 ore, Mon- Sat
Sears, Roebuck and Co., Hoffman Estates, II 60179 U.S.A
Visit our Craftsman website:www.sears.com/craftsman
