Craftsman 917.275753 Owner's Manual

Lawn tractor 18.5 hp, 42" mower electric start 6 speed transaxle
Hide thumbs
Table of Contents

Advertisement

Quick Links

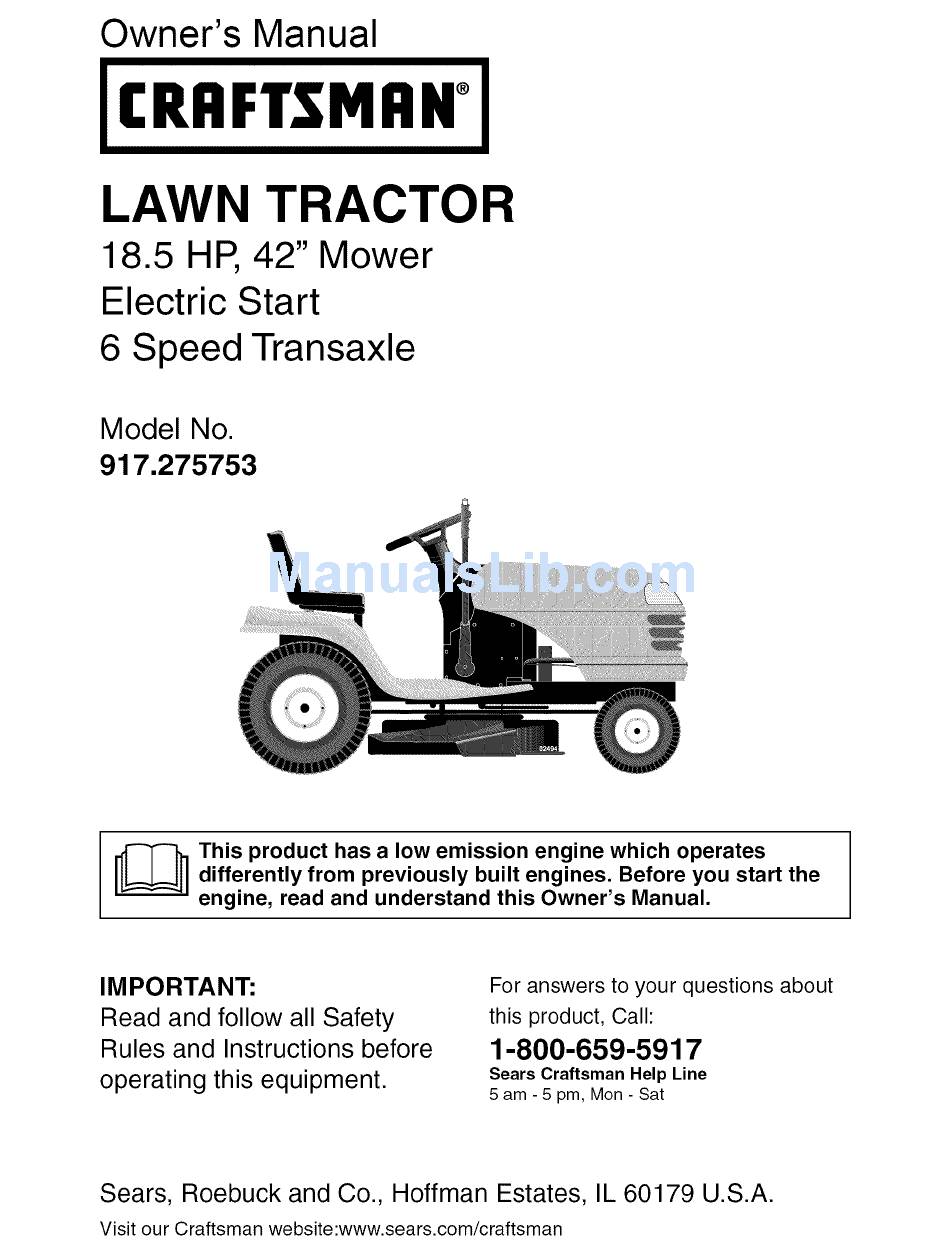

Owner's Manual
CRRFTSMRN °
LAWN TRACTOR
18.5 HP, 42" Mower
Electric Start
6 Speed Transaxle
Model No.
917.275753
_]
his product
has a low emission engine which operates
differently from previously
built engines. Before you start the
engine, read and understand this Owner's Manual.
IMPORTANT:
Read and follow all Safety
Rules and Instructions before
operating this equipment.
For answers to your questions about
this product, Call:
1-800-659-5917
Sears Craftsman Help Line
5 am - 5 pm, Mon - Sat
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
Visit our Craftsman
website:www.sears.com/craftsman
