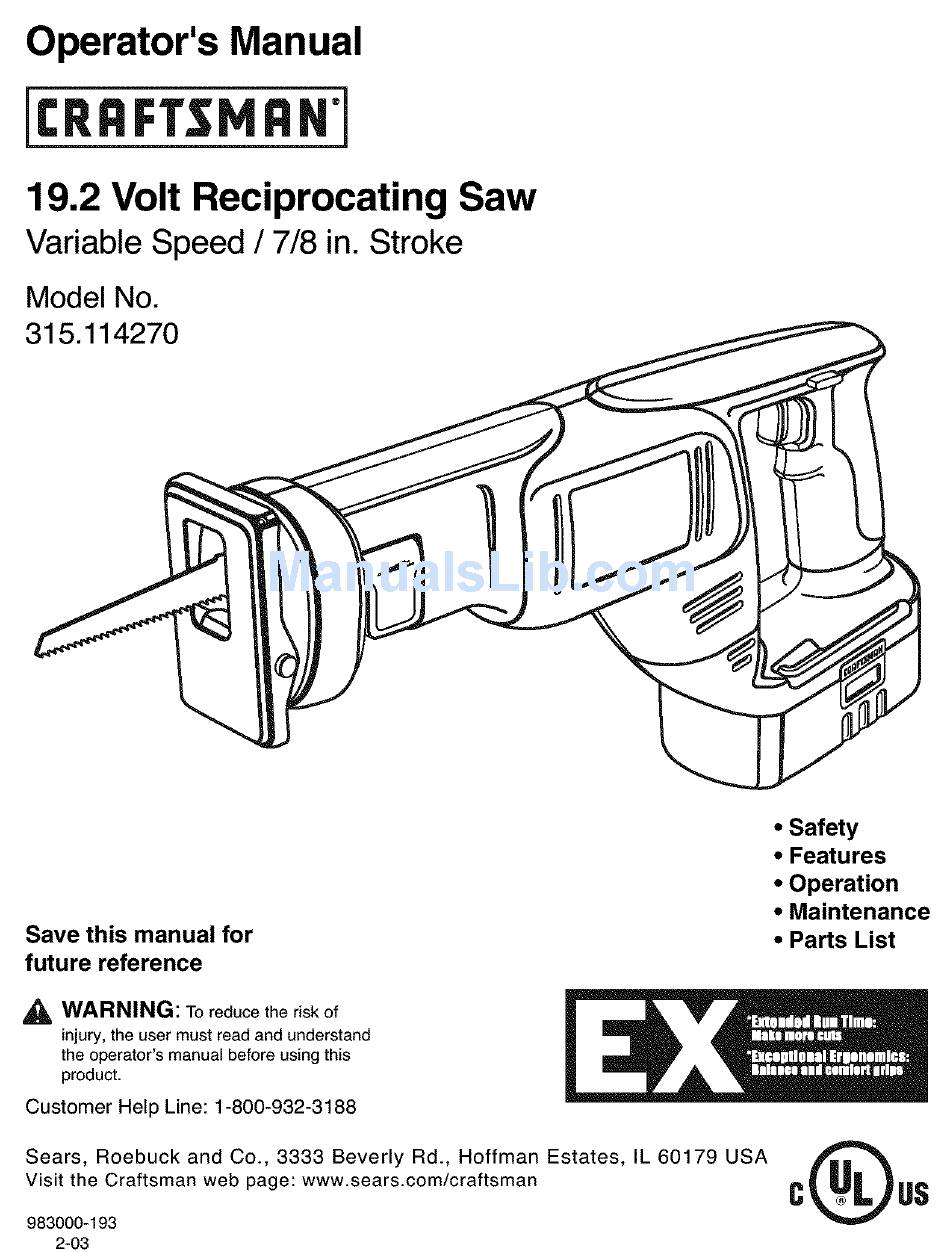

Operator's Manual
[ERRFTSMRN'j
19.2 Volt Reciprocating Saw
Variable Speed / 7/8 in. Stroke
Model No.
315.114270
Save this manual for
future reference
"_ WARNING: To
reduce the risk of
injury, the user must read and understand
the operator's manual before using this
product.
Customer
Help Line: 1-800-932-3188
• Safety
• Features
• Operation
• Maintenance
• Parts List
Sears,
Roebuck
and Co., 3333
Beverly
Rd., Hoffman
Estates,
IL 60179
USA
Visit the Craftsman
web page: www.sears.com/craftsman
983000-193
2-03
o®
US
Advertisement
Related Manuals for Craftsman 315.114270
Summary of Contents for Craftsman 315.114270
- Page 1 Customer Help Line: 1-800-932-3188 o® Sears, Roebuck and Co., 3333 Beverly Rd., Hoffman Estates, IL 60179 Visit the Craftsman web page: www.sears.com/craftsman 983000-193 2-03...
- Page 2 Exploded View and Parts List ............................• Parts Ordering / Service ..............................FULL ONE YEAR WARRANTY ON CRAFTSMAN 19.2 VOLT CORDLESS RECIPROCATING If this fRnF'F=_MAM tool fails to give complete satisfaction within one year from the date of purchase, RETURN IT TO THE NEAREST SEARS STORE IN THE UNITED STATES, and Sears will repair it, free of charge.
- Page 3 • Remove adjusting keys or wrenches before turn- WARNING: Read and understand all instruc- ing the tool on. A wrench or a key that is left attached tions. Failure to follow all instructions listed below, to a rotating part of the toot may result in personal may result in electric shock, fire and/or serious injury.
- Page 4 SERVICE • When servicing a tool, use only identical replace- ment parts. Follow instructions in the Maintenance • Tool service must be performed by a qualified section of this manual. Use of unauthorized parts or repair personnel. Service or maintenance performed failure to follow Maintenance Instructions may create a by unqualified personnel could result in a risk of injury.
- Page 5 dl_% • Do not operate charger with a damaged cord or WARNING: Never use a battery that has been plug. If damaged, have replaced immediately by a dropped or received a sharp blow. A damaged qualified serviceman. Following this rule will reduce battery is subject to explosion.
- Page 6 Important:Some ofthefollowing symbols m aybeusedonyourtool.Please study themandlearn theirmeaning. Proper interpretation of thesesymbols willallowyoutooperate thetoolbetterandsafer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second) Minutes Time "k., Alternating Current Type or a characteristic of current -':-- Direct Current Type or a characteristic of current No Load Speed...
- Page 7 Motor ............19.2 Volts DC Switch ............Variable Speed Stroke Length ............7/8 in. Charger Rating ......120 Volts, 60 Hz, AC only No Load Speed ..........0-3100/min. Charger Rate ............1 hour INSTRUCTIONS PACKING LIST Your reciprocating saw has been shipped completely Reciprocating Saw assembled.
-
Page 8: Knowyour Reciprocating Saw
KNOWYOUR RECIPROCATING SAW LOCK-OFF BUTTON See Figure 1. Your saw is equipped with a "lock-off" button which Before attempting to use your reciprocating saw, reduces the possibility of accidental starting. The lock-off familiarize yourself with all operating features and safety button is located on the handle above the switch trigger. - Page 9 DEPRESSEITHERSIDE TO PULLSWITCHTRIGGER LOCK-OFF BUTTON BASE (SHOE) ASSEMBLY LOCK-OFF BUTTON SWITCH TRIGGER SAW BLADE BLADECLAMP LOCK/RELEASELEVER BATTERYPACK BLADE WRENCHHOLDER BLADEWRENCH (5 mm HEXKEY) Fig. 1...
- Page 10 TO INSTALL SAW BLADE WARNING: Always remove battery pack from your See Figure 3. saw when you are assembling parts, making adjustments, assembling or removing blades, • Remove battery pack. See Figure 2. cleaning, or when not in use. Removing battery pack wilt prevent accidental starting that could cause 41_k WARNING: Failure to remove battery pack from...
- Page 11 • If both yellow and green LED come on, this indicates a WARNING: Do not allow familiarity with your drill- deeply discharged or defective battery pack. driver to make you careless. Remember that a careless fraction of a second is sufficient to inflict Allow battery pack to remain in charger for 15 to 30 severe injury.
- Page 12 LED FUNCTIONS OF CHARGER BASE (SHOE) ASSEMBLY LED WILL BE ON TO INDICATE STATUS See Figure 6. CHARGER AND BATTERY PACK: The base assembly of your reciprocating saw pivots up and down in both directions. It also is adjustable, allowing •...
-
Page 13: General Cutting
GENERAL CUTTING PLUNGE CUTTING See Figure 7. See Figure 8. Mark the line of cut clearly. Choose a convenient starting point inside the area to be cut out and place the tip of the blade over that point. Rest front edge of base (shoe) assembly on work and hold firmly in position. - Page 14 Do not abuse power tools. Abusive practices can damage WARNING: When servicing, use only identical Craftsman replacement parts. Use of any other toot as well as workpiece. part may create a hazard or cause product damage. Only the parts shown on parts list, page 15, are intended to be repaired or replaced by the customer.
-
Page 15: Parts List
CRAFTSMAN 19.2 VOLT RECIPROCATING SAW - MODEL NO. 315.114270 I The model number will be found on a plate attached to the motor housing. Always mention the model number in all correspondence regarding your 19.2 VOLT RECIPROCATING SAW or when ordering repair parts. - Page 16 Your Home For repair-in your home-of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories owner's manuals that you need to do-it-yourself. For Sears professional installation of home appliances and items like garage door openers and water heaters.
