Gigabyte GA-MA790GP-UD4H User Manual page 91

S/PDIF Coaxial Cable
S/PDIF Optical Cable

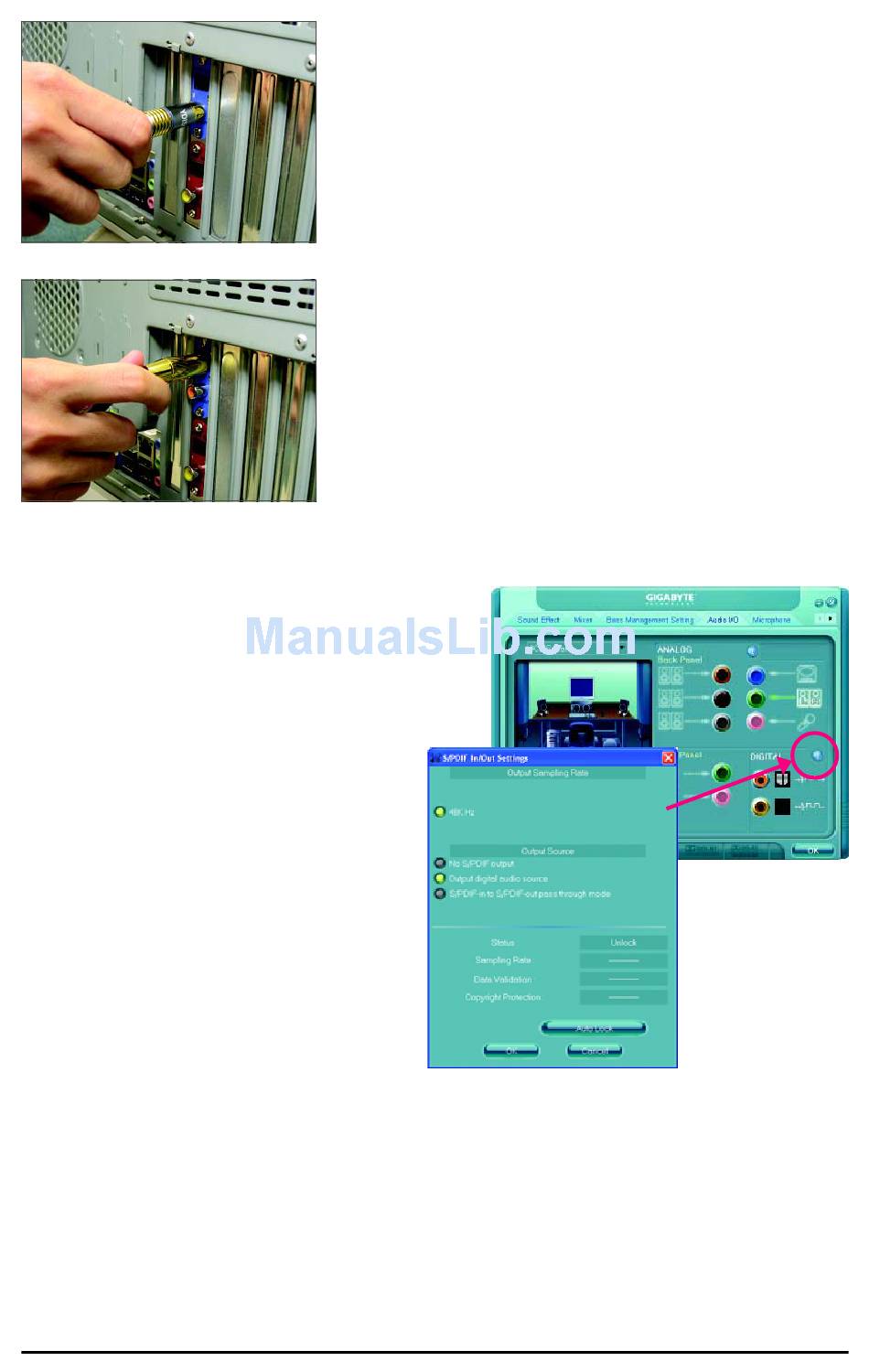

B. Configuring S/PDIF out:
Click the tool icon in the DIGITAL section. In the
S/PDIF In/Out Settings dialog box, select an out-
put sampling rate and select (or disable) the output
source. Click OK to complete the configuration.
(Note) The actual locations of the SPDIF In and SPDIF Out connectors may differ by model.
Step 3:
Connect a S/PDIF coaxial cable or a S/PDIF optical cable (either
one) to an external decoder for transmitting the S/PDIF digital
audio signals.
- 91 - Appendix
