CABINET PARTS
REFRIGERATOR
For Model: JFC2089HPR11
(Oiled Bronze)
Part No. W10204058 Rev. A
4−08 Litho In U.S.A. (PAL) (eeb)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JFC2089HPR11 and is the answer not in the manual?

Questions and answers

Related Manuals for Jenn-Air JFC2089HPR11

Summary of Contents for Jenn-Air JFC2089HPR11

  • Page 1 CABINET PARTS REFRIGERATOR For Model: JFC2089HPR11 (Oiled Bronze) Part No. W10204058 Rev. A 4−08 Litho In U.S.A. (PAL) (eeb)

  • Page 2: Cabinet Parts

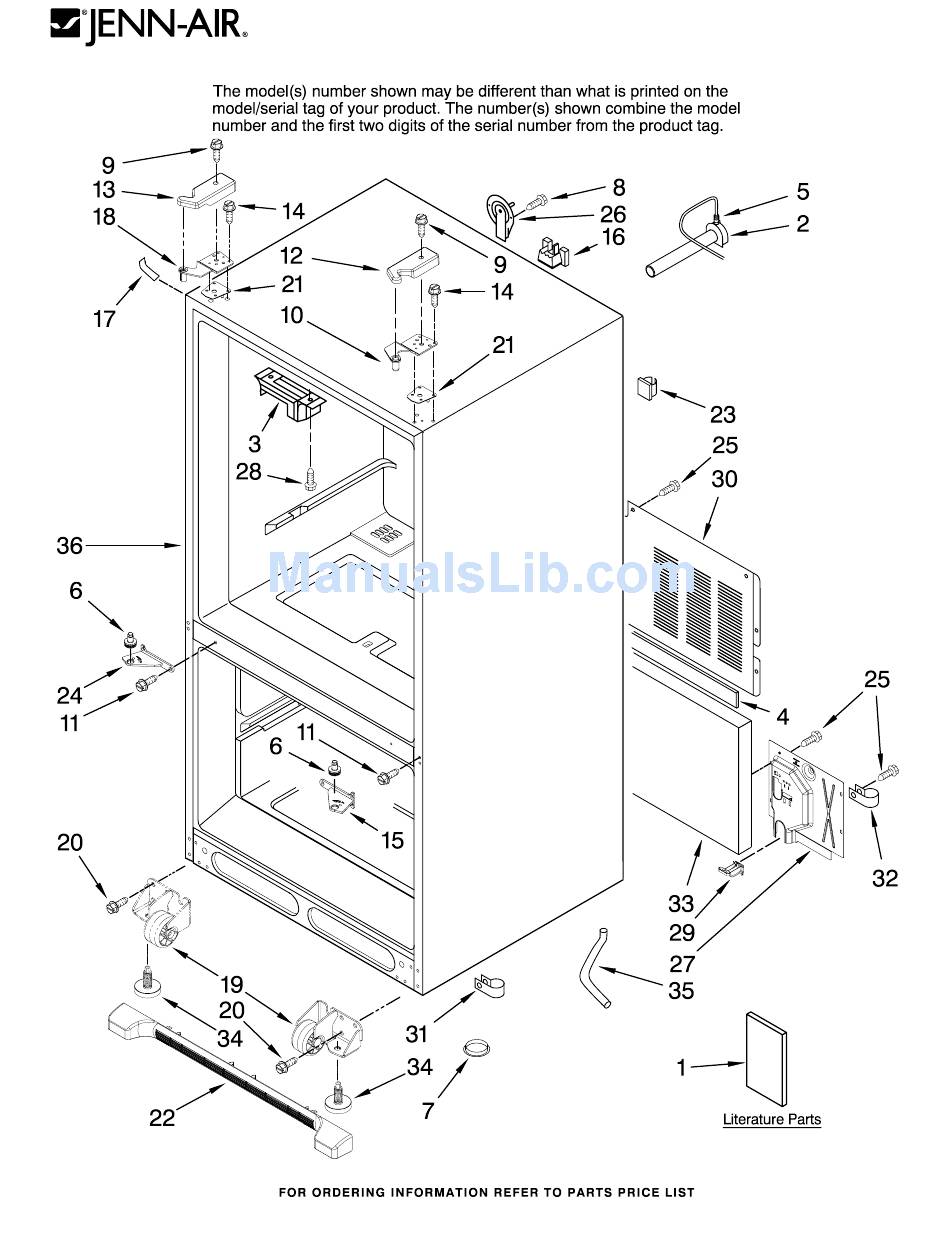

    CABINET PARTS For Model: JFC2089HPR11 (Oiled Bronze) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts Cover, Left Hinge 23 M0104106 Clip (2) 67006616 Tech Sheet Hinge, Center (LT) 67006726 Black W10137647 Owners Manual 67002960 Black 67006303 Screw (6) 67005575 Tag, Energy 67006425 Screw (10) Hinge, Center (RT)
