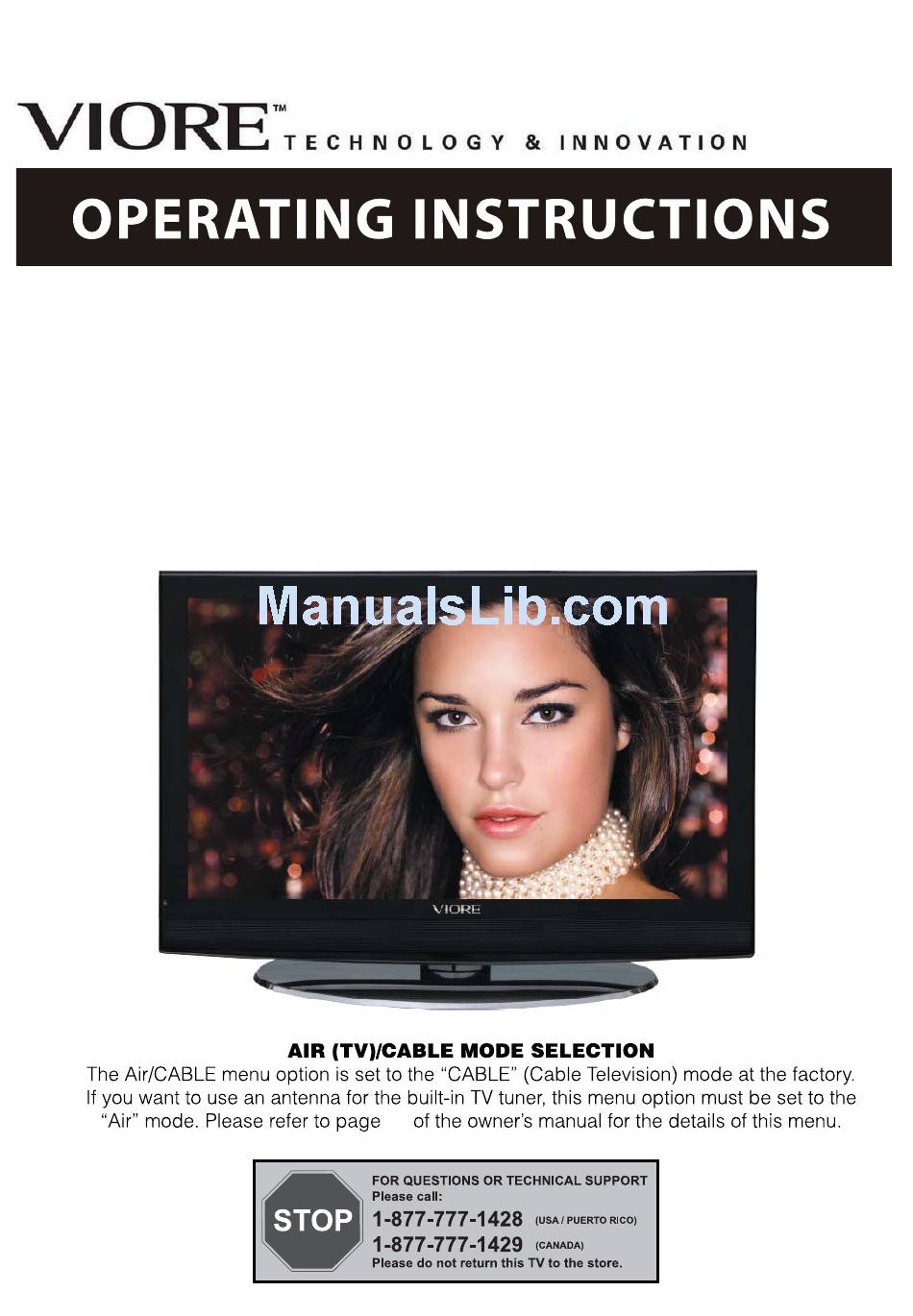

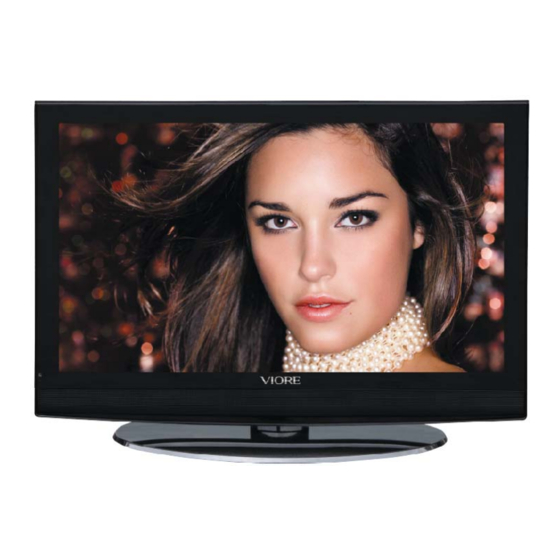

- Page 1 40" Commercial Grade 1080p LCD Television LC40VF5HTL...
-
Page 2: Table Of Contents
Contents Contents Caution Safety Information Instructions for fixing stand Unit and Accessories Product Feature Introduction 1. Front View 2. Rear View 3. Remote Control Basic Operation 10-11 OSD Menu 12-20 1. Picture menu 2. Audio menu 3. Time menu 4. Setup menu 5. -
Page 3: Caution
Caution Caution is intended to alert the user to the presence of un-insulated "dangerous to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 4: Safety Information
Safety Information Safety Information To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below. Electrical safety • The TV set should only be connected to a mains supply which matches that stated on the label on the mains adaptor •... -
Page 5: Instructions For Fixing Stand
Instructions for fixing stand Instructions for fixing stand Note: the pictures below are only for reference 1. Insert stand(part A) into unit(part B). Bottom of the stand 2. Screw the stand in the position as the picture shows. Screws (6 x ST4 x 12F) are provided with stand. -
Page 6: Unit And Accessories
Unit and Accessories and Product Feature Unit and Accessories TV set Stand Security Cover INPUT -/-- PICTURE SOUND SLEEP DISPLAY VOL+ MUTE VOL- EXIT MENU User's manual Remote control Mains cable Lock Batteries: 2xAAA Screws for security plate(6xST4x20C) Screw driver T20 (3xM3x10) (3xST3x10C) Screws for security cover... -
Page 7: Introduction
Introduction Introduction 1. Front View 1. (IR) Infrared Receiver: Receives IR signals from the remote control. (Power on/Standby)LED Indicator: Press Power Button to turn on and off. Indicator on(Red) Standby mode Indicator on(Green) Power on mode The effective receiving range for the signal is 5-8 metres from the front of the remote control window, and 30 to the left or right side and 20 above or below the remote control... -
Page 8: Rear View
Introduction 2. Rear View POWER SWITCH Service R OUT L OUT S-VIDEO R IN L IN AC POWER IN: Connect to an earth 100-240V, 50/60Hz AC outlet with the PowerCable. POWER SWITCH: Switch on or off the power suply. HDMI1/2: Connect them to the video output terminal of DVD.(used in HDTV1 mode) PC AUDIO IN: Connect it to the audio output terminal of PC. -
Page 9: Remote Control
Introduction 3. Remote Control The remote control is using Infra-Red(IR). Point it towards the front of the LCD TV. The remote control may not work correctly if it is operated out of range or out of angle. POWER(red button): Turn the TV on/standby. INPUT INPUT: Press to display the input source menu. -
Page 10: Introduction
Introduction Installing Batteries 1. Open the battery compartment cover on the back of the remote control. 2. Insert two 1.5V AAA size batteries observing the polarity markings inside the battery compartment. Don’t mix different types or used batteries with new ones. 3. -
Page 11: Basic Operation
Basic Operation Basic Operation Power on/off 1. Connect to the power with a mains cable and an adaptor (page9). 2.-To turn on the TV Press POWER button on the TV or remote control. -To turn off the TV Press POWER button on the TV or remote control. Input Source select Press INPUT button on the TV set or remote control to display the input source menu, and use CH+/- button on the TV set or... -
Page 12: Basic Operation
Basic Operation Basic OSD Menu operation Press MENU button to display the OSD menu as below: Main menu Picture, Audio, Time, Setup, Lock, Channel Submenu (Picture menu for example) Hint you should operate the OSD menu according to the hint. button to select the main menu, and press button to enter the submenu. -
Page 13: Osd Menu
OSD Menu OSD Menu 1. Picture menu Description Picture mode: Select between Standard, Dynamic, Mild, Sports and User. You may select the picture mode directly by pressing the PICTURE button on the remote control. Contrast: Control the difference between the bright and dark regions of the screen picture. Brightness: Adjust brightness of the picture. -
Page 14: Audio Menu
OSD Menu 2. Audio menu Flat Description Sound Mode: Select your desired picture mode as follow: Flat, Music, Movie, Sports and User You may select the sound mode directly by pressing the SOUND button on the remote control. Bass: Low frequencies intensity. Treble: High frequencies intensity. -
Page 15: Time Menu
OSD Menu 3. Time menu Description Sleep timer: You may set the automatic shutdown timer choosing from 5 to 240 minutes, or deactivate this function. Time zone: Daylight Saving Time: Select between On and Off. Clock: User can not change time manually during DTV mode, for time is from signal source directly. -
Page 16: Setup Menu
OSD Menu 4. Setup menu 16:9 PC SETUP Closed Caption Description Menu Language: Select OSD menu language. Transparency: Turn on or off the transparency menu function. Zoom Mode: Select the zoom mode between 16:9, 16:9 zoom, 4:3, 4:3 zoom. Noise reduction: Select the noise reduction mode between Strong, Off, Weak and Middle. -
Page 17: Lock Menu
OSD Menu 5. Lock menu Description Change password: Lock: don’t work. MPAA: Canada: Canada English: Canada French: Reset RRT:... -
Page 18: Channel Menu
OSD Menu 6. Channel menu Setup Picture Audio Time Lock Channel Cable Air/Cable Auto Scan Favorite Show Hide Channel No. Channel Label Good DTV Signal Move MENU Description Air/Cable: Allow you to select antenna between Air and Cable. If you selet “Cable”, the following items(Favorite, Show/Hide, Channel NO, Channel Label and DTV Signal) are unable to use. - Page 19 OSD Menu Show/Hide: Channel No.: Channel Label: DTV Signal:...
-
Page 20: Specialty Hotel And Commercial Features
Specialty Hotel and Commercial Features Specialty Hotel and Commercial Features Securing the TV This TV can be secured to the surface of a desk or table using the included security plate and lock. To secure the TV: Affix the security plate firmly to the surface of a desk or table in the position where you would like the TV to be located using 6xST4x20C type screws. - Page 21 Specialty Hotel and Commercial Features Lower the TV carefully onto the security pin. Always use 2 or more people for this task. Lock the TV to the security pin using the included lock. Swivel Stand Optimum viewing angle for your guest. Using the connector security cover This TV includes a metal security cover to restrict access to the TV’s connectors.
- Page 22 Specialty Hotel and Commercial Features Bend cables downwards and tie together Fix cover in place with provided 6 x security screws and screwdriver. Take care not to capture cables between TV and cover. 3xM3x10 Screw driver T15 3xST3x10C...
- Page 23 Specialty Hotel and Commercial Features Configuring Hotel Mode settings This TV includes a specialized Hotel Mode Menu that allows you to configure settings for hotel and commercial use. You may restrict users’ access to TV features and control channel and volume settings. Start-up Channel Start-up Channel Num.
- Page 24 Specialty Hotel and Commercial Features Details of settings are below (2) To block access to tuner settings Set Channel Menu Display to ON. User cannot access channel menu so tuner settings cannot be changed. (3) To lock channel to current selection Select the channel desired for viewing Set Channel Change to OFF.
-
Page 25: Specialty Hotel And Commercial Features
Specialty Hotel and Commercial Features Cloning Support Master TV settings can be easily transferred to multiple guest room TVs using the optional Cloning Tool CL100. Please refer to CL100 user manual for details. Master TV TVs for Guest Rooms Cloning Tool Model: CL100 (Optional) Upload setting Download setting... -
Page 26: Simple Troubleshooting
Simple Troubleshooting Simple Troubleshooting If the display fails or performance dramatically deteriorates check the Display in accordance with the following instructions.Remember to check the peripherals topinpiont the source of the failure. If the display still fails to perform as expected,connect your helpline for assistance. No power - Check all connections to the TV. - Page 27 450cd/m 4000:1 8W x 2 1920 x 1080 S-VIDEO VIDEO AUDIO(L/R) 250W * Product specifications and appearance are subject to change without notice.
- Page 28 VIORE will repair or if repairs cannot be made, VIORE will replace this Product at no charge if the Product is defective as specified in this limited warranty during the limited warranty period. VIORE may use new or remanufactured parts or products to repair or replace the Product at its sole discretion.
