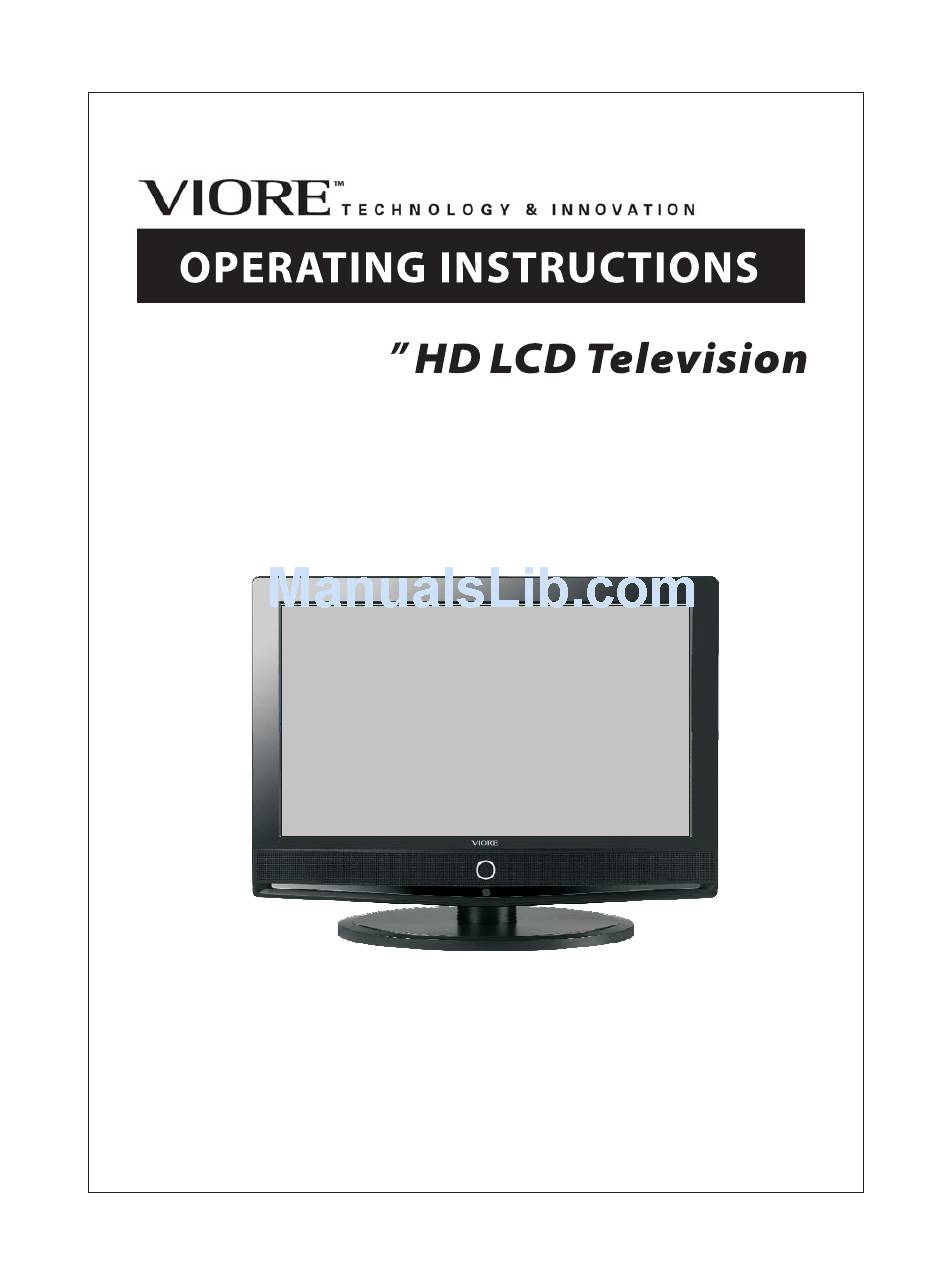

- Page 1 LC42FHZ55...
-
Page 2: Table Of Contents
Contents Safety and warnings... 2-4 Introduction..5 Installation... 6-9 emote Control..10 Operation...11-14 Trouble Shooting... 15... -
Page 3: Safety And Warnings
IMPORTANT SAFETY INSTRUCTION 1.Read these safety instructions. 2.Keep these safety instructions. 3.Heed all warnings. 4.Follow all safety instructions. 5.Do not use this apparatus near water. 6.Clean only with dry cloth. 7.Do not block any ventilation openings. Install in accordance with the manufacturers instructions. 8.Do not install near any heat sources such as radiators , stoves, or other apparatus (including amplifiers)that... - Page 4 High voltages are used in the operation of this television receiver. Do not remove the cabinet back from your set. Refer servicing to qualified service personnel. To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture. Do not drop or push objects into the television cabinet slots or openings.
-
Page 5: Safety And Warnings
TV with a dry soft cloth. During thunder and lighting, unplug the power cord and antenna cord to prevent damage to your TV. All repairs to this TV should only be performed by qualified TV service personnel. -
Page 6: Introduction
Main features Used as Television, display terminal,PC display High luminance,wide viewing angle 3 BTSC 4 ATSC digital signals and NTSC analog signals TV. Main parameter Viewing Picture Size(diagonal) Resolution: Aspect Ratio: TV System: Video Signal System: Receiving Channel: Power consumption:... -
Page 7: Installation
1 SOURCE Display the input source menu. 2 MENU isplay main MENU. 3 CH+/CH- In TV mode press CH+ or CH- to change the channel up and down. In MENU mode, press items . In standby mode, press CH+ or CH- to on the TV. - Page 8 STEPS: Be sure both the TV and computer are set to Power off. 1.Connect VGA and audio cable. 2.Connect the power cord. 3.Power on the TV, switch to VGA mode. 4.Power on the VGA. This sequence is very important. Power cord...
- Page 9 INSTALLATION ANTENNA Note: Aerial connections:IEC(female). Input impendance:75 unbalanced.
-
Page 10: Installation
AV EQUIPMENT This TV provides two groups of AV ,two S-Video,one group of YPbPr for convenient connection to VCR,DVD or other video equipment,three group of HDMI for HD signal input Please refer to the owner s manual of the equipment to be connected as well. -
Page 11: Remote Control
REMOTE CONTROL POWER To set the TV standby or on. NUMBER KEY For direct access to program. MENU To display TV menu or to return to the previous menu. CURSOR To move within the menu. EXIT Used to exit menu. VOL+/- To adjust sound level. -
Page 12: Operation
1. PICTURE MENU The first item of the MENU is PICTURE MENU. You can adjust picture effect here, such as contrast, brightness, etc. Press to select, press to adjust, press MENU to exit. Audio Timer Setup Channel Picture Picture mode Standard Contrast Brightness... - Page 13 1). Advanced: In PC Mode is available. Press button to select Advanced item , Press button, the screen will display as follow: Picture Audio Timer Setup H-pos V-pos Clock Phase Auto Select Adjust Menu Exit (1).H-Pos:Adjust the horizontal position of the screen. (2).V-Pos:Adjust the vertical position of the screen.
- Page 14 US: Press button, the screen will display as follow: Setup Picture Audio Timer Channel MPAA Select Adjust Menu Exit 1):TV: Press button, the screen will display as follow: Picture Audio Setup Channel Timer TV rating TV-Y TV-Y7 TV-G TV-PG TV-14...
-
Page 15: Operation
Menu Exit 1). Air/Cable: select air TV signal or cable TV signal. 2). Auto Scan: If it's the first time using the TV, it should scan all the TV channels first, press the button to confirm, you will see below... -
Page 16: Trouble Shooting
Trouble shooting Trouble phenomenon Symptom Picture Snow Ghost Interference Normal Picture No picture No colour Picture breaking up No colour The LCDTV panel is built with very high precision technology giving you fine picture details in vibrant color. Occasionally, a few non-active pixels may appear on the screen as a fixed point of red, green, blue, black or white.
