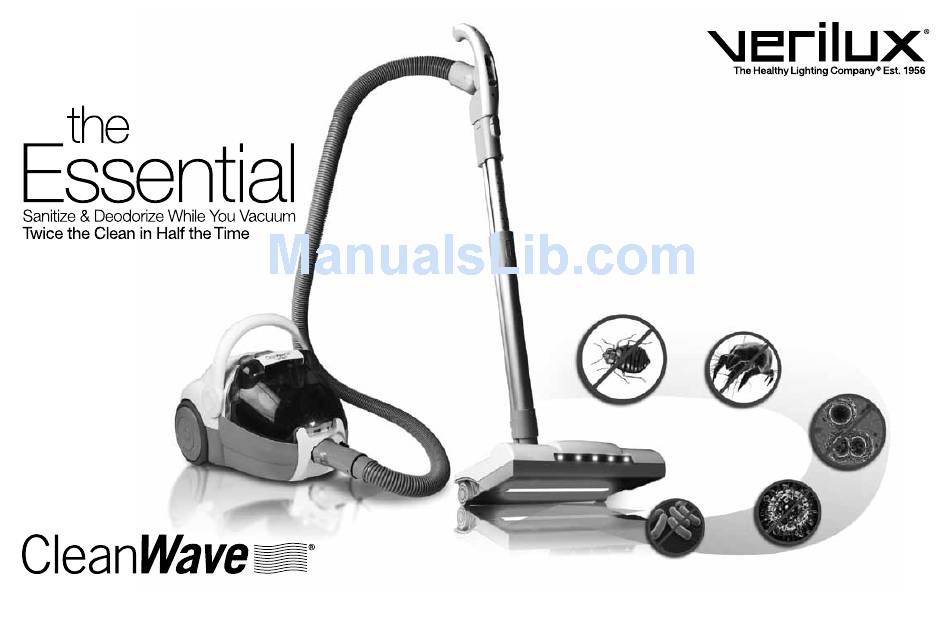

Owner's Manual
Bed Bugs
Dust Mite &
& Eggs
Flea Eggs
Influenza A
(H1N1)
MRSA
E. coli
Sanitizing Bagless Vacuum
VH04WW1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the the Essential VH04WW1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Verilux the Essential VH04WW1

Summary of Contents for Verilux the Essential VH04WW1

  • Page 1 Owner’s Manual Bed Bugs Dust Mite & & Eggs Flea Eggs Influenza A (H1N1) MRSA E. coli Sanitizing Bagless Vacuum VH04WW1...

  • Page 2: Table Of Contents

    4.2 Handle and Hose ......13 catalog and online. Visit us on the web at www.verilux.com 4.3 Sanitizing Power Head .

  • Page 3: Important Safety Instructions

    • Do not use with a damaged cord or plug. If appliance is not working as it should, has been dropped, left outdoors or dropped into water, return it to a service center per Verilux customer service. • To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug.
  • Page 4 1. Important Safety Instructions — continued • Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord. • Do not handle plug or appliance with wet hands. • Turn off all controls before unplugging. • Use extra care when cleaning on stairs. •...
  • Page 5 1. Important Safety Instructions — continued WARNING: Do not override vacuum safety features — prolonged and direct exposure to UV-C light can cause serious skin burn and eye inflammation. Direct light radiation from the bulbs used in this vacuum is harmful to the eyes and skin. Do not attempt to override or defeat safety mechanisms exposing eyes or skin to direct UV-C light.
  • Page 6 • Ne pas utiliser si le cordon ou la fiche est endommagé. Si l’appareil ne fonctionne pas correctement, qu’il a été échappé, laissé à l’extérieur ou plongé dans l’eau, le retourner dans un centre de réparation selon les instructions du service à la clientèle de Verilux.
  • Page 7 1. Instructions de sécurité importantes — suite • Pour réduire le risque de décharge électrique, cet appareil est muni d’une fiche polarisée (une broche est plus large que l’autre). La fiche ne s’insère dans une prise polarisée que dans une seule direction. Si la fiche ne s’insère pas complètement dans la prise, l’essayer dans l’autre sens. Si elle ne s’insère toujours pas, contacter un électricien qualifié...
  • Page 8 1. Instructions de sécurité importantes — suite • Une réparation est nécessaire si l’appareil est endommagé, par exemple, si le cordon ou la fiche du cordon est endommagé, si un liquide a été renversé ou si des objets sont tombés dans l’appareil, si ce dernier a été exposé à la pluie ou à l’humidité, s’il ne fonctionne pas normalement ou s’il a été échappé. •...
  • Page 9 1. Instructions de sécurité importantes — suite LIBÉRATION POTENTIELLE DE DANGER AVERTISSEMENT SPORES DE MOISISSURE Risque de rayonnement ultraviolet (UV-C) L’application d’une lumière UV-C sur des moisissures existantes peut causer une irritation La surexposition causera des lésions respiratoire et des symptômes allergiques. Ne importantes aux yeux et possiblement à...

  • Page 10: Cleanwave ® Sanitizing Bagless Vacuum

    — a leading cause of asthmatic and allergic* reactions. 2.2 Special Functions Your new Verilux CleanWave Sanitizing Bagless Vacuum features include: • A powerful Ultraviolet (UV-C) illumination system that with regular use can eliminate up to 99.9% of germs, including H1N1 and †...

  • Page 11: Carton Contents

    3. Carton Contents Remove all parts from the carton and identify each item as shown below. Make sure all items are removed before recycling the packaging material. 1. Sanitizing Power Head 2. Vacuum Canister 3. Handle and Hose 4. Telescoping Wand Crevice Tool, Dusting Brush and Upholstery Tool Owner’s Manual, Other Literature...

  • Page 12: Features

    4. Features 4.1 Vacuum Canister 1. ON/OFF Switch 2. Suction Control Slider 3. Low Airflow Indicator 4. Canister Handle 5. Retractable Power Cord 6. Cord Rewind Button 7. Dirt Cup 8. Release Latch 9. Canister Inlet 10. Canister Power Receptacle 11.

  • Page 13: Handle And Hose

    4. Features — continued 4.2 Handle and Hose 1. Power Head ON/OFF Switch 2. Airflow Selector 3. Wand Coupler 4. Hose Power Plug 5. Canister Coupler 6. Release Button...

  • Page 14: Sanitizing Power Head

    4. Features — continued 4.3 Sanitizing Power Head 1. Mode Selector Switch 2. Mode Indicator 3. Floor Selector 4. Syphon Receptacle 5. Syphon Release 6. Headlight 7. Sanitizing Light Bulb 8. Bulb Cover 9. Floor Sensor (safety switch) 10. Powered Brush Roll 11.

  • Page 15: Telescoping Wand

    4. Features — continued 4.4 Telescoping Wand 1. Wand Receptacle 2. Release Button 3. Release Cuff 4. Sanitizing Power Head Coupler 4.5 Accessories 1. Crevice Tool 2. Dusting Brush 3. Upholstery Tool...

  • Page 16: Assembly

    5. Assembly Note: Before assembling or disassembling, always ensure that the CleanWave Sanitizing Bagless Vacuum has been unplugged from ® the electrical outlet. 5.1 Connecting the Hose 1. Align the latch of the Canister Coupler (A) with the Canister Inlet (B) and push until the latch clicks. To disconnect, press the Release Button (C) on the Canister Coupler (A) and pull out.

  • Page 17: Connecting The Telescoping Wand

    5. Assembly — continued 5.2 Connecting the Telescoping Wand 1. Align the Wand Coupler (A) with the Wand Receptacle (B) and push together until the latch clicks. To disconnect, press the Release Button (C) and pull apart. 2. To operate the Telescoping Wand, grab the Release Cuff (D) and push it forward to extend the wand and pull it back to contract the wand.

  • Page 18: Cleanwave Sanitizing Bagless Vacuum Operation

    6. CleanWave Sanitizing Bagless Vacuum Operation ® 6.1 Handle 1. Grasp the Canister Handle (A) to move the CleanWave Sanitizing Bagless ® Vacuum from room to room. Before moving, make sure the Dirt Cup is secured and the canister is unplugged from the electrical outlet.

  • Page 19: Canister

    6. CleanWave Sanitizing Bagless Vacuum Operation — continued ® Vacuum Suction Controls 6.3 Canister 1. ON/OFF Button (A) Press to turn the canister on and off. 2. Suction Control Slider (B) Slide to the maximum position (closest to ON/OFF Button) for the maximum suction power.

  • Page 20: Operating Modes

    6. CleanWave Sanitizing Bagless Vacuum Operation — continued ® 6.6 Operating Modes The Sanitizing Power Head has three operating modes: i) Carpet, ii) Sanitize, iii) Both. 1. The Mode Indicator (A) will illuminate as one of three colors depending on the selected operating mode. The Sanitizing Power Head will be controlled as shown in Table 6-1, with the default power-up mode being Carpet Mode: Table 6-1.
  • Page 21 6. CleanWave Sanitizing Bagless Vacuum Operation — continued ® Carpet Mode Select Carpet Mode for conventional vacuuming with a Powered Brush Roll and Powerful Suction. Use this setting when you wish to operate the power brush without the sanitizing light. The Mode Indicator will illuminate as RED. Sanitize Mode Select the Sanitize Mode when you want to sanitize and vacuum your carpets and floors with Sanitizing Light and Powerful Suction.

  • Page 22: Using The Accessories

    6. CleanWave Sanitizing Bagless Vacuum Operation — continued ® 6.7 Using the Accessories The accessories can be used by sliding them onto either the Wand Coupler of the Hose and Handle or to the Sanitizing Power Head Coupler of the Telescoping Wand. Crevice Tool Dusting Brush Upholstery Tool...

  • Page 23: Care And Maintenance

    7. Care and Maintenance Note: Always unplug the CleanWave Sanitizing Bagless Vacuum from ® the electrical outlet prior to completing any care and maintenance. Dirt Cup Empty the Dirt Cup (A) after each use. 7.1 How to Empty 1. Disconnect Power Cord from electrical outlet. 2.

  • Page 24: Cleaning And Replacing Filters

    7. Care and Maintenance — continued 7.2 Cleaning and Replacing Filters For best performance, clean filters after each use. Replace filters periodically depending on frequency of use and the amount of dirt picked up with each use. Note: If the Power Head Mode Indicator light begins to rapidly blink RED, the airflow may be blocked.

  • Page 25: Sponge Filter

    7. Care and Maintenance — continued 7.4 Sponge Filter The Sponge Filter is located behind the HEPA-12 Pre-Filter attached to the Dirt Cup. 1. Access the Sponge Filter by first removing the HEPA-12 Pre-Filter. 2. Grasp Sponge Filter and remove. 3.

  • Page 26: Cleaning And Replacing The Sanitizing Light Bulb

    7. Care and Maintenance — continued 7.7 Cleaning and Replacing the Sanitizing Light Bulb 7.7a The Sanitizing Light Bulb (A) is located on the bottom of the Sanitizing Power Head (B). Note: Before cleaning or replacing the Sanitizing Light Bulb (A), disconnect Power Cord from electrical outlet. Also disconnect the Sanitizing Power Head (B) from the Telescoping Wand.

  • Page 27: Sanitizing Light Bulb Disposal

    Note: Use only Verilux Sanitizing Light Bulbs. Use of non-Verilux light bulbs can result in damage to the unit. To order a replacement Verilux Sanitizing Light Bulb, refer to the Replacement Part List on Table 7-1. 7.8 Sanitizing Light Bulb Disposal If disposing of a Verilux Sanitizing Light Bulb, follow local regulations for proper disposal.

  • Page 28: Replacement Part List

    VH04RF1 $14.95 *Prices do not include Shipping & Handling, and are subject to change without notice. To order please visit our web site at www.verilux.com or Call our Order Department at 1-800-454-4408 Monday – Saturday 8 AM – 10 PM; Sunday 9 AM – 8 PM Eastern Time...

  • Page 29: Troubleshooting

    8. Troubleshooting 8.1 Troubleshooting To troubleshoot your vacuum, see Table 8-1 below. Note: Always turn off the vacuum and disconnect the power cord from the electrical outlet before troubleshooting or servicing. Table 8-1 Troubleshooting Your Vacuum Problem Possible Cause Possible Solution Reference Switch not “ON”...
  • Page 30 8. Troubleshooting — continued Problem Possible Cause Possible Solution Reference Sanitizing Power Head Coupler or Wand Assure Sanitizing Power Head and Hose/Handle Sanitizing Power Coupler not securely fastened. are firmly connected. Head will not Hose Power Plug not plugged into run, or runs Firmly insert Hose Power Plug.

  • Page 31: Five Year Limited Warranty

    ATTENTION! ONCE OPENED, PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE WHERE IT WAS PURCHASED FOR REPAIR OR REPLACEMENT! Many questions may be answered by visiting www.verilux.com, or you may call our Customer Service Department at 800-786-6850 during normal business hours.
  • Page 32 Printed in China for Verilux, Inc. © Copyright 2010 Verilux, Inc. All rights reserved. VH04-MAN-Rev14...
