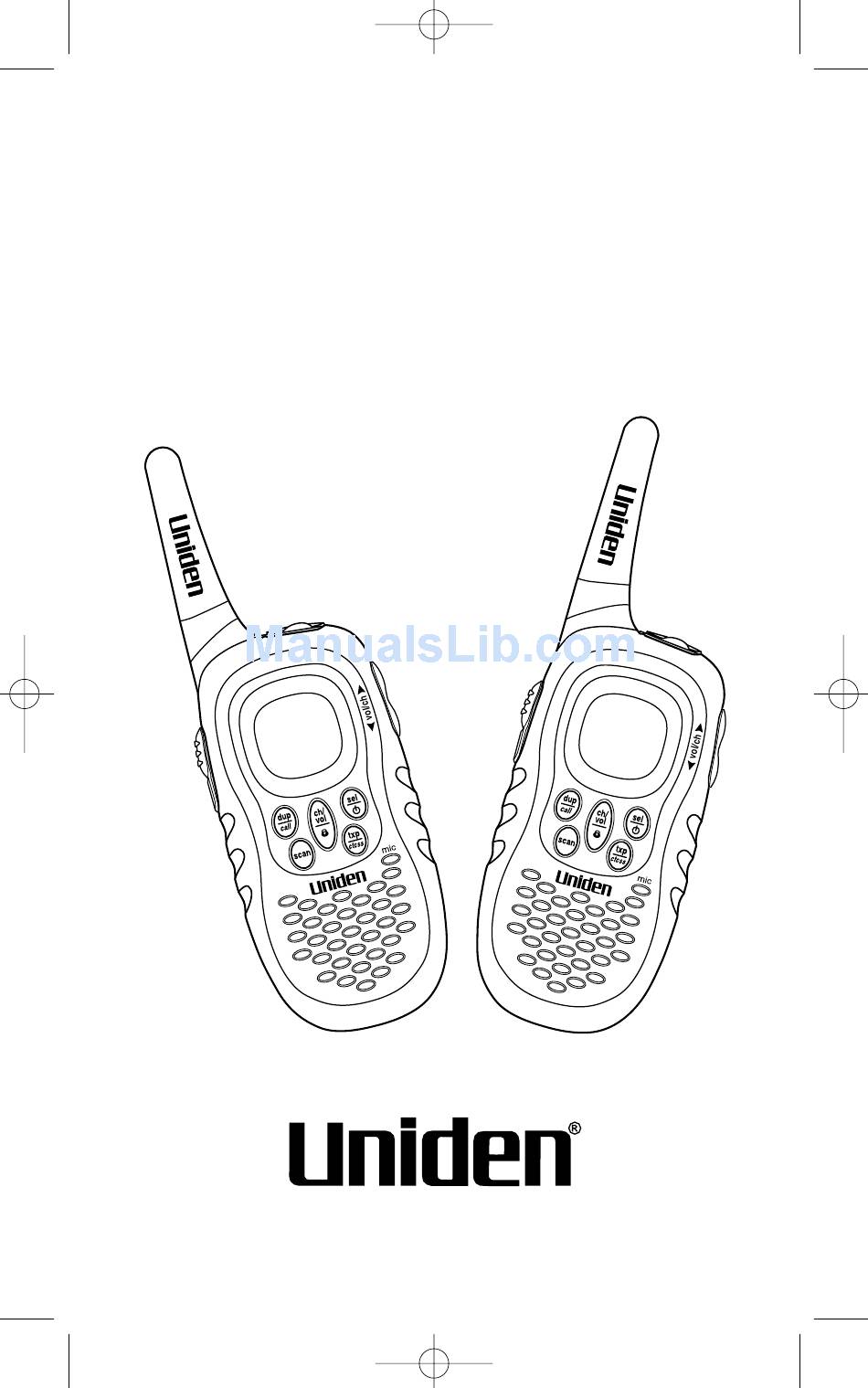

- Page 1 UT928ZH_UH060_ENG_0929 9/29/04 3:26 PM Page 1 UH060SX-2 Operating Guide To bring outstanding wireless communication products to people's lives throughout the world.
-
Page 2: Control & Indicators
UT928ZH_UH060_ENG_0929 CONTROL & INDICATORS INCLUDED IN YOUR PACKAGE: • UH060SX Radio (2) • Operating Guide • Belt Clip (2) 1 Antenna 2 PTT (Push-To-Talk) Button 3 Monitor Button 4 Duplex/Call Key 5 Scan Key 6 Channel/Volume/Keylock Key 7 Speaker 8 Headset Jack 9 Volume/Channel up Key 10 Volume/Channel down Key 11 Power On/Off/Select Key... -
Page 3: Getting Started
Do not expose this product to Rain or Moisture. BATTERY INSTALLATION Your UH060SX-2 unit uses the included NiMH battery pack for power. The unit can be powered with optional 4 AAA ALKALINE batteries. If you don't use the UH060SX-2 for long periods, Uniden recommend removing the batteries. -
Page 4: Low Battery Alert
Plug the AC adaptor into the rear of the charge cradle and into the mains power. Place the UH060SX-2 into the charge cradle. The charge light will come on to indicate the unit is charging. Before operating the UH060SX-2, charge the battery pack for 16 hours. -
Page 5: Operation
UT928ZH_UH060_ENG_0929 9/29/04 3:26 PM Page 5 OPERATION POWER ON/OFF Press and hold select/power key to turn the radio on. A channel number will appear on the display. Press and hold select/power key to turn the radio off. VOLUME Press volume/channel L or M key to increase or decrease the volume level. -
Page 6: Selecting A Channel
UH060SX-2 will exit from the channel select mode. TO TRANSMIT AND RECEIVE The UH060SX-2 uses the 40 UHF-CB Channels. For your reference a list of the available channels and corresponding frequencies is printed on page 11. 1. Before you transmit, listen for activity on the selected channel. - Page 7 The RF transmit power of the UH060SX-2 is selectable between 0.1/0.5/1.5 W. AUTOMATIC SQUELCH FEATURE The UH060SX-2 is equipped with an Automatic Squelch System which shuts off weak transmissions and unwanted noise. MONITOR This feature enables users to listen for weak signals on the current channel at the press of a button.
-
Page 8: To Operate In Duplex Mode (Repeaters)
If dup/call key is pressed when the channel is not from CH01 - CH08, an error tone sounds. SCANNING The scan function scans all channels and stops at an active channel. When the signal stops, the UH060SX-2 waits 2 seconds (Reply Delay) before scanning resumes. 9/29/04 3:26 PM... -
Page 9: Reply Delay
2. Press select/power key or scan key to cancel. REPLY DELAY While scanning, the UH060SX-2 stops at a busy channel and receives a transmission. When the received signal is over, the unit will wait for 2 seconds for the return of the signal, otherwise, the radio resumes scanning. -
Page 10: Transmitting A Call Tone
Press select/power key twice to confirm the setting and exit to standby mode. TRANSMITTING A CALL TONE Your UH060SX-2 radio is equipped with 5 selectable call tones that will be transmitted when the dup/call key is pressed and held for 3 seconds. -
Page 11: Uhf Channels & Frequencies
UT928ZH_UH060_ENG_0929 UHF CHANNELS & FREQUENCIES Simplex Mode CH No. Transmit / Receive Frequency (MHz) 476.425 476.450 476.475 476.500 476.525 476.550 476.575 476.600 476.625 476.650 476.675 476.700 476.725 476.750 476.775 476.800 476.825 476.850 476.875 476.900 Channels 05 and 35 are Emergency Channels and channel 11 is a Calling Channel. -
Page 12: Warranty
(E) Used in conjunction with any equipment or parts or as part of a system not manufactured by Uniden, (F) Installed, programmed or serviced by anyone other than an authorised Uniden Repair Agent, or (G) Where the Serial Number label of the product has been removed or damaged beyond recognition.
