User Manual
A. Teaming Part
a. Create Teaming Flow

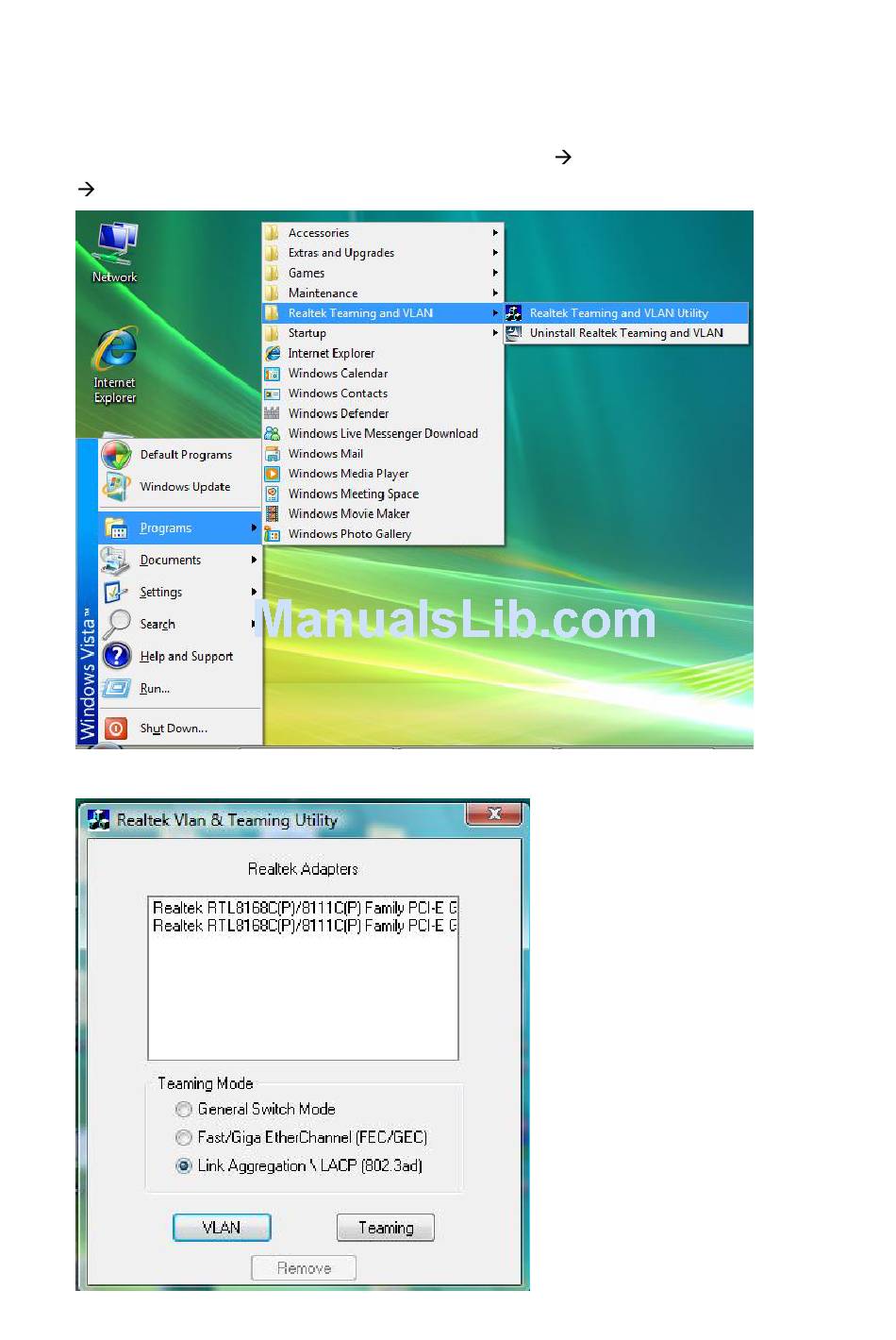

(i) From the start up menu, left click the icon in Programs Realtek Teaming and VLAN
Realtek Teaming and VLAN Utility, as shown in the figure below:
(ii) The initialize user interface is showed below:
Advertisement
Related Manuals for Gigabyte GA-EX38-DQ6
Summary of Contents for Gigabyte GA-EX38-DQ6
- Page 1 A. Teaming Part a. Create Teaming Flow (i) From the start up menu, left click the icon in Programs Realtek Teaming and VLAN Realtek Teaming and VLAN Utility, as shown in the figure below: (ii) The initialize user interface is showed below:...
- Page 2 (iii) Teaming needs to set three parts 1. select adapters (at least two adpaters) 2. select teaming mode There are three teaming modes for user choosing. (Default = 802.3ad) (1) General Switch Mode This mode is supported to general switch (without teaming function swtich). (2) FEC/GEC The mode needs the switch supports FEC/GEC.
- Page 3 3. after selecting teaming adapter and teaming mode, click teaming button (iv) If the Teaming created completely, the Dialog will show “Create Virtual Adapter For Teaming Complete” and click OK. (There are two message boxes which are “Start Disable Adapters” and “Start unbinding” show during creating teaming process) The step will cost one or two minutes.
- Page 4 (vi) Network Component has a new Virtual Adapter For Teaming b. Teaming Notes (i) The gigabit switch prefer supporting teaming function (likely FEC/GEC, LACP…) If the gigabit switch doesn’t support teaming function, the performance of Inbound Traffic (Rx) will only have one adapter performance. (ii) Take care the teaming switch how to decide the port to send packets Although the teaming switch could upgrade the Rx performance, some particulars would cause the Rx performance same with not using gigabit teaming switch.
- Page 5 FEC/GEC and the mode of the teaming switch is LACP, the teaming switch will send LACP packets to the teaming server and wait the response form the teaming server. But the teaming server will not reply the teaming switch due to set FEC/GEC mode. So, the teaming is failed.
- Page 6 (ii) If the Vlan removed completely, the Dialog shows “Remove Teaming Virtual Adapter Finnished” and click OK.
- Page 7 B. Vlan Part a. Create Vlan Flow (i) From the start up menu, left click the icon in Programs Realtek Teaming and VLAN Realtek Teaming and VLAN Utility, as shown in the figure below: (ii) The initialize user interface is showed below:...
- Page 8 (iii) Click to select one adapter for Vlan (one adapter selected) (iv) Click the Vlan button and start to create Vlan...
- Page 9 (v) If the Vlan created completely, the Dialog will show “Create Virtual Adapter For Vlan Complete” and click OK. (vi) Network Component has a new Virtual Adapter For Vlan...
- Page 10 (vii)Select the virtual Adapter and right-click to select “Properties” (viii) The below figure is showed the properties. There, click the “Configure “Button to setup the value of Vlan ID.
- Page 11 (ix) Select Advanced Page and Click Vlan ID properties to setup the value.
- Page 12 b. Remove Vlan Flow (i) If without closing the user interface, directly click remove button. (The selected adapters don’t care) If closing the user interface and reopen it, directly click remove button (Doesn’t need to select the adapter, it will remove all the virtual adapter)
- Page 13 (ii) If the Vlan removed completely, the Dialog shows “Remove VLAN Virtual Adapter Finnished” and click OK.
