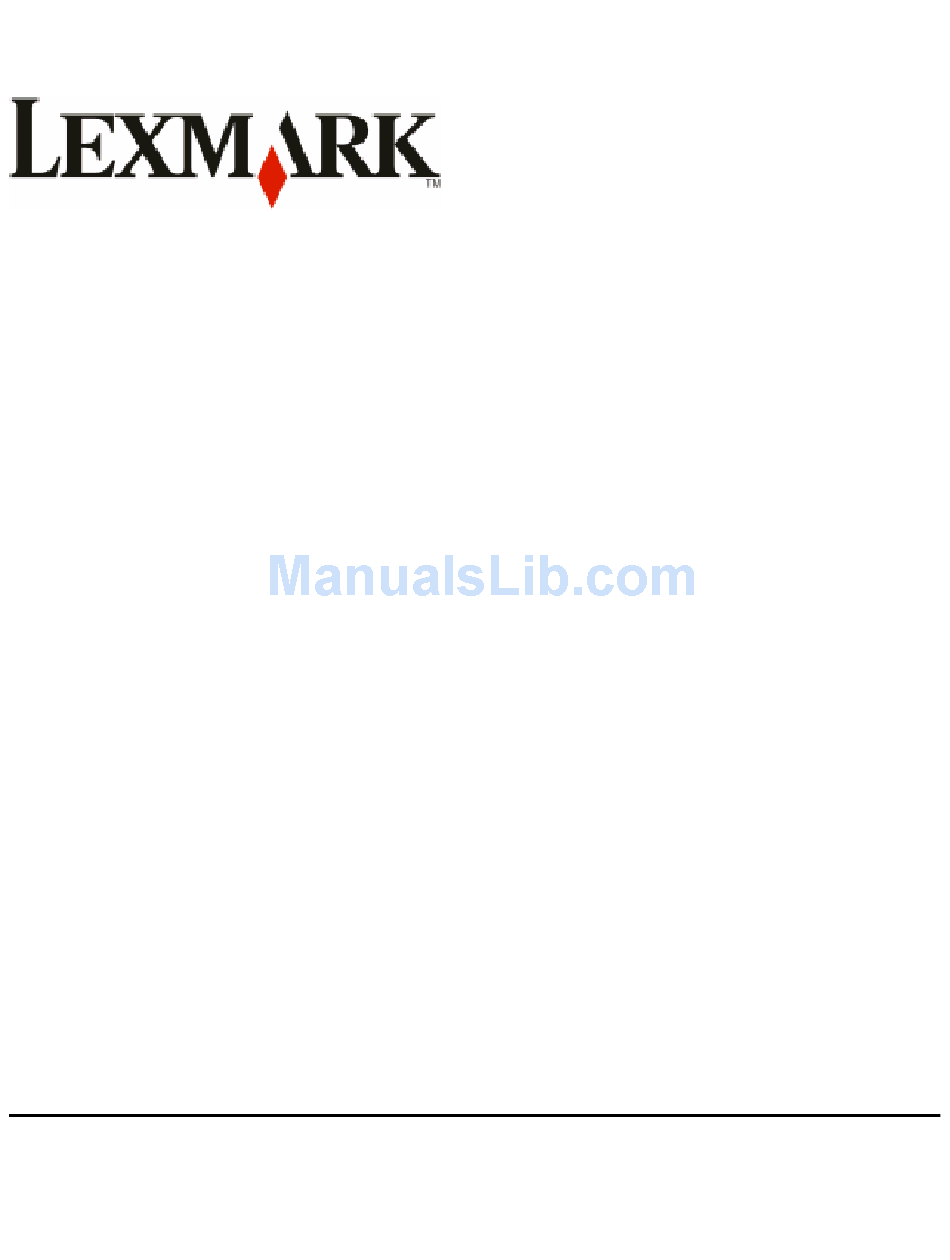

- Page 1 Lexmark™ X46x Maintenance Guide September 2009 www.lexmark.com...
-
Page 2: Table Of Contents
Contents Maintaining the printer................3 Cleaning the exterior of the printer......................3 Cleaning the scanner glass........................3 Cleaning the ADF separator rollers......................4 Adjusting scanner registration........................5 Storing supplies............................6 Checking the status of supplies.........................7 Checking the status of supplies from the printer control panel.................7 Checking the status of supplies from a network computer................7 Ordering supplies............................8 Ordering toner cartridges...........................8 Ordering a photoconductor kit...........................8... -
Page 3: Maintaining The Printer
Maintaining the printer Periodically, certain tasks are required to maintain optimum print quality. Cleaning the exterior of the printer Make sure that the printer is turned off and unplugged from the wall outlet. CAUTION—SHOCK HAZARD: To avoid the risk of electric shock when cleaning the exterior of the printer, unplug the power cord from the wall outlet and disconnect all cables to the printer before proceeding. -
Page 4: Cleaning The Adf Separator Rollers
Wipe the areas shown and let them dry. Close the scanner cover. Cleaning the ADF separator rollers After you have copied over 50,000 copies using the ADF, clean the ADF separator rollers. Open the ADF cover. Unlock the separator roll. Remove the separator roll. -
Page 5: Adjusting Scanner Registration
Reinstall the separator roll. Lock the separator roll. Close the ADF cover. Adjusting scanner registration Scanner Registration is a process to align the scan area with the paper location. To manually adjust the scanner registration: Turn the printer off. Clean the scanner glass and backing material. Hold down while turning the printer on. -
Page 6: Storing Supplies
To align the scanner glass (flatbed): Place the Quick Test page facedown on the scanner glass. Touch Copy Quick Test. The scanner prints a copy of the Quick Test page. Touch Flatbed. Use the copy of the Quick Test page to adjust the Left Margin and Top Margin settings. Touch Submit. -
Page 7: Checking The Status Of Supplies
Corrosive gases • Heavy dust • Checking the status of supplies A message appears on the display when a replacement supply item is needed or when maintenance is required. Checking the status of supplies from the printer control panel Make sure the printer is on and Ready appears. On the home screen, touch Status/Supplies. -
Page 8: Ordering Supplies
To order supplies in the U.S., contact Lexmark at 1-800-539-6275 for information about Lexmark authorized supplies dealers in your area. In other countries or regions, visit the Lexmark Web Site at www.lexmark.com or contact the place where you purchased the printer. -
Page 9: Ordering Adf Replacement Parts
Ordering ADF replacement parts Order ADF replacement parts if you experience problems with paper double-feeding or failing to feed through the Automatic Document Feeder. Part name Part number ADF input tray 40X5470 ADF separator pad 40X5472 ADF separator roll 40X5471 Moving the printer to another location Warning—Potential Damage: Damage to the printer caused by improper moving is not covered by the printer warranty. -
Page 10: Shipping The Printer
Shipping the printer When shipping the printer, use the original packaging or call the place of purchase for a relocation kit. Maintaining the printer...
