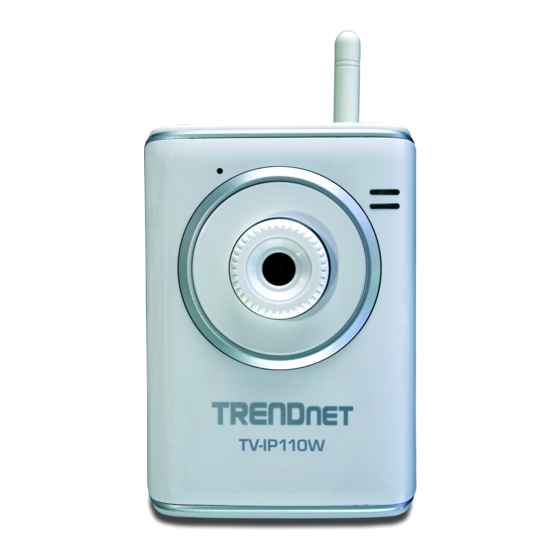

TRENDnet TV-IP110W Quick Installation Manual
Hide thumbs
Also See for TV-IP110W:
- Specifications (3 pages) ,
- User manual (96 pages) ,
- Quick installation manual (13 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TRENDnet TV-IP110W
Summary of Contents for TRENDnet TV-IP110W

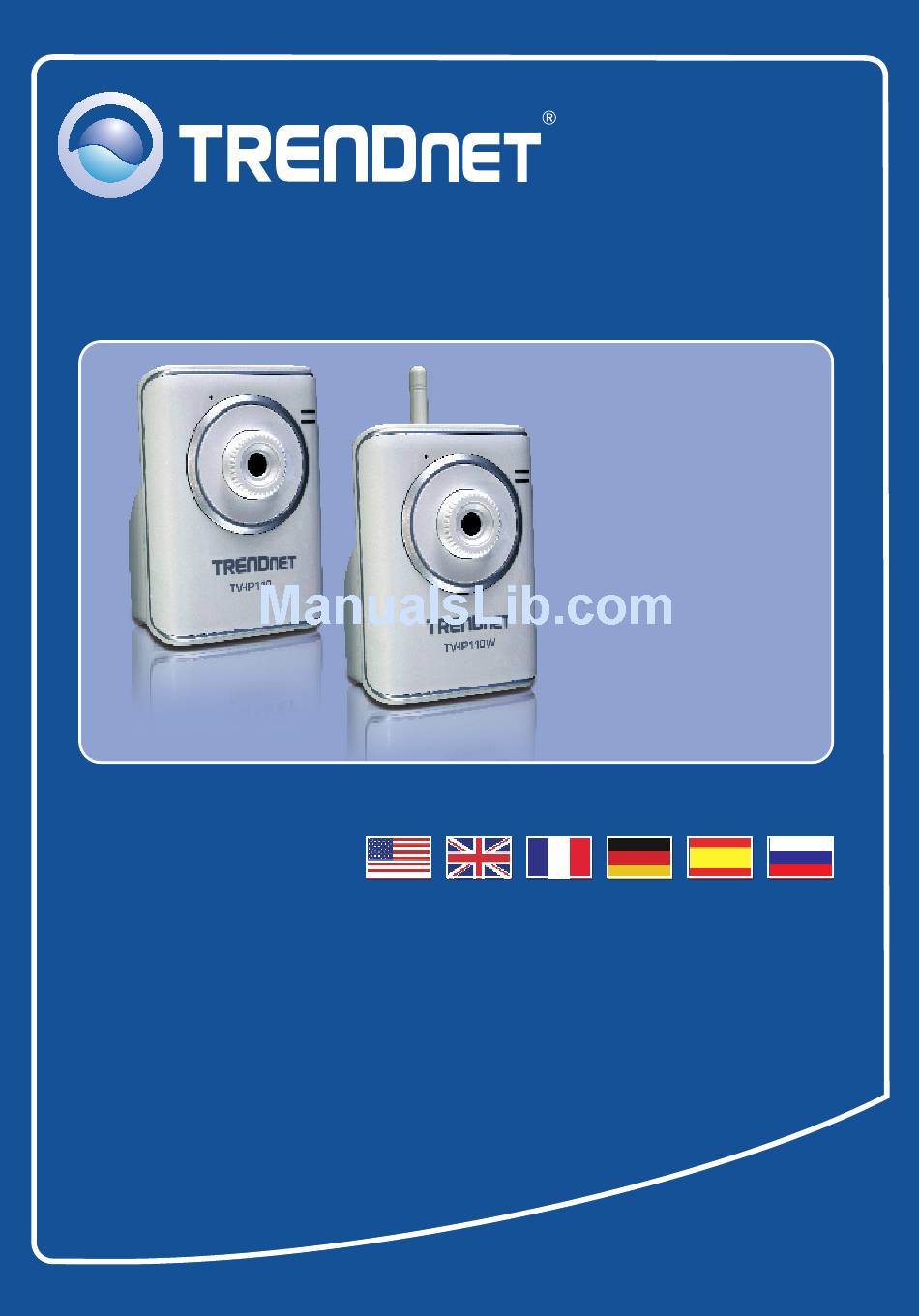

- Page 1 Quick Installation Guide TV-IP110 TV-IP110W...
-
Page 2: Table Of Contents
Table of Contents Table of Contents English ...................... 1 1. Before You Start ................. 2. Hardware Installation ................. 3. Configure the Internet Camera ............Troubleshooting ..................Version 10.19.2007... -
Page 3: English
1. Before You Start Package Contents TV-IP110/TV-IP110W Quick Installation Guide Utility CD-ROM AC Power Adapter (5V, 2.5A) 1 x 2dBi Detachable Antenna TV-IP110W) 1.8m (5.9 ft) Cat.5 Fast Ethernet cable System Requirements 10/100Mbps Ethernet CPU: Pentium 4 1GHz processor or above Memory: 256MB RAM or above/ 512MB RAM or above (Windows Vista) VGA Resolution: 800 x 600 or above Web Brower: Internet Explorer (6.0 or higher) - Page 4 Application Internet Camera Server (TV-IP110) Cable/DSL 4-Port Broadband Router (TW100-S4W1CA) Internet Notebook with PC Card Modem (TE100-PCBUSR) 10/100Mbps Wireless Internet Camera Server (TV-IP110W) Wireless G Firewall Router (TEW-432BRP) Internet Notebook with Modem Wireless G PC Card (TEW-421PC) 54Mbps English...
-
Page 5: Hardware Installation
2. Hardware Installation 1. Attach the Antenna. (TV-IP110W) 2. Connect a RJ-45 network cable from a Switch/Router to the Ethernet port of the Internet Camera. 3. Connect the AC Power Adapter to the Internet Camera Server and then to a power outlet. 4. -
Page 6: Configure The Internet Camera
CD-ROM drive and then click IP Setup. 2. Follow the Installation Wizard instructions and then click Close. 3. Go to Start -> Programs -> TRENDnet -> IPSetup and click IPSetup. 4. Select the Internet Camera and click Change IP. English... - Page 7 5. Configure the IP address to be in the same subnet as your network, type in the Administrator ID and Password and click Change. By default: ID: admin Password: admin 6. Click OK and wait 30 seconds. 7. Click OK. 8.
- Page 8 9. Enter the User name and Password, and then click OK. User Name: admin Password: admin 10. Right click and select Install Active X Control. 11. Click Install. 12. Click Network and then click Wireless. Configure your wireless settings to match your wireless network's settings and then click Apply (Enable/Enter the WEP/WPA key when your...
- Page 9 TV-IP 110W configuration and advanced settings, please refer to the Troubleshooting section, User's Guide on the Utility CD-ROM, or TRENDnet's website at http://www.trendnet.com. Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register...
-
Page 10: Troubleshooting
This will return settings back to factory defaults. The default IP address is 192.168.10.30. The default administrator ID and password is admin. If you still encounter problems or have any questions regarding the TV-IP110/TV-IP110W, please contact TRENDnet’s Technical Support Department. - Page 11 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
- Page 12 Telephone: +(31) (0) 20 504 05 35 English/Espanol - 24/7 Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register 20675 Manhattan Place Torrance, CA 90501 Copyright ©2007. All Rights Reserved. TRENDnet.
