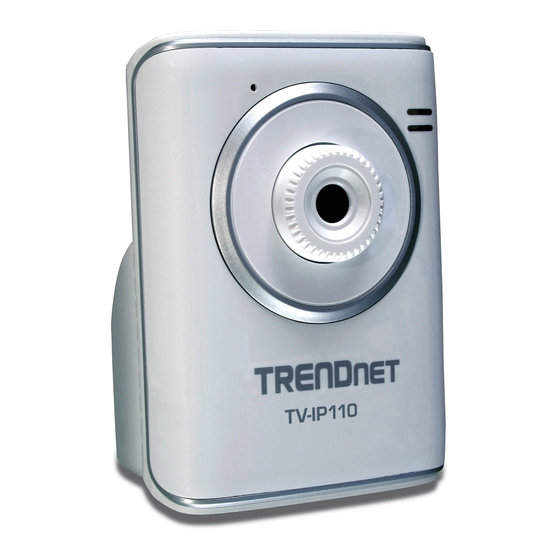

TRENDnet TV-IP110 - SecurView Internet Surveillance Camera Quick Installation Manual
  1. Manuals
  2. Brands
  3. TRENDnet Manuals
  4. Security Camera
  5. TV-IP110 - SecurView Internet Surveillance...
  6. Quick installation manual

TRENDnet TV-IP110 - SecurView Internet Surveillance Camera Quick Installation Manual

Quick installation guide
Hide thumbs Also See for TV-IP110 - SecurView Internet Surveillance Camera:

Advertisement

Quick Links

See also: User Manual
Quick Installation Guide
TV-IP110
TV-IP110W
H/W: A1.0R

Advertisement

loading
Need help?

Need help?

Do you have a question about the TV-IP110 - SecurView Internet Surveillance Camera and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRENDnet TV-IP110 - SecurView Internet Surveillance Camera

Summary of Contents for TRENDnet TV-IP110 - SecurView Internet Surveillance Camera

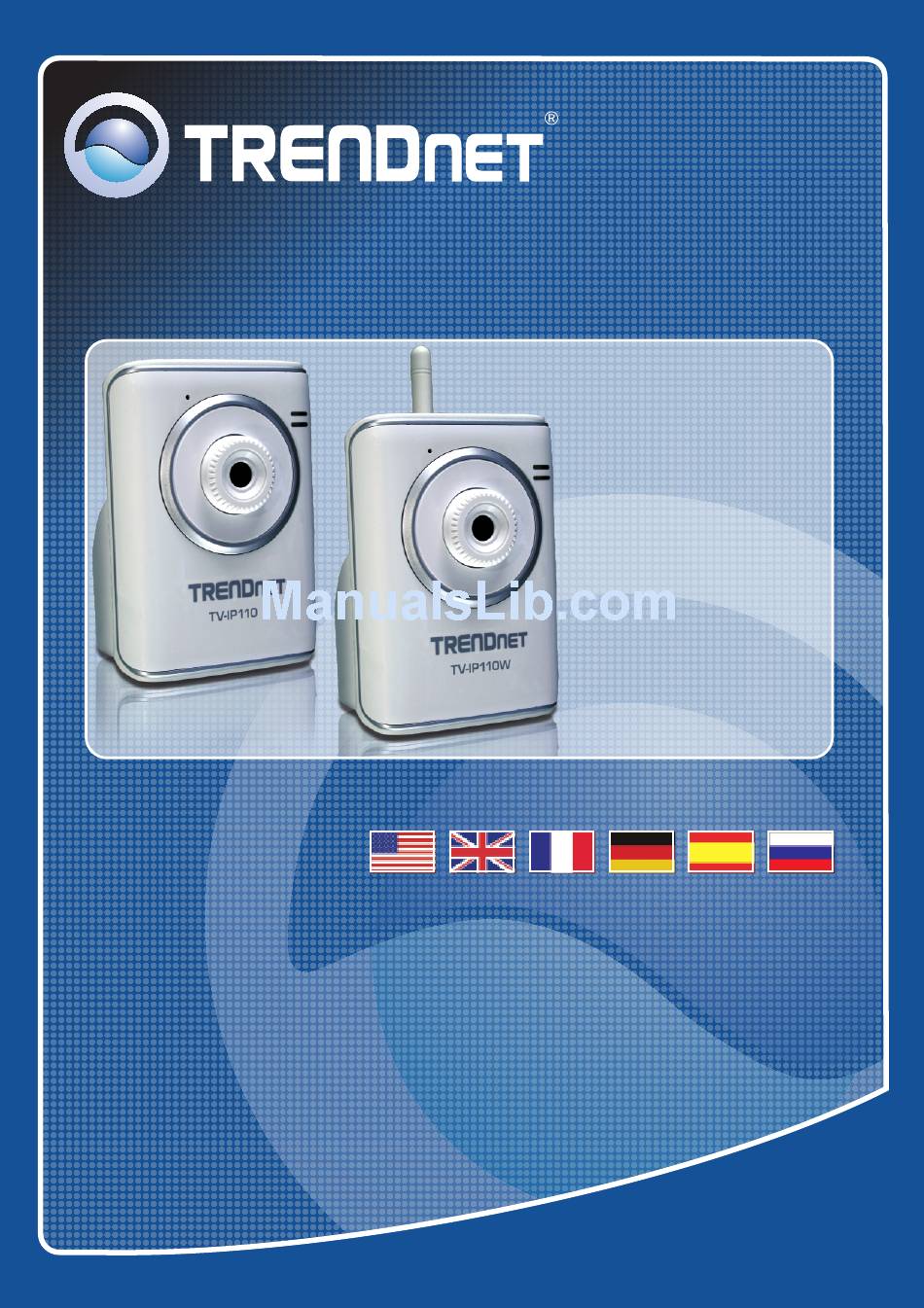

  • Page 1 Quick Installation Guide TV-IP110 TV-IP110W H/W: A1.0R...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents English ...................... 1 1. Before You Start ................. 2. Hardware Installation ................. 3. Configure the Internet Camera ............Troubleshooting ..................Version 06.11.2008...

  • Page 3: English

    1. Before You Start Package Contents TV-IP110/TV-IP110W Utility CD-ROM Quick Installation Guide 1 x 2dBi Detachable Antenna TV-IP110W) AC Power Adapter (5V, 2.5A) System Requirements 10/100Mbps Ethernet CPU: 1GHz processor or above Memory: 256MB RAM or above/ 512MB RAM or above (Windows Vista) Windows 2000/XP/Vista VGA Resolution: 800 x 600 or above Web Browser: Internet Explorer (6.0 or higher)
  • Page 4 Application Internet Camera Server (TV-IP110) Cable/DSL 4-Port Broadband Router (TW100-S4W1CA) Internet Notebook with PC Card Modem (TE100-PCBUSR) 10/100Mbps Wireless Internet Camera Server (TV-IP110W) Wireless G Firewall Router (TEW-432BRP) Internet Notebook with Modem Wireless G PC Card (TEW-421PC) 54Mbps English...

  • Page 5: Hardware Installation

    2. Hardware Installation 1. Attach the Antenna. (TV-IP110W) 2. Connect a RJ-45 network cable from a Switch/Router to the Ethernet port of the Internet Camera Server. 3. Connect the AC Power Adapter to the Internet Camera Server and then to a power outlet. 4.

  • Page 6: Configure The Internet Camera

    2. Follow the Installation Wizard instructions and then click Close. 3. Go to Start -> Programs -> TRENDnet -> IPSetup and click IPSetup. Note: By default, the IP setting on the TV-IP110/TV-IP110W is set to DHCP. Please skip to step 8. If you want to give the TV-IP110/TV-IP110W static IP address, continue on to step 4.
  • Page 7 5. Configure the IP address to be in the same subnet as your network, type in the Administrator ID and Password and click Change. By default: ID: admin Password: admin 6. Click OK and wait 30 seconds. 7. Click OK. 8.
  • Page 8 9. Enter the User name and Password, and then click OK. User Name: admin Password: admin 10. Right click and select Install ActiveX Control. 11. Click Install. 12. Click Setup, Network and then click Wireless. (TV-IP110W only) English...
  • Page 9 13. Click Site Survey. Select your wireless network. If encryption is enabled, select the proper Authentication type, enter the Pre-Shared Key and then click Apply. (Example shows WPA2- PSK. If your wireless network does not support WPA, select open or shared instead. Contact your network administrator for more information) (TV-IP110W only).
  • Page 10 TV-IP 110W configuration and advanced settings, please refer to the Troubleshooting section, User's Guide on the Utility CD-ROM, or TRENDnet's website at http://www.trendnet.com. Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register...

  • Page 11: Troubleshooting

    This will return settings back to factory defaults. The default IP address is 192.168.10.30. The default administrator ID and password is admin. If you still encounter problems or have any questions regarding the TV-IP110/TV-IP110W, please contact TRENDnet’s Technical Support Department.
  • Page 12 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
  • Page 13 Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register 20675 Manhattan Place Torrance, CA 90501 Copyright ©2008. All Rights Reserved. TRENDnet.

This manual is also suitable for:

Tv-ip110w
