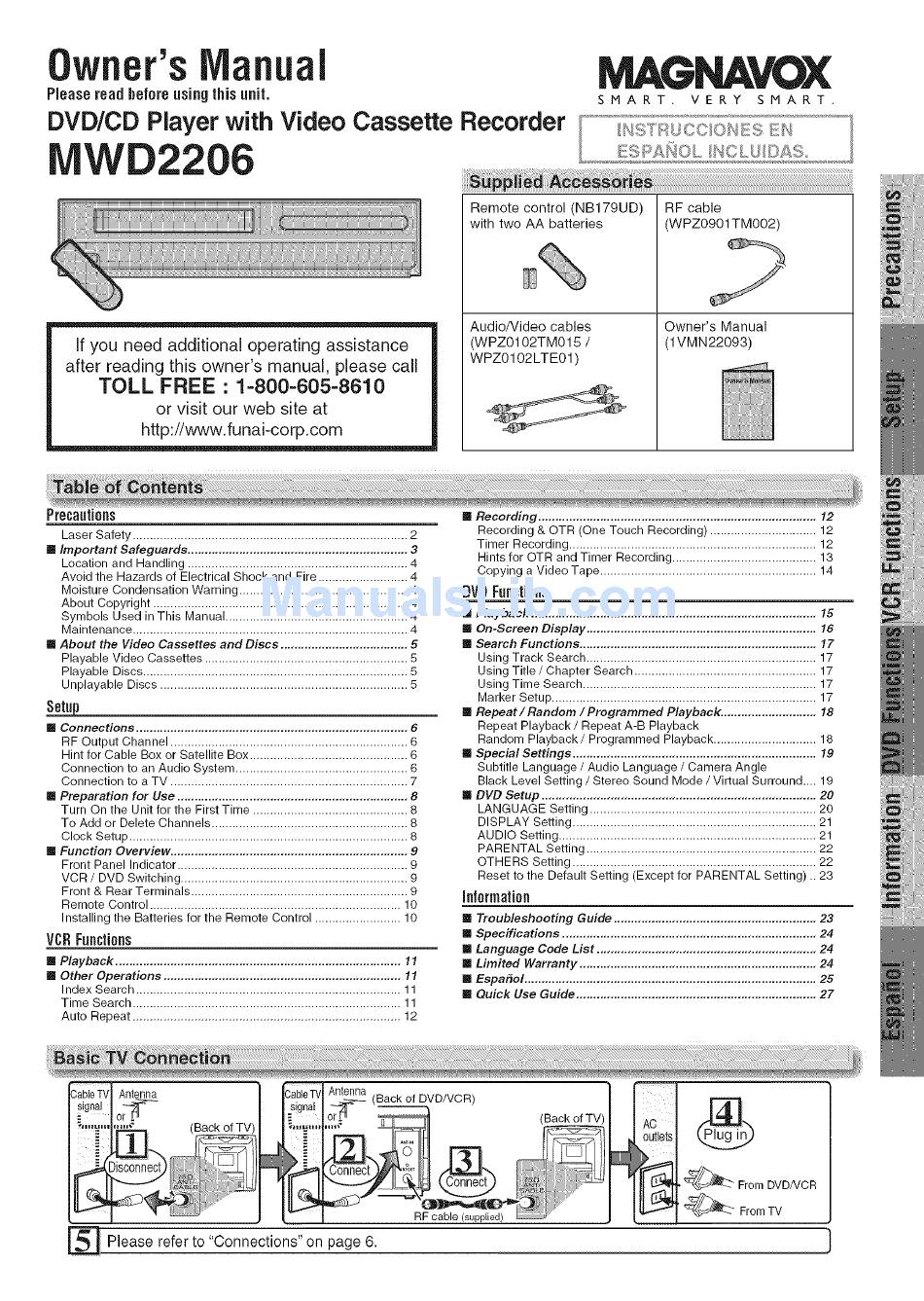

Owner's
u
Please read before usingthis unit.

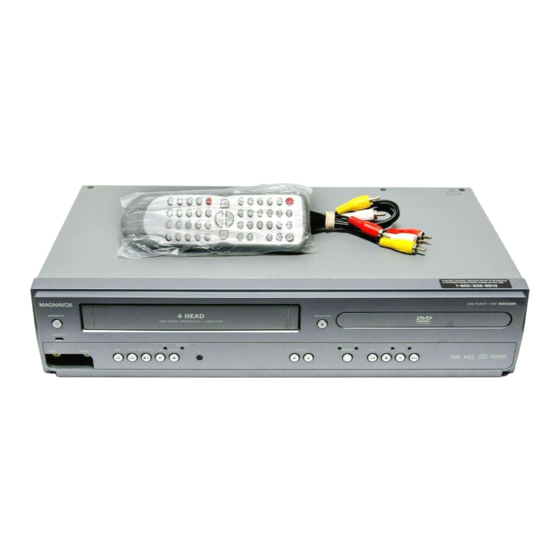

DVD/CD Player with Video Cassette Recorder
1
SMART.
VERY
SMART.
if you need additional operating assistance
after reading this owner's manual, please call
TOLL FREE : 1=800-605-8610
or visit our web site at
http://www, funai-corp.com
Remote control (NB179UD)
with two AA batteries
Audio/Video
cables
(WPZ0102TM015
/
WPZ0102LTE01 )
RF cable
(WPZ0901TM002)
Owner's
Manual
(1VMN22093)
Precautions
Laser Safety ................................................................................
2
[] Important
Safeguards ................................................................
3
Location and Handling
................................................................
4
Avoid the Hazards of Electrical Shock and Fire ..........................
4
Moisture Condensation
Warning .................................................
4
About Copyright
..........................................................................
4
Symbols Used in This Manual .....................................................
4
Maintenance
................................................................................
4
[] About
the Video Cassettes
and Discs .....................................
5
Playable Video Cassettes ...........................................................
5
Playable Discs .............................................................................
5
Unplayable
Discs ........................................................................
5
[] Connections
...............................................................................
6
RF Output Channel .....................................................................
6
Hint for Cable Box or Satellite Box ..............................................
6
Connection
to an Audio System ..................................................
6
Connection
to a TV .....................................................................
7
[] Preparation
for Use ...................................................................
8
Turn On the Unit for the First Time .............................................
8
To Add or Delete Channels .........................................................
8
Clock Setup .................................................................................
8
[] Function
Overview .....................................................................
9
Front Panel Indicator ...................................................................
9
VCR / DVD Switching ..................................................................
9
Front & Rear Terminals ...............................................................
9
Remote Control .........................................................................
10
Installing the Batteries for the Remote Control .........................
10
VCR Functions
[] Playback
...................................................................................
11
[] Other Operations
.....................................................................
11
Index Search .............................................................................
11
Time Search ..............................................................................
11
Auto Repeat ..............................................................................
12
[] Recording
.................................................................................
12
Recording & OTR (One Touch Recording) ...............................
12
Timer Recording ........................................................................
12
Hints for OTR and Timer Recording ..........................................
13
Copying a VideoTape
...............................................................
14
DVDFunctions
[] Playback
...................................................................................
15
[] On-Screen
Display ...................................................................
16
[] Search Functions
.....................................................................
17
Using Track Search ...................................................................
17
Using Title / Chapter Search .....................................................
17
Using Time Search ....................................................................
17
Marker Setup .............................................................................
17
[] Repeat/Random/Programmed
Playback
............................
18
Repeat Playback / Repeat A-B Playback
Random Playback/Programmed
Playback ..............................
18
[] Special Settings .......................................................................
19
Subtitle Language / Audio Language / Camera Angle
Black Level Setting / Stereo Sound Mode / Virtual Surround
19
[] DVD Setup ................................................................................
20
LANGUAGE
Setting ..................................................................
20
DISPLAY Setting .......................................................................
21
AUDIO Setting ...........................................................................
21
PARENTAL
Setting ...................................................................
22
OTHERS Setting .......................................................................
22
Reset to the Default Setting (Except for PARENTAL
Setting)
23
information
[] Troubleshooting
Guide ...........................................................
23
[] Specifications
..........................................................................
24
[] Language
Code List ................................................................
24
[] Limited
Warranty .....................................................................
24
[] Espa_ol
.....................................................................................
25
[] Quick Use Guide ......................................................................
27
Antenna
'Back of DVD/VCR)
RF cable (supplied)
_L_J
Please
refer
to "Connections"
6.
on
page
(Back of TV)
AC
Outlets
rem O VO C
_
From TV
