Reinstalling the M-SATA Board

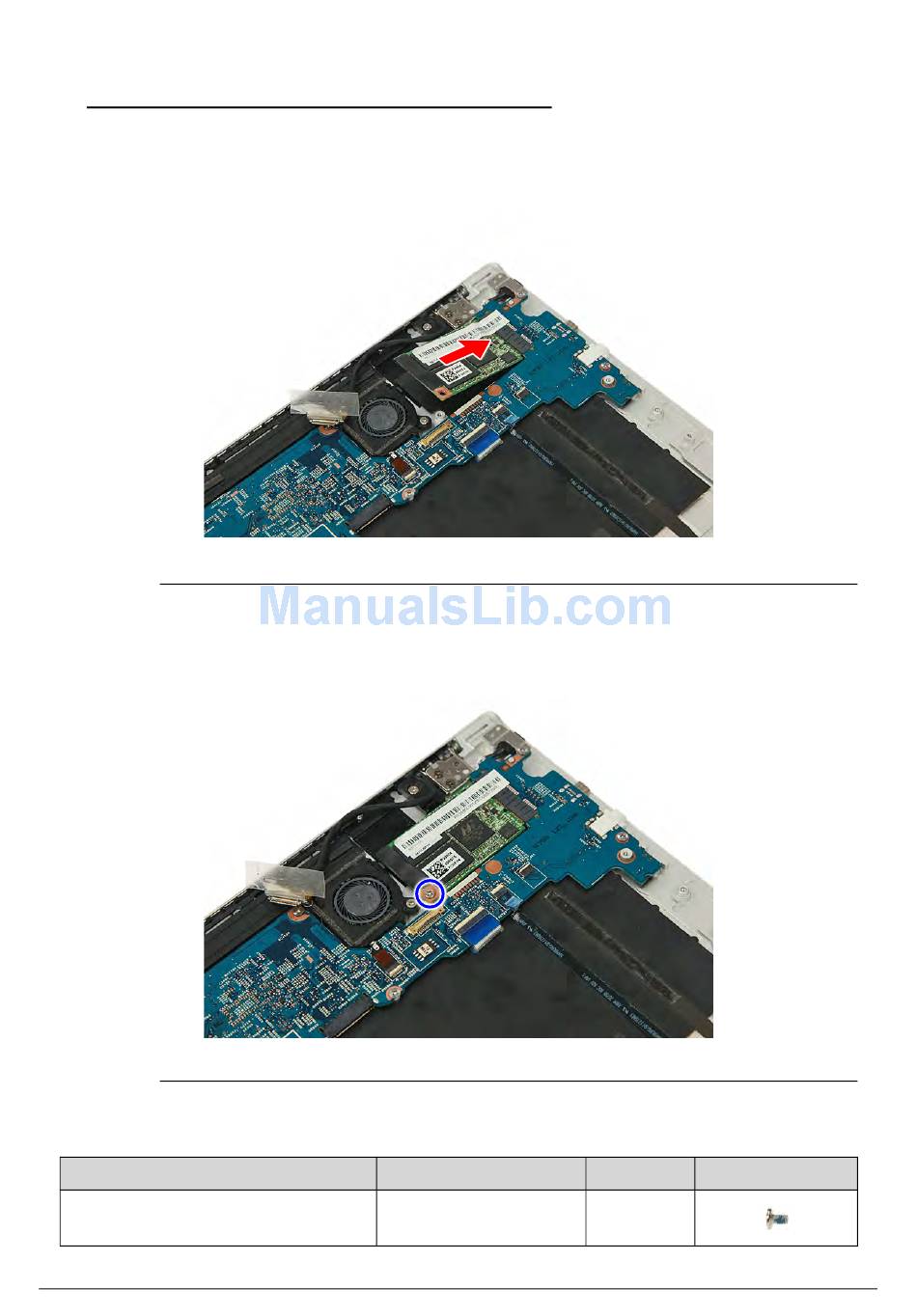

1. Insert the M-SATA board into the upper case assembly.
Figure 3-96. M-SATA Board
2. Secure the M-SATA board to the upper case assembly using one screw.
Figure 3-97. M-SATA Board Screw
Table 3-97. Screw
Step
M-SATA Board Reassembly
3-60
Screw
M2 x L3
Quantity
Screw Type
1
Machine Maintenance
0
