Reinstalling the EL Small Board

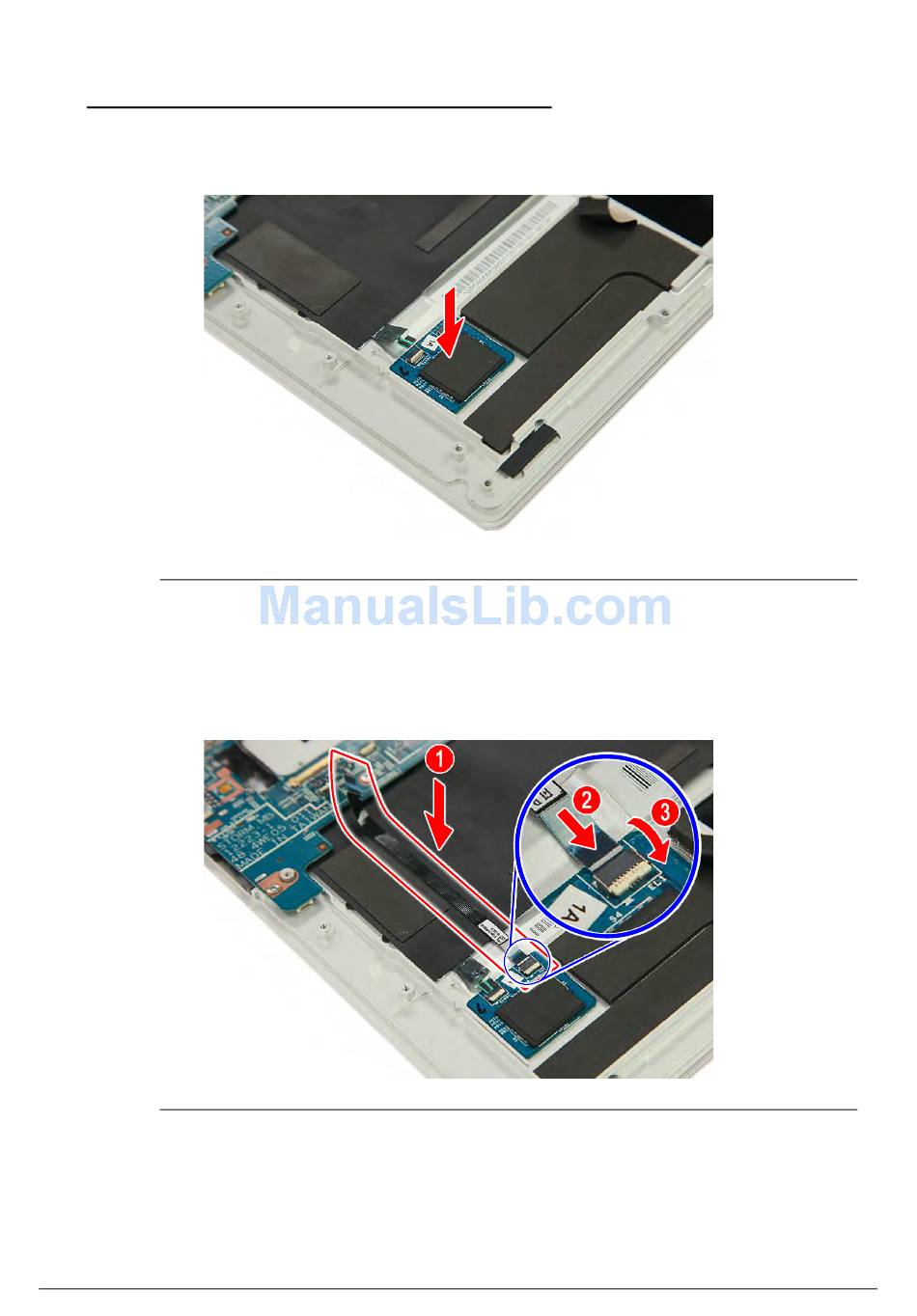

1. Place the EL small board into the upper case assembly.
Figure 3-78. EL Small Board
2. Place the cable into the upper case assembly (1). Connect the EL small board cable to the
EL small board (2), then press the connector latch (3) until it locks into place.
Figure 3-79. EL Small Board Cable Self Adhesive Tape
