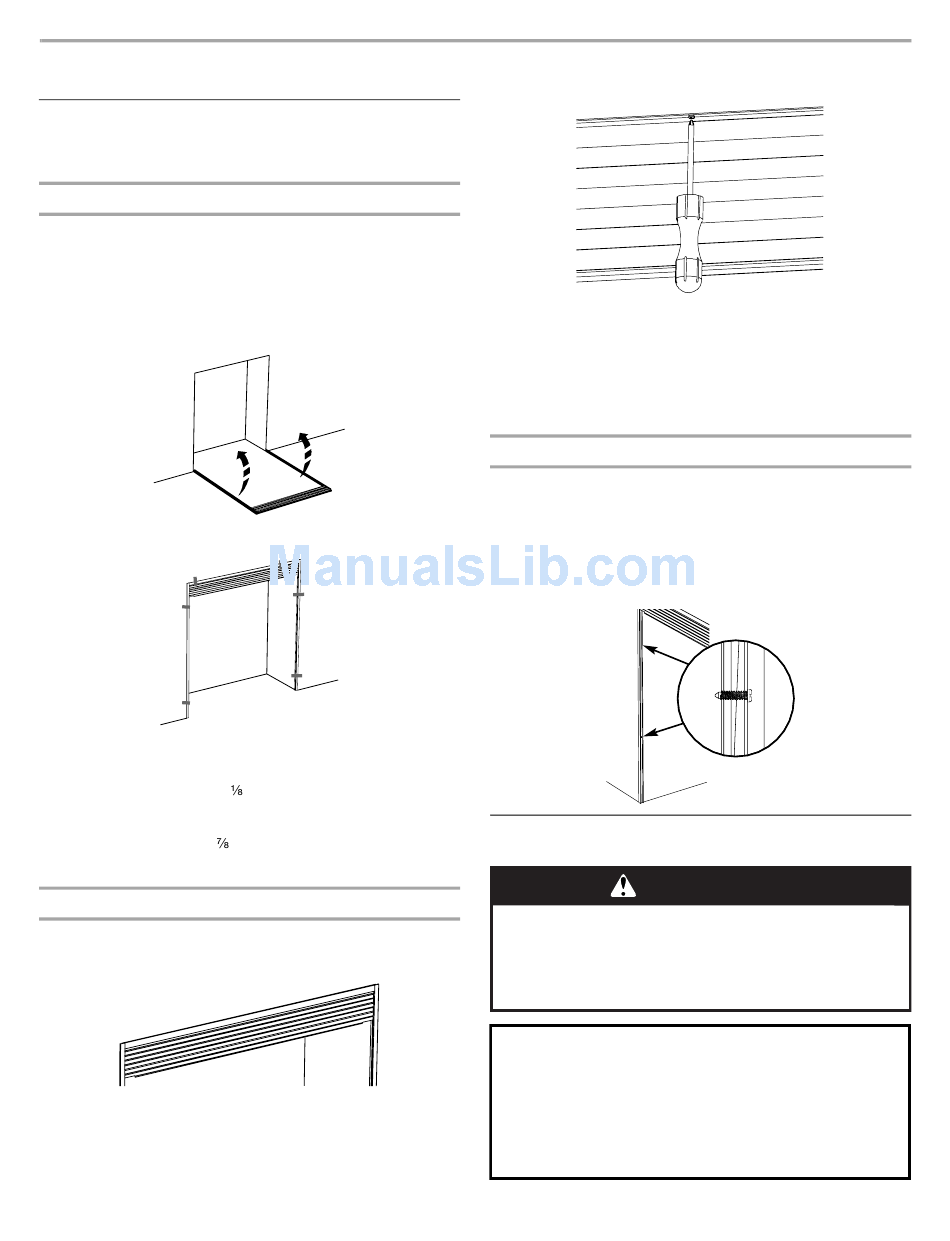

Install the Top Grille and Trim Assembly

IMPORTANT: The top grille and trim assembly, and your floor can
be damaged if the assembly is dropped.
Prepare the Opening
1. Place cardboard or hardboard over the floor at each side of
the rough opening where the side trim will meet the floor.
2. Place the top grille and trim assembly face down on the floor
centered in front of the rough opening.
3. Using two people, one on each side, lift the trim assembly
and position it into place above and on each side of the
opening.
4. Use several pieces of tape to temporarily hold the assembly
in place as shown.
5. Mark the trim assembly hole locations around the opening.
Remove the tape and lower the trim assembly back to the
floor.
6. Using a cordless drill and
where marked.
NOTE: Some cabinetry or wall materials may require
predrilled holes using a
7. Repeat steps 3 and 4.
Fasten the Top Trim to the Opening
1.
Align the top extrusion against the opening, so that it is tight
and flush with the front surface of the wall opening or
cabinetry.
2. From below and behind the top trim extrusion, insert a pan
head Phillips screw through the predrilled center hole of the
top trim and into the wall opening or cabinetry.
NOTE: Do not completely tighten the screw.

INSTALLATION INSTRUCTIONS

" diameter drill bit, drill holes
" diameter drill bit.
3. Using a carpenter's level, level the top trim, and shim as
necessary.
NOTE: Shims are not provided with the trim kit.
4. Using two pan head Phillips screws, fasten the top trim
extrusion by inserting a screw through the predrilled holes at
each end. Completely tighten the screws.
5. Completely tighten the center screw.
Fasten the Side Trim to the Opening
1. Using a carpenters level, make sure the sides are plumb, and
shim as necessary.
NOTE: Shims are not provided with the trim kit.
2. Using four pan head Phillips screws (two on each side),
fasten both the left-hand and right-hand side trim extrusions
to the opening or cabinetry. Make sure the trim does not
twist.

Place and Align Refrigerator and Freezer

WARNING
Excessive Weight Hazard
Use two or more people to move and install
refrigerator.
Failure to do so can result in back or other injury.
When Moving Your Freezer or Refrigerator:
Your freezer and refrigerator are heavy. When moving the
appliance for cleaning or service, be sure to cover the floor
with cardboard or hardboard to avoid floor damage. Always
pull the appliance straight out when moving it. Do not wiggle
or "walk" the appliance when trying to move it, as floor
damage could occur.
5
