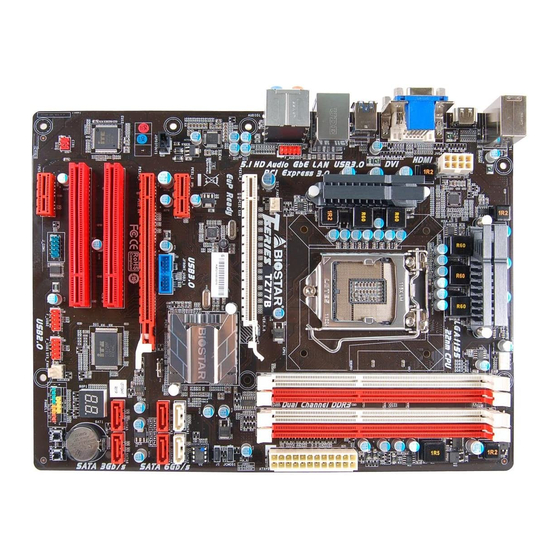

TZ77B/TZ75B/T77 UEFI BIOS Manual
UEFI BIOS Setup...................................................................................... 1
1 Main Menu ............................................................................................. 3
2 Advanced Menu...................................................................................... 4
3 Chipset Menu ....................................................................................... 18
4 Boot Menu............................................................................................. 27
5 Security Menu ...................................................................................... 30
6 O.N.E Menu.......................................................................................... 31
7 Exit Menu ............................................................................................. 38
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TZ77B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Biostar TZ77B

Summary of Contents for Biostar TZ77B

  • Page 1 TZ77B/TZ75B/T77 UEFI BIOS Manual UEFI BIOS Setup..................1 1 Main Menu ..................... 3 2 Advanced Menu..................4 3 Chipset Menu ..................18 4 Boot Menu..................... 27 5 Security Menu ..................30 6 O.N.E Menu..................31 7 Exit Menu ..................... 38...

  • Page 2: Uefi Bios Setup

    TZ77B/TZ75B/T77 UEFI BIOS Manual UEFI BIOS Setup Introduction The purpose of this manual is to describe the settings in the AMI UEFI BIOS Setup program on this motherboard. The Setup program allows users to modify the basic system configuration and save these settings to NVRAM.

  • Page 3: Supported Cpus

    TZ77B/TZ75B/T77 UEFI BIOS Manual Supported CPUs This AMI UEFI BIOS supports the Intel CPU. Using Setup When starting up the computer, press <Del> during the Power-On Self-Test (POST) to enter the UEFI BIOS setup utility. In the UEFI BIOS setup utility, you will see...

  • Page 4: Bios Information

    TZ77B/TZ75B/T77 UEFI BIOS Manual 1 Main Menu Once you enter AMI UEFI BIOS Setup Utility, the Main Menu will appear on the screen providing an overview of the basic system information. BIOS Information Shows system information including UEFI BIOS version, model name, marketing name, built date, etc.

  • Page 5: Advanced Menu

    TZ77B/TZ75B/T77 UEFI BIOS Manual 2 Advanced Menu The Advanced Menu allows you to configure the settings of CPU, Super I/O, Power Management, and other system devices. Notice Beware of that setting inappropriate values in items of this menu may cause system to malfunction.
  • Page 6 TZ77B/TZ75B/T77 UEFI BIOS Manual PCI ROM Priority In case of multiple option ROMs (Legacy and EFI Compatible), this item specifies what PCI Option ROM to launch Options: Legacy ROM (Default) / EFI Compatible ROM PCI Latency Timer This item sets the value to be programmed into PCI Latency Timer Register.

  • Page 7: Acpi Settings

    TZ77B/TZ75B/T77 UEFI BIOS Manual ACPI Settings Enable ACPI Auto Configuration This item enables or disables BIOS ACPI Auto Configuration. Options: Disabled (Default) / Enabled Enable Hibernation This item enables or disables system ability to hibernate (OS/S4 Sleep State). This option may be not effective with some OSes.
  • Page 8 TZ77B/TZ75B/T77 UEFI BIOS Manual PS2 Keyboard PowerOn This item allows you to control the keyboard power on function. Options: Disabled (Default) / Any Key / Stroke Key / Specific Key Stroke Keys Selected This item will show only when Keyboard PowerOn is set “Stroke Key.”...

  • Page 9: Cpu Configuration

    TZ77B/TZ75B/T77 UEFI BIOS Manual Wake up date You can choose which date the system will boot up. Wake up hour / Wake up minute / Wake up second You can choose the system boot up time, input hour, minute and second to specify.
  • Page 10 TZ77B/TZ75B/T77 UEFI BIOS Manual Execute-Disable Bit XD can prevent certain classes of malicious buffer overflow attacks when combined with a supporting OS (Windows Server 2003 SP1, Windows XP SP2, SuSE Linux 9.2, RedHat Enterprise 3 Update 3.). Options: Enabled (Default) / Disabled...

  • Page 11: Sata Configuration

    TZ77B/TZ75B/T77 UEFI BIOS Manual SATA Configuration SATA Controller(s) This item enables/disables Serial ATA Device. Options: Enabled (Default) / Disabled SATA Mode Selection This item determines how SATA controller(s) operate. Options: IDE (Default) / AHCI / RAID SMART Self Test This item runs SMART Self Test on all HDDs during POST.

  • Page 12: Intel Rapid Start Technology

    TZ77B/TZ75B/T77 UEFI BIOS Manual Intel(R) Rapid Start Technology Intel(R) Rapid Start Technology This item enables/disables Intel(R) Rapid Start Technology. Options: Disabled (Default) / Enabled Entry on S3 RTC Wake This item sets iFFS invocation upon S3 RTC wake . Options:...

  • Page 13: Usb Configuration

    TZ77B/TZ75B/T77 UEFI BIOS Manual Active Memory Threshold This item allows system to try to support RST when partition size > Active Page Threshold size in MB. When set to zero, the item will be in AUTO mode and check if partition size is enough at S3 entry.
  • Page 14 TZ77B/TZ75B/T77 UEFI BIOS Manual EHCI Hand-Off This is a workaround for OSes without EHCI hand-off support. The EHCI ownership change should be claimed by EHCI driver. Options: Disabled (Default) / Enabled Port 60/64 Emulation This items enables I/O port 60h/64h emulation support. This should be enabled for the complete USB keyboard legacy support for non-USB aware OSes.

  • Page 15: Smart Fan Control

    TZ77B/TZ75B/T77 UEFI BIOS Manual SMART FAN Control CPU Smart FAN This item allows you to control the CPU Smart Fan function. Options: Disabled (Default) / Auto CPU FAN Calibrate Press [ENTER] to calibrate CPU FAN. Control Mode This item provides several operation modes of the fan.

  • Page 16: Super Io Configuration

    TZ77B/TZ75B/T77 UEFI BIOS Manual Fan Ctrl Start Value This item sets CPU FAN Start Speed Value. Options: 50 (Default) Fan Ctrl Sensitive The bigger the numeral is, the higher the FAN speed is. Options: 30 (Default) Super IO Configuration Serial Port Configuration...
  • Page 17 TZ77B/TZ75B/T77 UEFI BIOS Manual Serial Port This item enables or disables Serial Port (COM). Options: Enabled (Default) / Disabled Change Settings This item selects an optimal setting for Super IO device. Options: Auto (Default) / IO=3F8h; IRQ=4 / IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12 / IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12 / IO=3E8h;...
  • Page 18 TZ77B/TZ75B/T77 UEFI BIOS Manual H/W Monitor Shutdown Temperature This item allows you to set up the CPU shutdown Temperature. Options: Disabled (Default) / 70 /158 / 75 /167 / 80 /176 ℃ ℉ ℃ ℉ ℃ ℉ 85 /185 / 90 /194 ℃...

  • Page 19: Chipset Menu

    TZ77B/TZ75B/T77 UEFI BIOS Manual 3 Chipset Menu This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed of the CPU itself uses when communicating with its own special components.

  • Page 20: Pci Express Configuration

    TZ77B/TZ75B/T77 UEFI BIOS Manual PCI Express Configuration PEX1_1/1_2/16_2 Slot This item controls the PCI Express Root Port. Options: Enabled (Default) / Disabled ASPM This item sets PCI Express Active State Power Management settings. Options: Disabled (Default) / L0s / L1 / L0sL1 / Auto PCIe Speed This item selects PCI Express port speed.
  • Page 21 TZ77B/TZ75B/T77 UEFI BIOS Manual USB Configuration XHCI Pre-Boot Driver This item enables or disables XHCI Pre-Boot Driver support. Options: Enabled (Default) / Disabled XHCI Mode This item sets the mode of operation of XHCI controller. Options: Smart Auto (Default) / Auto / Enabled / Disabled EHCI1/2 This item controls the USB EHCI (USB2.0) functions.

  • Page 22: Pch Azalia Configuration

    TZ77B/TZ75B/T77 UEFI BIOS Manual PCH Azalia Configuration Azalia This item controls detection of the Azalia device. Disabled = Azalia will be unconditionally disabled. Enabled = Azalia will be unconditionally Enabled. Auto = Azalia will be enabled if present, disabled otherwise.

  • Page 23: Launch Storage Oprom

    TZ77B/TZ75B/T77 UEFI BIOS Manual Onboard PCI-E Devices Launch Storage OpROM This item enables/disables Boot Option for Legacy Mass Storage Devices with Option ROM. Options: Enabled (Default) / Disabled Launch Video OpROM This item enables/disables execution of the Legacy Option ROM for video devices.

  • Page 24: System Agent (Sa) Configuration

    TZ77B/TZ75B/T77 UEFI BIOS Manual System Agent (SA) Configuration VT-d This item enables/disables VT-d function on MCH. Options: Disabled (Default) / Enabled Graphics Configuration Primary Display This item select which of IGFX/PEG/PCI Graphics device should be Primary Display or select SG for Switchable Gfx.
  • Page 25 TZ77B/TZ75B/T77 UEFI BIOS Manual Internal Graphics This item keeps IGD enabled based on the setup options. Options: Auto (Default) / Disabled / Enabled GTT Size This item select GTT Size. Options: 2MB (Default) / 1MB Aperture Size This item select Aperature Size.

  • Page 26: Nb Pcie Configuration

    This item configures PEG0 B0:D1:F0 Gen1-Gen3. Options: Auto (Default) / Gen1 / Gen2 / Gen3 * PEX16_2 – Gen X is for TZ77B & TZ75B only PEG0 ASPM / PEG1 ASPM This item controls ASPM support for the PEG: Device 1 Funtion0. This has no effect if PEG is not the currently active device.

  • Page 27: Memory Configuration

    TZ77B/TZ75B/T77 UEFI BIOS Manual Memory Configuration Max TOLUD This item sets maximum value of TOLUD. Dynamic assignment would adjust TOLUD automatically based on largest MMIO length of installed graphic controller. Options: Dynamic (Default) / 1 GB / 1.25 GB / 1.5 GB / 1.75 GB / 2 GB / 2.25 GB / 2.5 GB / 2.75 GB / 3 GB / 3.25 GB...

  • Page 28: Setup Prompt Timeout

    TZ77B/TZ75B/T77 UEFI BIOS Manual 4 Boot Menu This menu allows you to setup the system boot options. Setup Prompt Timeout This item sets number of seconds to wait for setup activation key. Options: 2 (Default) Bootup NumLock State This item selects the keyboard NumLock state.

  • Page 29: Option Rom Messages

    TZ77B/TZ75B/T77 UEFI BIOS Manual GateA20 Active Upon Request – GA20 can be disabled using BIOS services. Always – do not allow disabling GA20; this option is useful when any RT code is executed above 1MB Options: Upon Request (Default) / Always Option ROM Messages This item sets the display mode for Option ROM.

  • Page 30: Boot Option

    TZ77B/TZ75B/T77 UEFI BIOS Manual Boot Option #1 The items specify the boot device priority sequence from the available devices. The number of device items that appears on the screen depends on the number of devices installed in the system. CD/DVD ROM Drive BBS Priorities This item sets the order of the legacy devices in this group.

  • Page 31: Security Menu

    TZ77B/TZ75B/T77 UEFI BIOS Manual 5 Security Menu Administrator Password This item sets Administrator Password. User Password This item sets User Password.

  • Page 32: Start Page

    TZ77B/TZ75B/T77 UEFI BIOS Manual 6 O.N.E Menu This submenu allows you to change voltage and clock of various devices. (However, we suggest you use the default setting. Changing the voltage and clock improperly may damage the device.) Notice Beware of that setting inappropriate values in items of this menu may cause system to malfunction.

  • Page 33: Enhanced Intel Speedstep Technology

    TZ77B/TZ75B/T77 UEFI BIOS Manual CPU Ratio This item allows you to set the CPU ratio. This item is adjustable only when Fixed CPU Ratio is set to Enabled. Options: 30 (Default) / 10 ~ 50 Host Clock Override (1/100 MHz) This item sets Host Clock Override.

  • Page 34: Graphics Core Ratio Limit

    TZ77B/TZ75B/T77 UEFI BIOS Manual CPU Turbo Mode This item enables/disables CPU Turbo Mode. Options: Disabled (Default) / Enabled iGFX Core Current Max (Amp) This item sets iGFX Core Current Max. Options: 35 (Default) Graphics Core Ratio Limit This item sets Graphics Core Ratio Limit.
  • Page 35 TZ77B/TZ75B/T77 UEFI BIOS Manual RAS# Active Time (tRAS) This item allows you to select Row Active Time of DDR3. Options: 24 (Default) / 9 ~ 63 Write Recovery Time (tWR) This item allows you to select Internal Write to Read Command Delay of DDR3.

  • Page 36: Cpu Vcore

    TZ77B/TZ75B/T77 UEFI BIOS Manual tCKE This item allows you to select CKE minimum pulse width of DDR3. tZQOPER This item allows you to select period required for ZQCL after SR exit of DDR3. CPU VCore This item sets the mode of CPU over voltage.
  • Page 37 TZ77B/TZ75B/T77 UEFI BIOS Manual Write - different ranks time Options: Auto (Default) / 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 Write - Write different DIMMs time Options: Auto (Default) / 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8...
  • Page 38 TZ77B/TZ75B/T77 UEFI BIOS Manual DDR3 1/2/3/4 Information These items display SPD information of DDR3 memory.

  • Page 39: Discard Changes And Exit

    TZ77B/TZ75B/T77 UEFI BIOS Manual 7 Exit Menu This menu allows you to load the optimal default settings, and save or discard the changes to the BIOS items. Discard Changes and Exit Abandon all changes made during the current session and exit setup.
  • Page 40 TZ77B/TZ75B/T77 UEFI BIOS Manual Saving SetupData to Profile Saving SetupData to Profile Restoring SetupData from Profile Restoring SetupData from Profile...
