HPBA-2510
Product Overview
Ultra Wide Range
Power Broadband Antenna provides extremely
high field strengths over the operating frequency
range of 25 MHz to 100 MHz. The HPBA-2510
features an unprecedented combination of high
efficiency, low VSWR, excellent field uniformity,
and small size. These features make the TDK HPBA
-2510 the best choice for immunity measurements
requiring high power.
Patented Design
leading design provides improved impedance
matching and power handling to provide true 200
V/m field intensity. The HPBA-2510 is a highly
efficient radiator with a low VSWR (2.5:1 aver-
age), and its high power handling (3500W) is
ideal for MIL-STD 461 and SAE J1113/J551 im-
munity test applications.
Seamless Setup
house specifically for immunity measurements in
EMC test environments. The HPBA-2510 can be
combined with our E-Field Generator (10 kHz - 30
MHz) and our V-Log Antenna (80 MHz - 1000
MHz) to achieve seamless coverage of immunity
test frequencies with bandbreaks that correspond
to amplifier specifications. The HPBA-2510 can
be used alone or in arrays.
Features
Very high power handling - 3500W maximum

(10,000W model also available)
Low 2.5:1 VSWR (average)

Improved impedance matching

Can be used alone or in arrays (with optional

high power hybrid network)
1101 Cypress Creek Road  Cedar Park, Texas 78613, USA  1-512-258-9478  FAX 1-512-258-0740
High Power Broadband Antenna
The TDK HPBA-2510 High
The HPBA-2510's industry-
The HPBA-2510 is designed in-

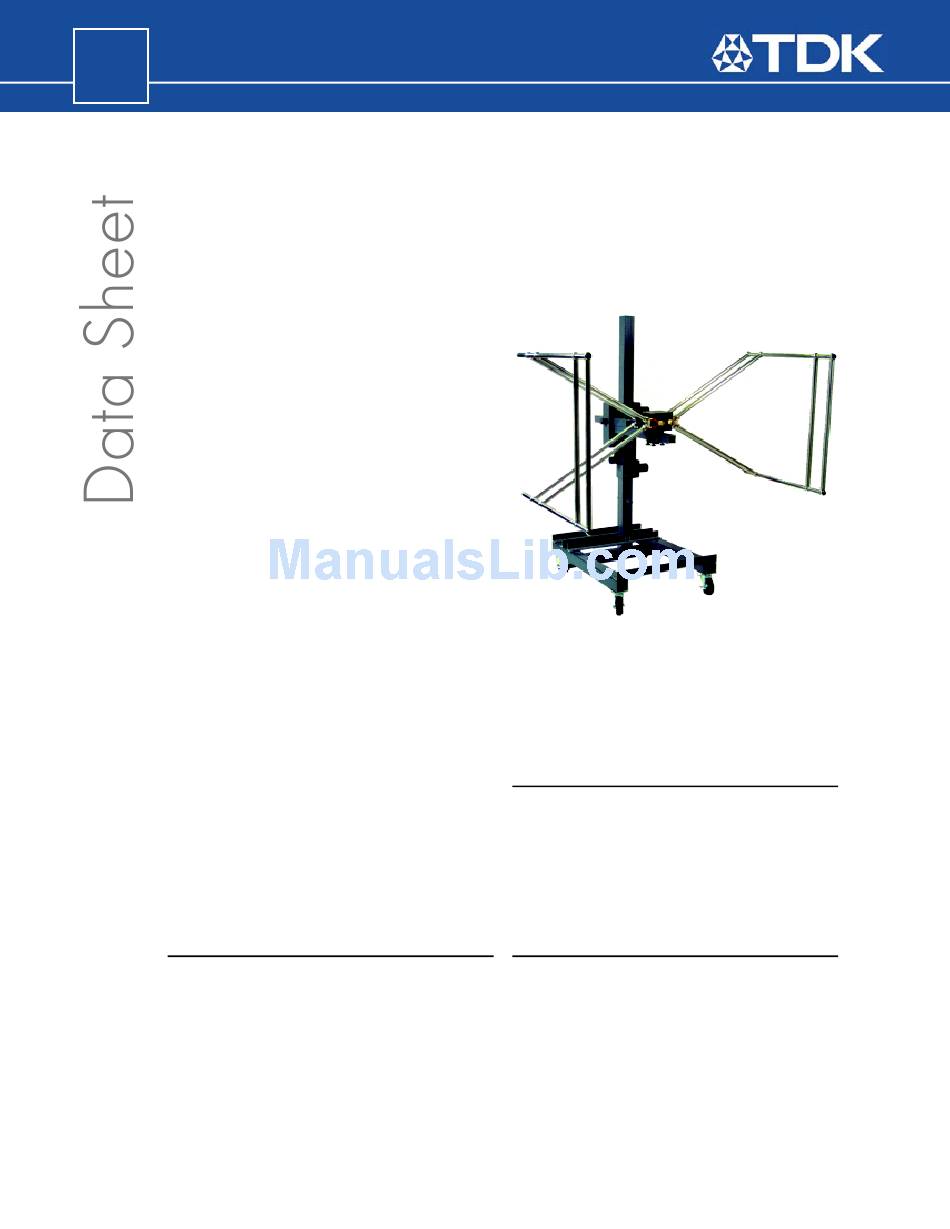

The TDK HPBA-2510 High Power Broadband
Antenna offers extremely high field strength
for immunity measurements over the frequency
range of 25 MHz to 100 MHz. Mast sold sep-
arately.
Applications
Immunity Measurements

MIL-STD 461

SAE J1113/ISO 11452

SAE J551/ISO 11451

Options
Manual Vertical Mast MVM-200R

The TDK MVM-200R antenna mast provides
manual control of the height, tilt, and polariza-
tion. The MVM-200R adjusts from 1 m to 1.5
m in height and supports antennas up to 18
kg.
