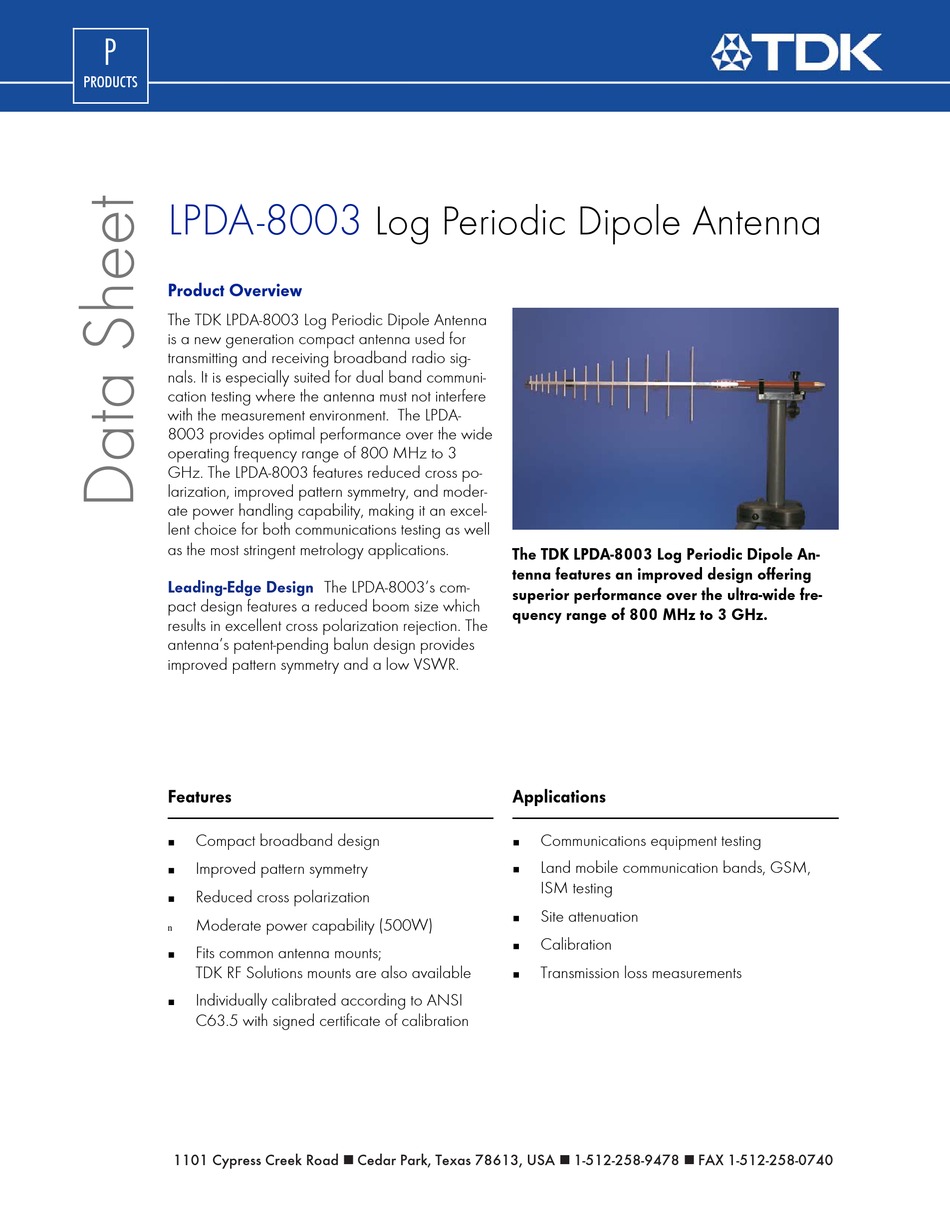

TDK LPDA-8003 Datasheet

P
PRODUCTS
LPDA-8003
Product Overview
The TDK LPDA-8003 Log Periodic Dipole Antenna
is a new generation compact antenna used for
transmitting and receiving broadband radio sig-
nals. It is especially suited for dual band communi-
cation testing where the antenna must not interfere
with the measurement environment. The LPDA-
8003 provides optimal performance over the wide
operating frequency range of 800 MHz to 3
GHz. The LPDA-8003 features reduced cross po-
larization, improved pattern symmetry, and moder-
ate power handling capability, making it an excel-
lent choice for both communications testing as well
as the most stringent metrology applications.
Leading-Edge Design
pact design features a reduced boom size which
results in excellent cross polarization rejection. The
antenna's patent-pending balun design provides
improved pattern symmetry and a low VSWR.
Features
Compact broadband design

Improved pattern symmetry

Reduced cross polarization

Moderate power capability (500W)
n
Fits common antenna mounts;

TDK RF Solutions mounts are also available
Individually calibrated according to ANSI

C63.5 with signed certificate of calibration
1101 Cypress Creek Road  Cedar Park, Texas 78613, USA  1-512-258-9478  FAX 1-512-258-0740
Log Periodic Dipole Antenna
The LPDA-8003's com-
The TDK LPDA-8003 Log Periodic Dipole An-
tenna features an improved design offering
superior performance over the ultra-wide fre-
quency range of 800 MHz to 3 GHz.
Applications
Communications equipment testing

Land mobile communication bands, GSM,

ISM testing
Site attenuation

Calibration

Transmission loss measurements

