GE Appliances

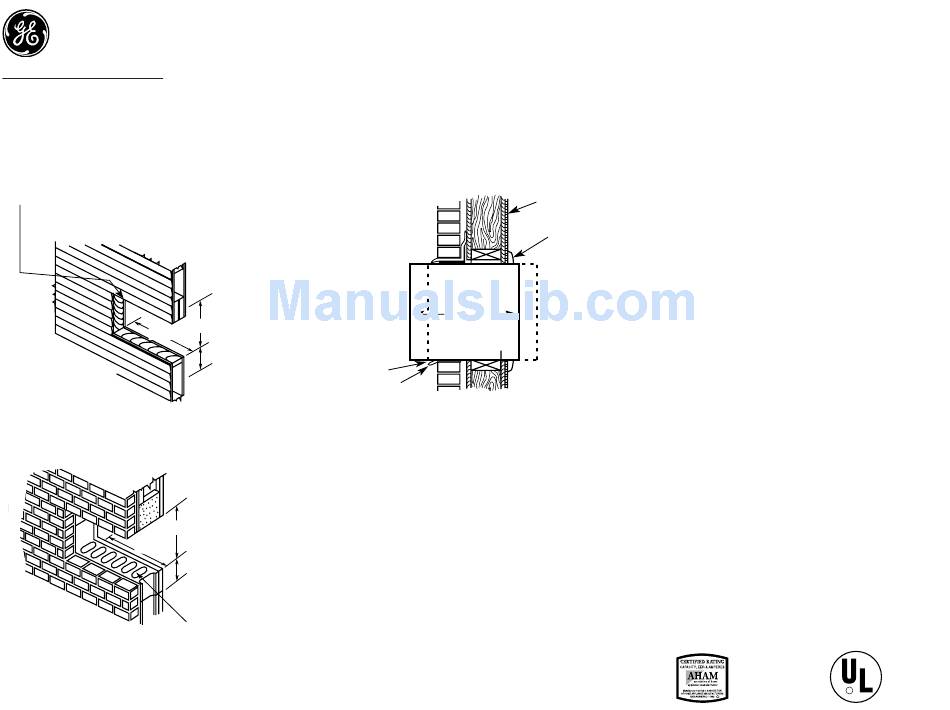

AJCH10DC—"J Series" High Mount Cool Unit
Dimensions (in inches)
Make frame if desired or caulk
between case and siding
26-1/8
Frame Construction
Lintel
15-3/4
26-1/8
Brick Block and Brick
Frame Construction
Created 1/98
OUTSIDE
15-3/4
5" Min.
Caulking
from floor
Drip Rail
Flexible Mounting Position
5" Min.
from floor
Fill open cells
with mortar
or insulation
Plaster Line
Trim Molding
Lintel
(if desired)
INSIDE
16-7/8
Installation Informaion: A finished opening of
26-1/8" x 15-3/4" clear of intrusions is required. Keep
clearance of 4" from side walls. Brick veneer or frame
walls should have wood studding surrounding case to
provide firm anchoring with screws. Case can be fastened
directly to brick or block walls with screws sunk in lead
expansion shields.
For answers to your Monogram,
®
GE Profile
Performance Series,
™
GE Profile,
™
GE,
Hotpoint and RCA appliance questions, call
GE Answer Center
®
service, 800.626.2000.
Total capacity and E.E.R.
ratings are calculated
based on the Association
of Home Appliance
R
R
Manufacturers' standards.
Listed by
Underwriters
Laboratories
