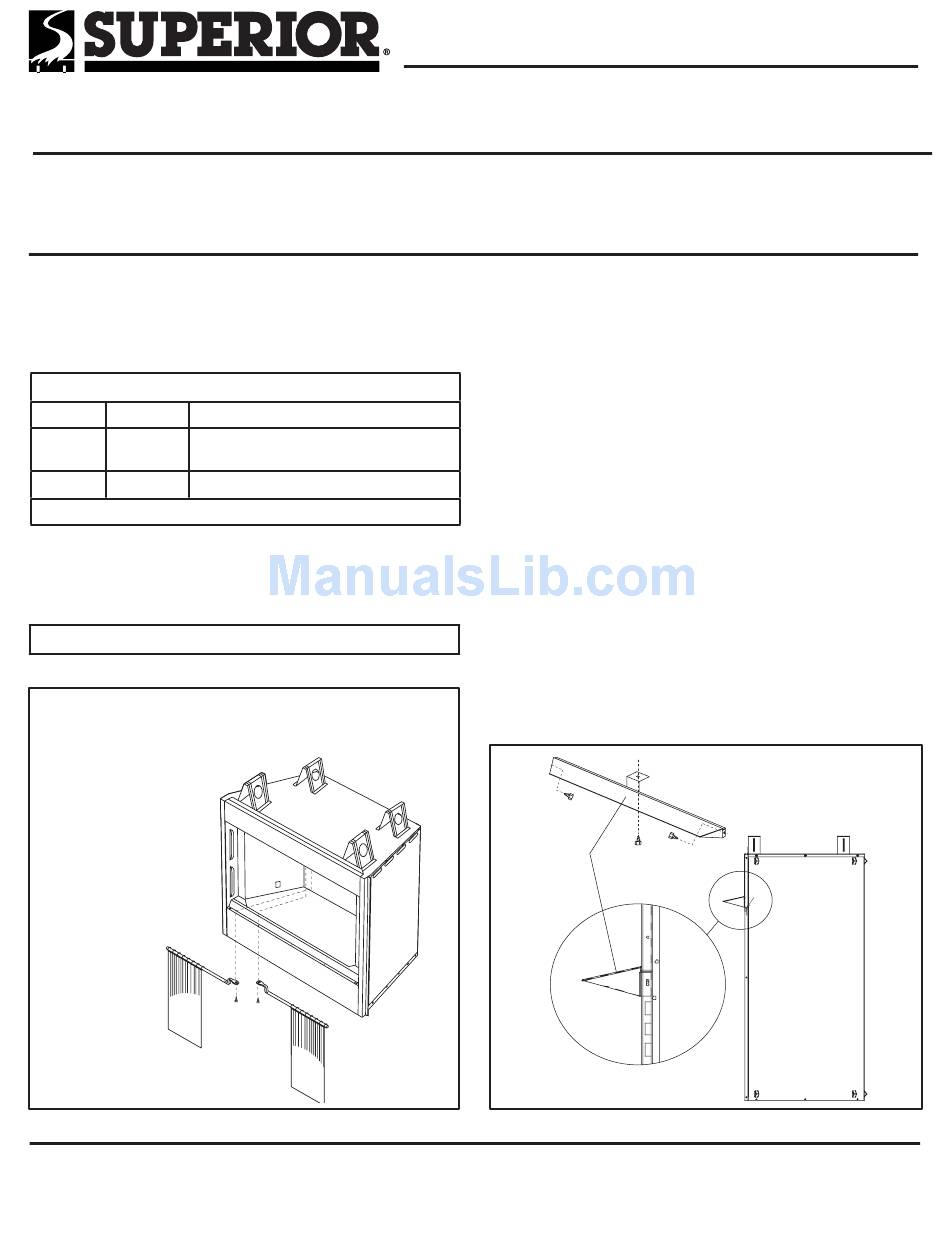

Superior H1989 Installation Instructions

KIT CONTENTS:

1 ea. Charcoal Canopy Hood
3 ea. Screws
1 ea. Instruction Sheet
Charcoal Canopy Hood Kits
CAT. NO. MODEL NO.
UVF-36, UVFRC-3628,
H1989 FC36
UVFRC-3628-H (UVF-36 standard part)
H1990 FC42 UVFRC-4228 & UVFRC-4228-H
Table 1

TOOLS NEEDED:

5/16" Nut Driver or Socket
INSTALL ONLY WHEN APPLIANCE IS OFF AND COLD!
Removing Screens & Rods:
Remove screws (see dotted
lines). Pull out rods from
locating holes on side of fi rebox
opening.
Reinstalling Screens & Rods:
Insert rods into corresponding
locating holes on sides of fi rebox
opening, then reinstall screws
as shown.
Figure 1
LHP reserves the right to make changes at any time, without notice, in design, materials, specifi cations, prices and the discontinuance of colors, styles and products. Consult your local
distributor for fi replace code information.
Printed in U.S.A. © 2006 by LHP
P/N 750,195M REV. NC 03/2006
INSTALLATION INSTRUCTIONS FOR CANOPY HOOD KITS
FOR USE WITH UVF-36, UVFRC-3628, UVFRC-3628-H
UVFRC-4228 & UVFRC-4228-H UNIVERSAL VENTFREE FIREBOXES
WHERE USED
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
750,195M
Rev. NC, 03/2006

GENERAL INFORMATION

These canopy hood kits are design to be fi tted to the face of the appliance
directly above the fi rebox opening. In addition to providing an aesthetically
pleasing appearance to your appliance installation, the canopy reduces
heat effects to decorative mantels and fi nish materials located directly
above the fi replace and reduces the Mantel / Trim clearances (see Figure
4 in the Installation and Operation Manual).
NOTE: A canopy hood is a standard part for model UVF-36. This
model requires a canopy hood on all installations.
The manufacturer recommends that the installation and Operation Manual
provided with the appliance be read completely and understood thoroughly
before proceeding with the installation of these kits. ALL WARNINGS AND
PRECAUTIONS IN THAT DOCUMENT APPLY TO THESE INSTRUCTIONS.
INSTALLATION INSTRUCTIONS
The factory-supplied canopy must be installed on the fi rebox for safe
operation for model UVF-36 (this part is optional for other models).
Step 1. Remove screen and rod assemblies as shown in Figure 1.
Step 2. Align the canopy with the holes in the side frames.
Step 3. Install three screws as shown in Figure 2.
Step 4. Make sure canopy is level and secure.
Step 5. Reinstall screen and rod assemblies (see Figure 1)
Canopy
Figure 2
Page 1 of 1
