READ AND SAVE THIS INSTRUCTION MANUAL
S U N P E N TO W N
Air Cooler
Model
SF-609

Functions

1. Cooling, humidifying and air
purifying
2. Adopted photo-catalysis
technology, Anti-bacterial water
tank and germ-free water curtain
cycle system
3. Three fan air speeds with Sleep
Mode function
4. Automatic swing
5. Timer from half an hour to
Seven and a half hours
6. Castor wheels for portability
7. Remote control
8. Ionizer adopted
Contents
Parts Name
Product Appearance
Control Panel
Important Safety Notes
Operation
Specifications
Circuit Diagram
Maintenance
Trouble Shooting
Your Guarantee
Please read the instruction carefully
prior to use.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Air Cooler SF-609 and is the answer not in the manual?

Questions and answers

Related Manuals for Sunpentown Air Cooler SF-609

Summary of Contents for Sunpentown Air Cooler SF-609

  • Page 1 READ AND SAVE THIS INSTRUCTION MANUAL S U N P E N TO W N Air Cooler Model SF-609 Contents Functions 1. Cooling, humidifying and air Parts Name purifying Product Appearance 2. Adopted photo-catalysis Control Panel technology, Anti-bacterial water Important Safety Notes tank and germ-free water curtain Operation cycle system...

  • Page 2: Control Panel

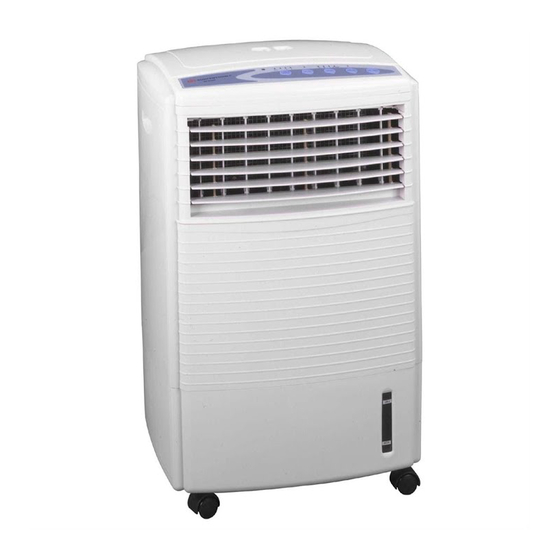

    Parts Name 1. Product Appearance Front view Rear view Top l i d I ce box Cont r ol panel Scr ew H andl e Cool ai r out l et Fi l t er net I ce & W at er I nl et Pow er l i ne W at er t ank Cast or...
  • Page 3 2. To avoid electric shock or personal injury, do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return the unit to Sunpentown (see warranty) for examination, repair or adjustment.
  • Page 4 To avoid catching a cold while sleeping, the Sleep mode will automatically decrease the fan speed slowly. Timer can also be used in Sleep mode. 3. SWING button Press the SWING button to select the swinging function: o Press once to turn on the swinging function (indicator light is on), which can cover 60°...

  • Page 5: Specifications

    Specifications Model Rated Rated Rated Water Water Tank Speed Dimensions N.W. Voltage Frequency Power Consumption Capacity SF-609 ~120V 60Hz 0.6-0.7L/h 7m/s 5.4”x11.8”x25.2” 16.5lb Circuit diagram Leaf Motor Water Pump Motor Capaci t or COOLF/R H M L Siren PCB Mai n Mot o r Ci r cui t Di a gram Maintenance Cleaning the filter net and water tank...

  • Page 6: Troubleshooting

    5. All replacement parts or units will be new or reconditioned. 6. Parts or units, which are replaced, become the property of Sunpentown. 7. The warranty applies for the use of the product in the USA. 8. Warranty does not include freight charges.
