Sold through Sylvane LLC - 800-934-9194

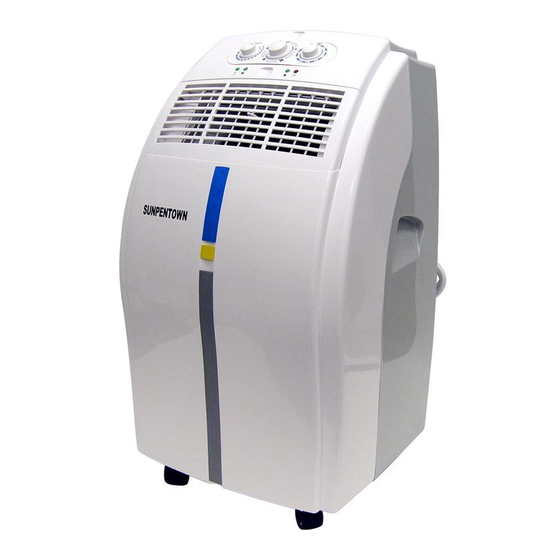

Portable Air Conditioner / Heater
Your Guarantee
If this product is found to be faulty as a result of faulty materials
or workmanship within one year from date of purchase, it will
be repaired or replaced free of charge.
This guarantee is subject to the following terms:
SUNPENTOWN, must be notified of the fault.
Proof of purchase must be presented to SUNPENTOWN's nominated representative.
The warranty will be void if the product is modified,
misused or repaired by an unauthorized person.
The guarantee after repair or replacement will not be
extended beyond the original one year period.
All replacement parts or units will be new or reconditioned.
Parts or units, which are replaced, become the
property of SUNPENTOWN.
The warranty applies to the use of this product in the United States.
Warranty does not include freight charges.
This GUARANTEE is in addition to your Statutory Rights.
Dear Customer: Please keep this warranty for your record. DO NOT return it.
14
Instruction Manual
For models WA-1010E, WA-1010H, WA-1010M
P O R T A B L E
Air Conditioner
It is important that you read
these instructions before
using your new purchase and
we strongly recommend that
you keep them in a safe place
for future reference.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sunpentown WA-1010H
Summary of Contents for Sunpentown WA-1010H
-
Page 1: Air Conditioner
This GUARANTEE is in addition to your Statutory Rights. Dear Customer: Please keep this warranty for your record. DO NOT return it. Instruction Manual For models WA-1010E, WA-1010H, WA-1010M P O R T A B L E Air Conditioner It is important that you read... -
Page 2: Maintenance
Maintenance Always unplug the unit from the mains before beginning the cleaning. Cleaning the Housing Use a soft, damp cloth to wipe the body clean. Never use strong chemicals, oil-based products, detergents, chemically treated cloths or other cleaning solutions. These could possibly damage the cabinet. Cleaning the Filter Use a vacuum cleaner or tap the filter lightly to remove loose dust and dirt from the filters and then rinse them thoroughly under running water (no hotter than 104°F). -
Page 3: Before Use
Operation - Mechanical Models Setting the Temperature Turn the THERMOSTAT to regulate the temperature you desire: range 64°F to 90°F. Setting the Timer Set the TIMER to the desired operating time (1 to 8 hours). When the set time has elapsed, the machine will shut off automatically. Regulating the Airflow Direction Turn the roller on the air vent to control the airflow direction from the vertical louvres. -
Page 4: Parts
Operation - Electronic Control Models Setting The Fan Speed Press the SPEED button to choose the fan speed you require, high or low. The indicator of high or low fan will light up at the same time. If the unit is in AUTO mode, it will select the fan speed automatically according to the ambient temperature (the related indicators, cool, fan or heat will light up), at this time the fan speed switch is invalid. -
Page 5: Mounting The Exhaust Pipe
Press the MODE button to select the required working mode: Automatic, Cooling, Fan or Heating (Heating is only available for WA-1010H). The green indicator illustrating your selected mode lights up. It is recommended to select Cooling or Heating mode and set your desired temperature, as the Auto mode has a preset temperature (please see below) that cannot be changed. -
Page 6: Turning On/Off
Parts 1. Control Panel 5. Air Filter 2. Cooling Air Outlet 6. Air Inlet 3. Handle 7. Exhaust Air Outlet 4. Castors 8. Cord Hanger 9. Water Stopper (Rubber Plug Inside) Accessories 10. Adaptor - for insertion over the hose and into the back of the air conditioner. -
Page 7: Drainage
Conditioners. If the unit is operated in VERY HUMID air, water will collect in the container inside the unit. If the water container is full, the compressor will stop, but the fan will continue to circulate the air. WA-1010H The POWER indicator will blink to inform you to empty the internal container. -
Page 8: Table Of Contents
Table of Contents THANK YOU...1 Energy Saving Tips ...1 SPECIFICATIONS ...2 BEFORE USE...3 PARTS ...4 Accessories...4 INSTALLATION ...5 Mounting the Unit ...5 Mounting the Exhaust Pipe...6 Installation of the Carbon Filter ...6 OPERATION - ELECTRONIC CONTROL MODELS ...7 Control Panel ...7 Turning On/Off...7 Setting Mode / Function...7 Auto Mode...7...
