Sunpentown SF-614P Instruction Manual

Evaporative air cooler
Hide thumbs

Advertisement

Quick Links

Download this manual
To Buy: Visit www.sylvane.com or call (800) 934-9194
Product Support: Contact Sunpentown at 1-800-330-0388

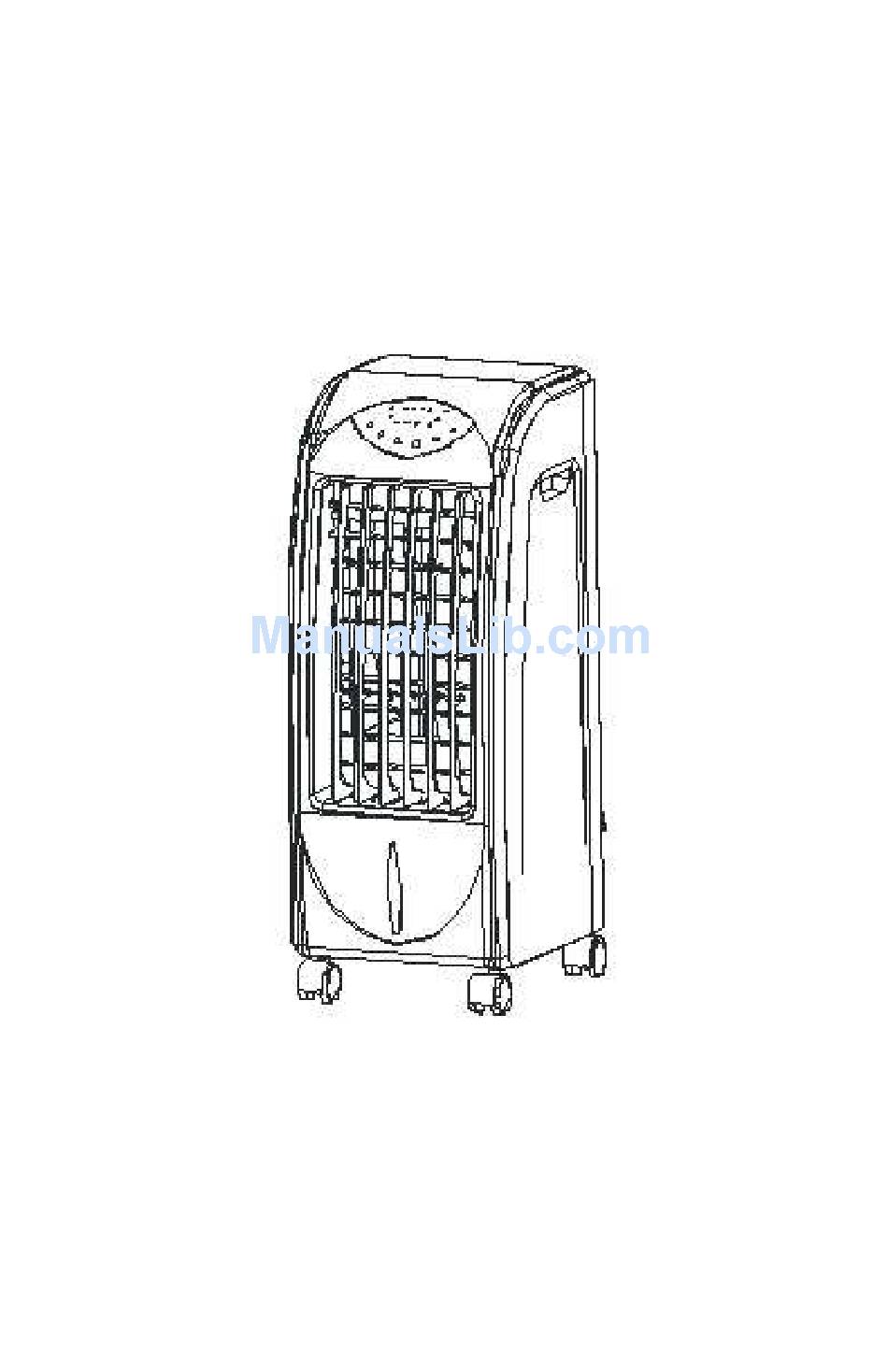

EVAPORATIVE AIR COOLER
INSTRUCTION MANUAL
Model: SF-614P
Please read this manual thoroughly before using this
product. Keep in a safe place for future reference.

Advertisement

loading

Related Manuals for Sunpentown SF-614P

Summary of Contents for Sunpentown SF-614P

  • Page 1 To Buy: Visit www.sylvane.com or call (800) 934-9194 Product Support: Contact Sunpentown at 1-800-330-0388 EVAPORATIVE AIR COOLER INSTRUCTION MANUAL Model: SF-614P Please read this manual thoroughly before using this product. Keep in a safe place for future reference.

  • Page 2: Table Of Contents

    CONTENTS A. PRODUCT INTRODUCTION ………………………2 B. TECHNICAL PARAMETER ………………………2 C. CONSTRUCTION DIAGRAM ……………………..3 D. CONTROL PANEL & OPERATION ……………….4 MODE SCHEMATICS ………………………………5 E. MAINTENANCE AND STORAGE …………………6 F. CAUTION ……………………………………………7 G. WARRANTY ………………………………………….8...

  • Page 3: Product Introduction

    A. PRODUCT INTRODUCTION This Evaporative Air Cooler, Humidifier, and Fan is a versatile and an economical way to cool and humidify the surrounding air. The Cooler easily rolls from room to room. Oscillating louvers for even distribution of refreshing cool air. Can also be used as a fan or humidifier if temperature is not an issue.

  • Page 4: Construction Diagram

    C. CONSTRUCTION DIAGRAM Control Handle Air outlet Water level indicator Wheel Back Power cord Honeycomb Dust filter pad (behind filter) Water tank Remote Control The functions on the remote are the same as the control panel for the exception of timer (deduction function).

  • Page 5: Control Panel & Operation

    D. CONTROL PANEL & OPERATION ON/OFF button: Turns the unit on or off Indicator light illuminates when unit is plugged in. Unit operates in default High fan speed. SPEED button: Selects fan speed: Low – Medium – High. Corresponding indicator light will illuminate. SWING button: Starts/stops horizontal swing of vertical louvers Swing indicator light will illuminate.

  • Page 6: Mode Schematics

    Natural Mode Schematics High speed ： 2.5S 7.5S t=80sec Medium speed: 2.5S 2.5S 7.5S t=80sec Low speed ： 2.5S 2.5S 2.5S 7.5S 7.5S t=80sec Sleep Mode Schematics High speed ： 2.5S 7.5S t=80sec Medium speed ： 2.5S 2.5S 7.5S t=80sec Low speed ：...

  • Page 7: Maintenance And Storage

    E. MAINTENANCE AND STORAGE With use, the filter and honeycomb pad will become clogged with dust, which will greatly affect the unit’s performance. Sometimes mold and mildew may also occur, due to lack of water changes. It is recommended to clean the filter and honeycomb pad once every two weeks. 1.

  • Page 8: Caution

    F. CAUTIONS • Use correct power supply 110V / 60Hz. Plug into dedicated socket with minimum rating current of 5A. • After filling with water, do not tilt unit and avoid moving unit. Do not cover the unit. • Do not place any heavy objects on top of the air cooler. •...

  • Page 9: Warranty

    This guarantee is subject to the following terms: • Sunpentown must be notified of the fault. • Proof of purchase must be presented to Sunpentown’s nominated representative. • The warranty will be void if the product if modified, misused or repaired by an unauthorized person.
