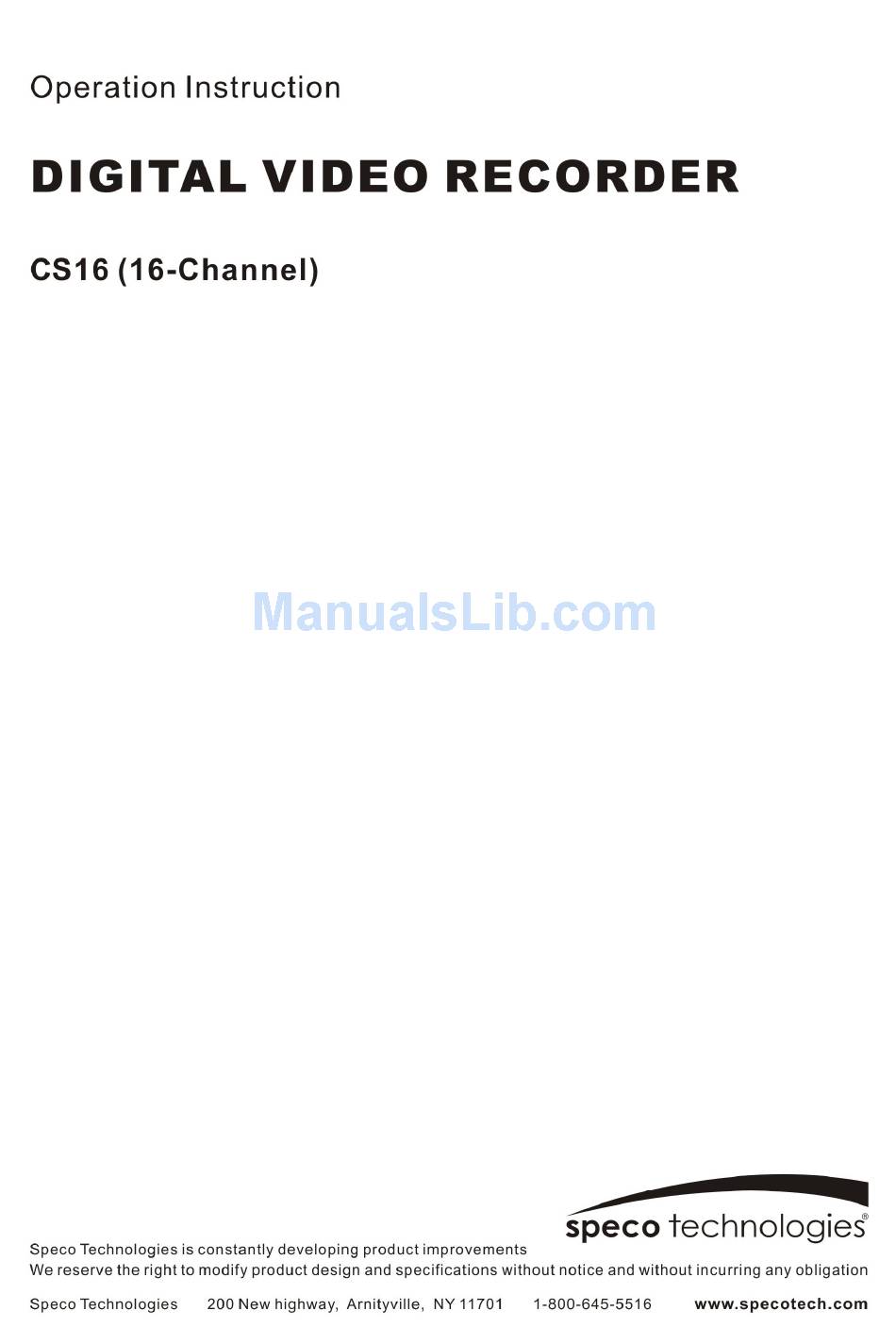

Speco CS16 Operation Instruction Manual

16 channel
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Summary of Contents for Speco CS16

  • Page 3: Compliance Notice Of Fcc

    16-Channel Digital Video Recorder WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...
  • Page 4: Important Safeguards

    Operation Instruction Important Safeguards 1. Read Instructions 10. Overloading All the safety and operating instructions should be read before the Do not overload wall outlets and extension cords as this can result appliance is operated. in the risk of fire or electric shock. 2.
  • Page 5: Table Of Contents

    16-Channel Digital Video Recorder Table of Contents Chapter 1 — Introduction ......................1 Feature ........................... 1 Technical Overview ........................ 1 Chapter 2 — Installation ......................3 Package Contents ........................3 Required Installation Tools ....................3 Video Input......................... 3 Video Out ........................... 4 Audio In/Out ........................
  • Page 6 Operation Instruction Setup Screen ........................12 System Setup ........................12 Information ........................12 Date/Time ........................14 Storage ..........................15 User ..........................16 EZ Setup .......................... 18 Shutdown ......................... 21 Recording Setup ........................21 Record ..........................21 Schedule .......................... 23 Pre-Event ......................... 24 Event Setup .........................
  • Page 7 Preparing the USB hard disk drive in Windows 98............65 Text-In Search Examples..................... 66 Search Example I ......................66 Search Example II ......................66 Speco Remote ........................67 Web Monitoring Mode ..................... 68 Web Search Mode ......................69 Time Overlap ........................71 Map of Screens ........................
  • Page 8 Figure 47 — DVRNS setup screen......................37 Figure 48 — RTSP setup screen......................38 Figure 49 — Speco Remote setup screen....................38 Figure 50 — Notification Callback setup screen..................39 Figure 51 — Notification Mail setup screen....................39 Figure 52 —...
  • Page 9: Chapter 1 - Introduction

    16-Channel Digital Video Recorder Chapter 1 — Introduction Feature Your color digital video recorder (DVR) provides recording capabilities for 16 camera inputs. It provides exceptional picture quality in both live and playback modes, and offers the following features:  16 Composite Video Input Connectors ...
  • Page 10: Figure 1 - Typical Dvr Installation

    Operation Instruction Figure 1 — Typical DVR installation.
  • Page 11: Chapter 2 - Installation

     Digital Video Recorder  Power Adaptor and Power Cord  Operation Instruction (This Document)  Speco Central Software CD and Operation Instruction  Infrared Remote Control Required Installation Tools No special tools are required to install the DVR. Refer to the installation manuals for the other items that make up part of your system.
  • Page 12: Video Out

    Operation Instruction Video Out Connect the main monitor to the Video Out connector. A VGA connector is provided so that you can use a standard, multi-sync computer monitor as your main monitor. Use the cable supplied with your monitor to connect it to the DVR. NOTE: The VGA and Video Out (BNC) connectors may be connected to individual monitors for simultaneous operation.
  • Page 13: Rs485 Port

    16-Channel Digital Video Recorder RS485 Port The DVR can be controlled remotely by an external device or control system, such as a control keyboard, using RS485 half-duplex serial communications signals. The RS485 connector can also be used to control PTZ (pan, tilt, zoom) cameras or text-in devices. Connect RX+/TX+ and RX-/TX- of the control system to the P (+) and N (–) (respectively) of the DVR.
  • Page 14 Operation Instruction To reset the unit, you will need a straightened paperclip: 1. Turn the DVR off. 2. Turn it on again. 3. While the DVR is initializing, the front panel LEDs will blink. When the front panel LEDs blink, poke the straightened paperclip into the unlabeled hole to the right of the VGA connector.
  • Page 15: Chapter 3 - Configuration

    16-Channel Digital Video Recorder Chapter 3 — Configuration NOTE: Your DVR should be completely installed before proceeding. Refer to Chapter 2 — Installation. Front Panel Controls Figure 3 — DVR front panel. Menu Button Copy Button Esc Button Play/Stop Button Camera Buttons Arrow Buttons Play/Pause Button...
  • Page 16: Play/Stop Button

    Operation Instruction Play/Stop Button Pressing the button enters the playback mode, and pressing the button again exits the playback mode. When PLAY/STOP entering the playback mode, video is paused. Pressing the (Play/Pause) button plays back video at regular speed. The screen displays when the DVR is in the Pause mode and the screen displays when the DVR is playing back video.
  • Page 17: Remote Control Buttons

    16-Channel Digital Video Recorder Remote Control Buttons ID Button Camera Buttons Sequence Button Login/Logout Button Arrow Buttons Menu Button Playback Buttons Alarm Button Layout Button Zoom Button PTZ Button Enter Button Esc Button PTZ Control Buttons Copy Button Play/Stop Button Figure 4 —...
  • Page 18: Arrow Buttons

    Operation Instruction Arrow Buttons These buttons are used to navigate through menus and GUI. You can also use them to change numbers by highlighting a number in the menu and using the Up and Down arrow buttons to increase or decrease the number’s value. When in the PIP display format, pressing the Up and Down arrow buttons moves the position of the small screen counter-clockwise and clockwise.
  • Page 19: Ptz Control Buttons

    16-Channel Digital Video Recorder PTZ Control Buttons While in the PTZ mode, the buttons are used to save Presets and load a Preset View, the buttons are used PRESET ZOOM to Zoom In and Zoom Out, and the buttons are used for Near Focus and Far Focus. FOCUS Copy Button Pressing the...
  • Page 20: Setup Screen

    Operation Instruction Setup Screen Figure 7 — Setup screen. Press the button or move the mouse pointer to the top of the screen and then select (Setup) in the Live MENU Monitoring menu to enter the setup screen. While setting up the DVR, there will be many opportunities to enter names and titles. When making these entries, a Virtual Keyboard will appear.
  • Page 21: Figure 9 - Information Setup Screen

    16-Channel Digital Video Recorder In the Information screen, you can name the site location, assign a System ID number, select the language the screens are displayed in, display software version number, upgrade the software, show the System Log, display recorded time data, and clear all data.
  • Page 22: Date/Time

    Operation Instruction Highlight Show System Log… and press the button to display the System Log. The System Log screen lists system activities (up to 5,000 from the latest) that have occurred along with the time and date. The icon will be displayed in the last column for system activities of the remote site.
  • Page 23: Storage

    16-Channel Digital Video Recorder You can set up holidays by highlighting + and pressing the button. The current date appears. Highlight the month and day and change them by using the Up and Down arrow buttons. Press the button to add the date.
  • Page 24: User

    Operation Instruction Highlight the box in the Format column for the desired storage device and press the button. You will be able to format the device for recording. When selecting Not Using from Use As and highlighting the Format button, the device will not be used for recording.
  • Page 25: Figure 15 - User Setup Screen

    PC running Speco Central.  System Time Change – The user can change the system date and time on a local system or a PC running Speco Central.  Data Clear – The user can clear all video data or format disks on a local system or a PC running Speco Central.
  • Page 26: Ez Setup

    Operation Instruction To add a User, highlight the + User… box and press the button. A virtual keyboard appears allowing you to enter the User Name. Enter the name and assign the User to a Group and password. You can use camera buttons 1 to 9 on the front panel to assign the password.
  • Page 27 16-Channel Digital Video Recorder Date/Time Setup  Date: Set the system date and select the date format.  Time: Set the system time and select the time format.  Time Zone: Select your time zone. The Time Zone can be selected on the map.
  • Page 28: Figure 18 - Ez Network Screen

    Operation Instruction Select the Finish button to finish the EZ Record and select the Go to EZ Network button to start the EZ Network. If you selected the Go to EZ Network, select the Next button to start the EZ Network. Figure 18 —...
  • Page 29: Shutdown

    16-Channel Digital Video Recorder DVRNS Setup  Use DVR Name Service: Select the box to use the DVR Name Service.  DVRNS Server: Enter the IP address or domain name of the DVRNS server.  Port: Set the port number of the DVRNS server. ...
  • Page 30: Figure 21 - Record Settings Screen

    Operation Instruction Highlighting Recycle and pressing the button toggles between On and Off. In the Recycle mode, the DVR records over the oldest video data once all available storage space has been used. When Recycle is turned off, the DVR stops recording once all available storage space has been used.
  • Page 31: Schedule

    16-Channel Digital Video Recorder Highlighting the Panic Recording – Quality and pressing the button allows you to set the recorded image quality for Panic recording. You can select from: Very High, High, Standard and Basic. Highlighting the Panic Recording – Resolution and pressing the button allows you to set the recorded image resolution for Panic recording.
  • Page 32: Pre-Event

    Operation Instruction When the DVR is in the Time & Event mode, the DVR will follow the Time settings and the icon displays at the top-left corner of the screen. The DVR follows the Event settings and the icon displays. Highlight the box under the Channels heading and press the button to select which cameras will be recorded.
  • Page 33: Event Setup

    16-Channel Digital Video Recorder When the DVR is in the Event Record mode it is possible to have it record images before the event occurs. The Pre-Event screen allows you to define how to handle pre-event recording. You can turn individual cameras On or Off for pre-event recording.
  • Page 34: Motion Detection

    NOTE: For the Notify action, the notify item you select should be enabled in the Notification setup screen and the DVR should be registered in the Speco Central (Remote Administration System). Highlight the desired box under the PTZ heading, and press button.
  • Page 35: Figure 30 - Motion Detection Settings Screen

    16-Channel Digital Video Recorder Your DVR has built-in video motion detection. Video motion detection can be turned On or Off for each camera. Figure 30 — Motion Detection Settings screen. Highlighting the box under the Sensitivity heading and pressing the button allows you to adjust the DVR’s sensitivity to motion for Daytime and Nighttime independently.
  • Page 36: Video Loss

    NOTE: For the Notify action, the notify item you select should be enabled in the Notification setup screen and the DVR should be registered in the Speco Central (Remote Administration System). Highlight the desired box under the PTZ heading, and press button.
  • Page 37: Video Blind

    NOTE: For the Notify action, the notify item you select should be enabled in the Notification setup screen and the DVR should be registered in the Speco Central (Remote Administration System). Highlight the desired box under the PTZ heading, and press the button.
  • Page 38: Figure 35 - Video Blind Settings Screen

    Operation Instruction The DVR checks to see if anything is blinding a camera. Figure 35 — Video Blind Settings screen. Highlighting the box under the Sensitivity heading allows you to adjust the DVR’s sensitivity to video blind for Black and White independently from 0 (Never) and 1 (least sensitive) to 15 (most sensitive).
  • Page 39: Text-In

    NOTE: For the Notify action, the notify item you select should be enabled in the Notification setup screen and the DVR should be registered in the Speco Central (Remote Administration System). Highlight the desired box under the PTZ heading, and press the button.
  • Page 40: System Event

    NOTE: For the Notify action, the notify item you select should be enabled in the Notification setup screen and the DVR should be registered in the Speco Central (Remote Administration System). Highlight the desired box under the PTZ heading, and press the button.
  • Page 41: Figure 40 - Health Check Screen

    16-Channel Digital Video Recorder The DVR can be configured to run self-diagnostics and report the results. Highlighting the box beside System and pressing the button allows you to select the interval that you want the DVR to run self-diagnostics on the system. You can select from 1 hr. to 30 days or Never.
  • Page 42: Event Status

    Highlight OK and press the button to accept your changes. NOTE: For the Notify action to work, the DVR should be registered in the Speco Central (Remote Administration System). Event Status Highlight Event Status in the Event menu and press the button.
  • Page 43: Network Setup

    Remote Audio Channel and pressing the button allows you to select the audio channel that sends audio to the remote site. Selecting Select From Speco Central will send audio of the channel selected from Speco Central. NOTE: Depending on network conditions, audio might be interrupted or out of synchronization during transmission.
  • Page 44: Figure 46 - Lan (Manual) Setup Screen

    Highlight the Port Number Setup… box and press the button. The Port Number Setup screen appears. NOTE: You will need to get the appropriate Port Numbers for each Speco Central and Speco Remote related program (Admin, Callback, Watch, Search and Audio) from your network administrator.
  • Page 45: Figure 47 - Dvrns Setup Screen

    16-Channel Digital Video Recorder Selecting DHCP from the Type and highlighting Save button reads the current IP address of the DVR configured by DHCP (Dynamic Host Configuration Protocol) network. Highlight Auto (Default) and press the button to toggle between On and Off. When it is On, the DVR will obtain the IP address of the DNS server automatically.
  • Page 46: Notification

    On and Off. When set to on, you can access a remote DVR using a Blackberry or other mobile devices. NOTE: Selecting Use Mobile sets the Speco Remote service to be enabled automatically regardless of Speco Remote settings.
  • Page 47: Figure 50 - Notification Callback Setup Screen

    16-Channel Digital Video Recorder The DVR can be set up to contact a computer running Speco Central (Remote Administration System) when an event occurs. Highlight the box under the No. heading and press the button to toggle between On and Off. You will only be able to change the IP addresses if No.
  • Page 48: Figure 52 - Notification Sns Setup Screen

    Operation Instruction Highlight the box beside Port and press the button. Use the arrow buttons to enter the SMTP Server port number obtained from your system administrator. The default port number is 25. Highlight Use SSL/TLS and press the button to toggle between On and Off. When it is On, the DVR can send an email via an SMTP server requiring SSL (Secure Sockets Layer) authentication.
  • Page 49: Devices Setup

    NOTE: For the Notify action, the notify item you select should be enabled in the Notification setup screen and the DVR should be registered in the Speco Central (Remote Administration System). Highlight the box beside Summary Email Interval and select the interval that you want the DVR to send a summary email.
  • Page 50: Figure 55 - Camera Setup Screen

    Operation Instruction You can turn the camera number On or Off, and you can change the Title of each camera using the virtual keyboard. You can also determine which cameras will display on the monitors by selecting Normal, Covert 1 or Covert 2 from a drop-down list in the Use column.
  • Page 51: Audio

    16-Channel Digital Video Recorder Audio Highlight Audio in the Devices menu and press the button. The Audio setup screen appears. The DVR can record up to four audio inputs. Highlight the box beside the input and press the button. A list of cameras appears, and you can select which camera you want associated with that audio input.
  • Page 52: Digital Deterrent

    Operation Instruction The Mode box allows you to set how the alarm reacts during the scheduled time. When set to On, the Alarm-Out is active during the scheduled time. When set to Event, the Alarm-Out is only active when there is an Event during the scheduled time.
  • Page 53: Display

    Ethernet. The icon displays when audio communication is available between the DVR and a PC running Speco Central via Ethernet.  Freeze & Sequence – The icon displays while in the Freeze mode, and the displays while in the Sequence mode.
  • Page 54: Figure 62 - Main Monitor Screen

    Operation Instruction Highlighting OSD Margin… and pressing the button displays how OSD text will be displayed on the monitor. You can adjust the horizontal and vertical margins so that text and icons will not be hidden beyond the edges of the monitor. Highlight the Main Monitor tab to switch to the Sequence screen.
  • Page 55: Remote Control

    16-Channel Digital Video Recorder Remote Control Highlight Remote Control in the Devices menu and press the button. The Remote Control setup screen allows you to select a port and make correct settings for a remote keyboard. Highlight the box beside Port and select from None, RS232 and RS485.
  • Page 56 Operation Instruction...
  • Page 57: Chapter 4 - Operation

    16-Channel Digital Video Recorder Chapter 4 — Operation NOTE: This chapter assumes your DVR has been installed and configured. If it has not, please refer to Chapters 2 and 3. The DVR’s controls are similar to a VCR. As with a VCR, the main functions are recording and playing back video. However, you have much greater control over recording and playing back video.
  • Page 58: Camera Menu

    Operation Instruction  Camera: Selecting Camera and choosing the camera number displays the selected camera full screen. It is the same as pressing the individual camera buttons on the front panel or clicking the left mouse button on a camera image when in one of the multiview formats (i.e., 2x2, 1P5, 1P7, 3x3 or 4x4).
  • Page 59: Search Mode

    16-Channel Digital Video Recorder  PTZ: Selecting PTZ and choosing the camera number allows you to control the selected camera as long as it has Pan, Tilt and Zoom capabilities. Refer to the following PTZ Mode section for details.  Zoom: Selecting Zoom and choosing the camera number zooms the current image of the selected camera on the screen.
  • Page 60: Active Cameo Mode

    Operation Instruction Active Cameo Mode You can enter the Active Cameo mode by selecting (Display)  Edit Group in the Live Monitoring menu in any multi-view format. The yellow outline surrounding the video indicates the active cameo, and pressing the arrow buttons moves the active cameo.
  • Page 61: Event Monitoring

    16-Channel Digital Video Recorder You can save camera position settings as “presets” so that you can go directly to desired views. Once you have the camera at the desired settings, press the button, PRESET SET and the Set Preset dialog box will appear. Select the number you want to assign to the preset and press the (Play/Pause) button.
  • Page 62: Covert Camera

    Operation Instruction Covert Camera If a camera is set up as Covert 1 in the Camera setup screen (Settings tab), that camera will not be displayed unless a user with Covert Camera View authority logs into the system. However the camera title and status icons will be displayed on the monitor.
  • Page 63: Searching Video

    16-Channel Digital Video Recorder Selecting All Channels plays back video of all cameras. The DVR maintains the same display format as it does in the live mode except for the PIP format. You can also change the screen layout in the same way as you do in the live mode.
  • Page 64: Search Menu

    Operation Instruction Display Search Go To Bookmark Export Camera Menu Alarm Digital Deterrent Panic Data Source Exit Figure 69 — Search menu. NOTE: The Search menu also can be displayed by moving the mouse pointer to the top of the screen. Search Menu Display Selecting...
  • Page 65 16-Channel Digital Video Recorder Move the cursor over the date and time and press the (Play/Pause) button. You can use the Left and Right arrow buttons to highlight the year, month, day, hours, minutes and seconds. Use the Up and Down arrow buttons to change to the date and time you want to search for video.
  • Page 66: Event Log Search

    Operation Instruction Data Source Selecting (Data Source) in the Search menu allows you to select the data source to be searched. Selecting Record searches recorded data on primary storage installed in the DVR, and selecting Other searches recorded data on storage used for another DVR then installed in this DVR.
  • Page 67: Record Table Search

    16-Channel Digital Video Recorder Highlight the box beside Video Loss and press the button. You can select the cameras for which you want any reports of lost video. Highlight the box beside Video Blind and press the button. You can select the cameras for which you want any reports of blind video.
  • Page 68: Calendar Search

    Operation Instruction Selecting located at the bottom zooms the record table. Selecting displays eight hours (1-minute based), and selecting displays 24 hours (3-minute based) at once. To move to earlier or later times that are not shown in the current record table screen, select the arrows located at the end of the times by using the arrow buttons on the front panel. NOTE: If the DVR has images recorded in more than one recording mode in the same time range, the recording status bar displays recording information in the following priority order: Panic ...
  • Page 69: Motion Search

    16-Channel Digital Video Recorder Motion Search The Motion Search… can be selected from the Search menu while the DVR displays the camera full screen. The Motion Search screen displays a list of motion events. Use the arrow buttons to highlight the event for which you would like to see video and press the (Play/Pause) button to display the video associated with the selected event on the small search screen.
  • Page 70: Text-In Search

    Operation Instruction Text-In Search The DVR maintains a log of each time there is Text Input. The Text-In Search screen displays this list. Use the arrow buttons to highlight the event for which you would like to see video. Pressing the (Play/Pause) button will extract the video associated with the Text Input and display the first image of the event.
  • Page 71: Bookmarks

    16-Channel Digital Video Recorder Bookmarks The Bookmarks screen can also be accessed by selecting (Bookmark) in the Search menu when in playback mode. Highlight + and press the (Play/Pause) button to add the current playback point to the bookmark list. Highlight the Title box and enter the name of the registered bookmark.
  • Page 72 You can return to the Clip-Copy screen at any time to check the progress. You do not need to install any special software on your personal computer to review the video clips. Refer to Speco Central Operation Instruction for instructions on how to review video clips you have copied.
  • Page 73: Appendix

    16-Channel Digital Video Recorder Appendix USB Hard Disk Drive Preparation Preparing the USB hard disk drive in Windows 2000 NOTE: Preparing a USB hard disk drive under Windows XP, Window Vista and Window 7 is almost identical to Windows 2000. Connect the USB hard disk drive to your computer using the USB Cable.
  • Page 74: Text-In Search Examples

    Operation Instruction Text-In Search Examples Search Example I 123456789012345678901234567890123456789012345678901234567890 Item Unit price amount ================================================== Coke 2.20 | 1(s) | $ 2.20 Fanta 2.20 | 1(s) | $ 2.20 Hotdog 3.50 | 3(s) | $ 10.50 Pepsi 1.95 | 1(s) | $ 1.95 ================================================== total : $...
  • Page 75: Speco Remote

    – DVRNS server) NOTE: You will need to get the appropriate IP address for the DVR you want to connect to and the Speco Remote port number from your network administrator. Speco Remote only works with Microsoft Internet Explorer and will NOT work with other browsers.
  • Page 76: Web Monitoring Mode

    Operation Instruction NOTE: There might be a problem that the bottom of Speco Remote page is cropped due to the address or status bars in Microsoft Internet Explorer 7.0. In this situation, it is recommended that websites open windows without address or status bars by changing the internet setting. (Go to the Tools  Internet Options ...
  • Page 77: Web Search Mode

    Leaving the Camera Title blank causes the camera name set up on the remote site to display. icon will display on each camera screen when audio communication is available between the Speco Remote system and a DVR. Web Search Mode Remote Search is a remote web search program that allows you to search recorded video on the remote DVR.
  • Page 78 ③ Position the mouse pointer on the Remote Search logo to see the version of the Speco Remote program. ④ The DVR information window displays the time information of recorded data on the remote DVR and login information of Speco Remote.
  • Page 79: Time Overlap

    16-Channel Digital Video Recorder ⑭ Selecting a camera on the screen and clicking the right mouse button displays the text menu screen.  Change Camera Title: Changes the camera name.  Enable Audio: Plays audio while playing back recorded video that has recorded audio. (Single-Screen Layout Only) ...
  • Page 80: Map Of Screens

    Operation Instruction Map of Screens...
  • Page 81: Troubleshooting

    16-Channel Digital Video Recorder Troubleshooting Problem Possible Solution  Check power cord connections. No Power  Confirm that there is power at the outlet.  Check camera video cable and connections.  Check monitor video cable and connections. No Live Video ...
  • Page 82: Error Code Notices

    Operation Instruction Error Code Notices System Upgrade Related Clip Copy Related Description Description Unknown error. Unknown error. File version error. Device error. Operating system version error. Mounting failed. Software version error. No media. Kernel version error. Invalid media. Upgrade device mounting failed. File already existed.
  • Page 83 16-Channel Digital Video Recorder INPUTS/OUTPUTS Alarm Input 16 terminal, programmable as NC or NO, 2.4V (NC) or 0.3V (NO) threshold, 5VDC Alarm Output 1 relay output, 2A@125VAC, 1A@30VDC (NO) Internal Buzzer 80dB at 10cm Network Connectivity 10/100 Mbps Ethernet (RJ-45) Audio Input RCA Input: 4 Line In Audio Output...
