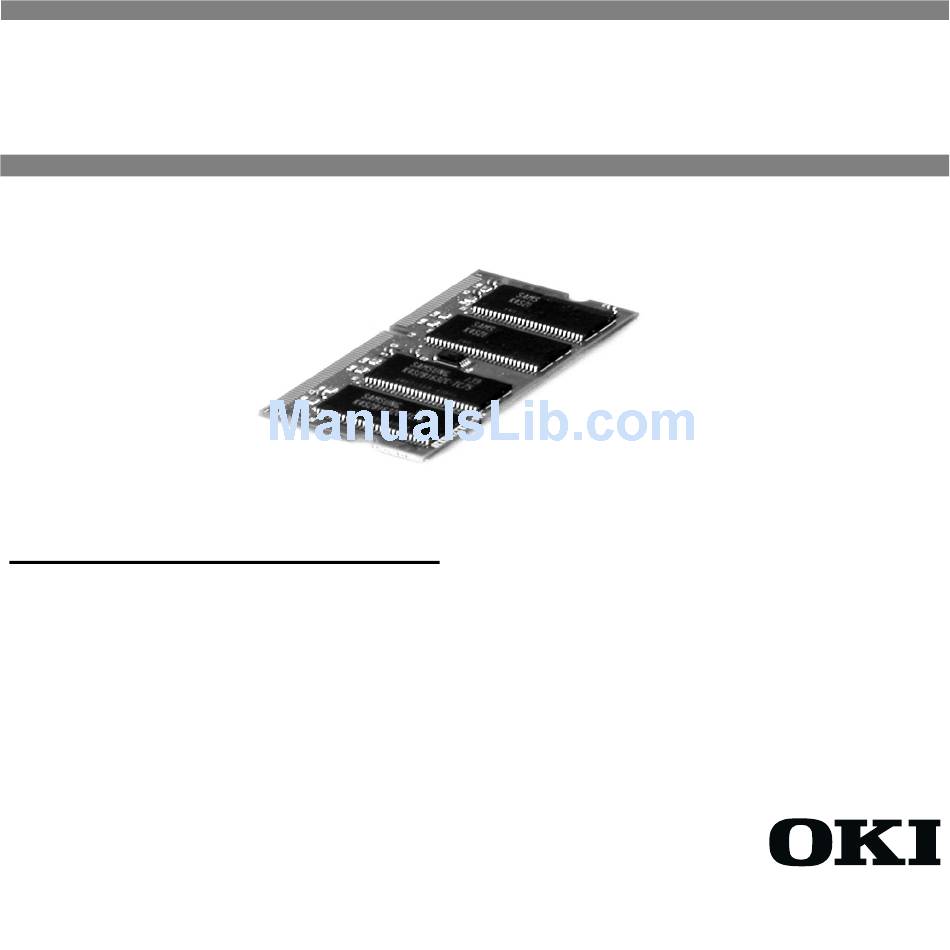

Page 1: Memory Dimm

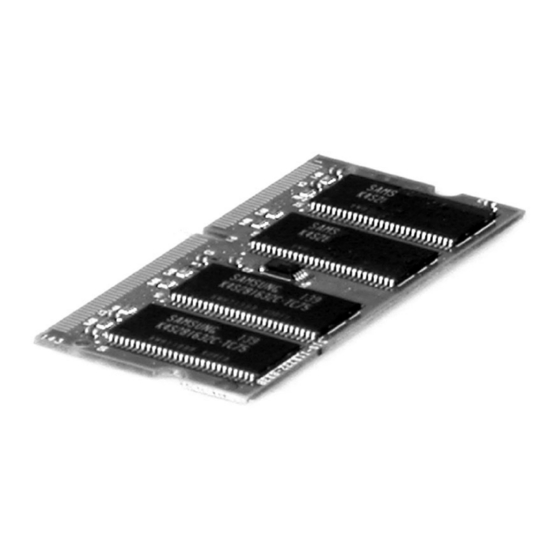

Memory DIMM Installation Instructions DIMM PART NUMBERS C5100/ C5150n/ C5200ne/C5200n 64 MB: 70042801 256 MB: 70042901 C5300/ C5400/C5400n 64 MB: 70043001 128 MB: 70043101 256 MB: 70043201... - Page 2 Every effort has been made to ensure that the information in this document is complete, accurate, and up-to-date. Oki Data assumes no responsibility for the results of errors beyond its control. Oki Data also cannot guarantee that changes in software and equipment made by other manufacturers and referred to in this guide will not affect the applicability of the information in it.
-
Page 3: Getting Started
The printers have one socket for an optional memory DIMM board. You can expand the printer's memory by adding up to 256 MB of additional memory. Model Memory Provided Maximum Memory C5100, C5150n, 32 MB 288 MB (256 + 32) C5200ne, C5200n C5300, C5400, C5400n 64 MB... -
Page 4: Prepare The Printer
Prepare the Printer 1. First: • Turn off the printer (1). • Unplug the power cord (2). • Detach the interface cable—USB, parallel, or Ethernet—from the back of the printer (3). - Page 5 2. Open the top cover. 3. Loosen the thumbscrew holding the printer side cover in place.
- Page 6 4. Open the front cover. 5. Lift up on the ends and remove the side panel from the printer.
- Page 7 Install the DIMM Caution! Circuit boards can be damaged by static electricity and rough handling. Keep the board in its packaging until you're ready to install it. 1. Locate the DIMM socket. C5100, C5150n, C5200ne, C5200n C5300, C5400, C5400n...
- Page 8 2. Push out the lock tabs at either end of the DIMM socket. C5100, C5150n, C5300, C5400, C5400n C5200ne, C5200n Caution! To avoid damage, ground yourself (touch metal) before handling DIMMs. 3. Remove the DIMM from its shipping package.
- Page 9 C5100, C5150n, C5300, C5400, C5400n C5200ne, C5200n • C5100, C5150n, C5200ne, C5200n: Hold the DIMM vertically, with the narrower metallic contact edge (1) at the bottom. • C5300, C5400, C5400n: Hold the DIMM horizontally, with the narrower metallic contact edge (1) to the right.
-
Page 10: Complete The Installation
Complete the Installation 1. Replace the side panel on the printer and secure it in place with the thumbscrew. - Page 11 2. Close the front cover. 3. Close the top cover. 4. Reattach the computer interface cable. 5. Plug in the power cord and turn on the printer.
-
Page 12: Check For Proper Installation
3. Check the top of the MenuMap printout to verify that the Total Memory Size indicated matches the combined total of the printer’s standard memory (C5100, C5150n, C5200ne, C5200n = 32 MB; C5300, C5400, C5400n = 64 MB) and the memory of the DIMM you installed. - Page 13 Change the Memory Setting in the Driver(s) Windows ® Postscript Emulation Driver, C5300/C5400n 1. Click Start → Settings → Printers [Printers and Faxes for XP]. 2. Right click the appropriate printer icon, then click Properties. Windows XP, 2000 and NT 4.0: a.
- Page 14 PCL Driver, C5300/C5400/C5400n No changes are necessary in the PCL driver. Hiper-C Driver, C5100/C5150n/C5200ne/C5200n No changes are necessary in the Hiper-C driver. ® Macintosh , C5300 C5400n Mac OS 9.1+ 1. Activate Chooser from the Apple menu. 2. Select LaserWriter 8.
- Page 15 Mac OS X.2 1. Activate Print Center from Local Hard Drive → Applications → Utilities → Print Center. 2. Highlight the printer name and select from the menu Printers → Show Info. 3. Next to Memory Configuration, click on the drop drown menu to select the total installed available memory (new DIMM + 64 MB resident) to enable the option.
-
Page 16: Limited Warranty: U.s And Canada
Limited Warranty. Oki Data will repair (or at its option, replace) at no charge, any defective part(s) of the OPTION for one (1) year from the date of purchase. This Limited War- ranty extends to the original purchaser only. - Page 17 Additional information on obtaining service under this Limited Warranty is available by contacting the Oki Data dealer from whom the product was pur- chased, by contacting Oki Data directly at 1-800-654-3282 (1-800-OKI-DATA, U.S. and Canada, English only) or at 1-856-222-5276 (Spanish only), or by contacting one of the listed service locations.
- Page 18 Tel: 1-800-654-3282 Tel: 800-654-3282 Fax: 1-856-222-5247 Fax: 905-238-4427 MEXICO BRAZIL Oki Data de Mexico, S.A. de C.V. Oki Data do Brasil, Ltda. Mariano Escobedo No. 748 - 8 Piso Rua Alexandre Dumas, Col Anzures, e.p. 11590 2220 - 8 andar Mexico, DF Chácara Sto Antonio...
- Page 20 Oki Data Americas, Inc. 2000 Bishops Gate Blvd. Mt. Laurel, NJ 08054-4620 Phone: (800) 654-3282 FAX: (856) 222-5320 www.okidata.com 59358901...
