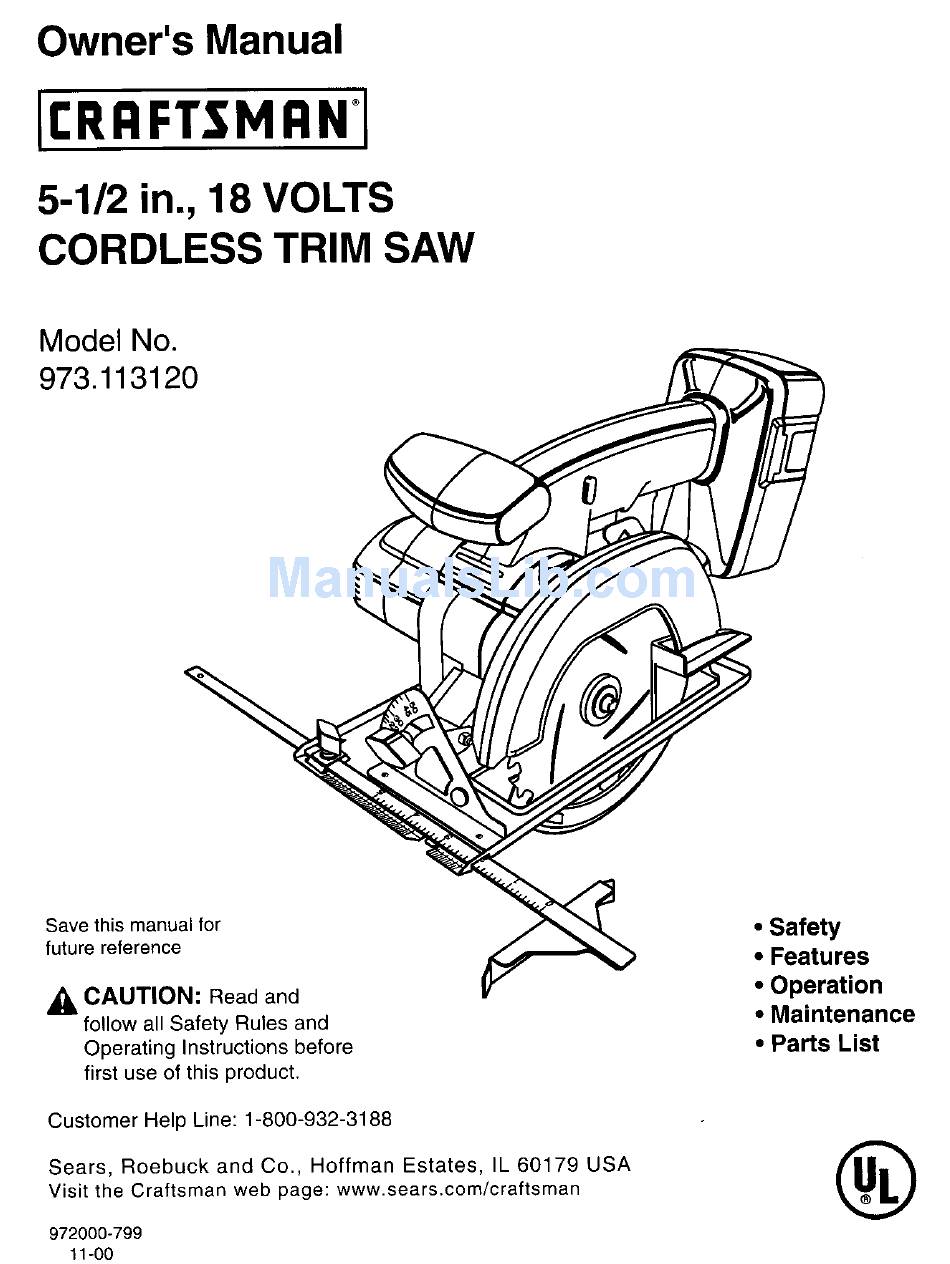

Owner's Manual
5-1/2 in., 18 VOLTS
CORDLESS TRIM SAW
Model No.
973.113120
Save this manual
for
future reference
_, CAUTION:
Read and
follow all Safety Rules and
Operating
Instructions
before
first use of this product.
Customer
Help Line: 1-800-932-3188
Sears,
Roebuck
and Co., Hoffman
Estates,
IL 60179
USA
Visit the Craftsman
web page: www.sears.com/craftsman
972000-799
11-00
• Safety
• Features
• Operation
• Maintenance
• Parts List
®

Advertisement

loading

  Related Manuals for Craftsman 973.113120

  Summary of Contents for Craftsman 973.113120

  • Page 1 Read and • Maintenance follow all Safety Rules and • Parts List Operating Instructions before first use of this product. Customer Help Line: 1-800-932-3188 ® Sears, Roebuck and Co., Hoffman Estates, IL 60179 Visit the Craftsman web page: www.sears.com/craftsman 972000-799 11-00...
  • Page 2 • Table of Contents ............................• Warranty and Introduction ..........................• Rules For Safe Operation ........................... A. Important Safety Rules For Battery Tools ....................B. Important Safety Instructions For Charger ..................... C. Important Safety Instructions For Trim Saws ..................• Product Specifications and Unpacking ......................
  • Page 3 The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and the explanations with them, deserve your careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention measures.
  • Page 4 WHEN SERVICING USE ONLY IDENTICAL indicated elsewhere in this instruction manual. CRAFTSMAN REPLACEMENT PARTS. • DO NOT USE TOOL IF SWITCH DOES NOT IMPORTANT...
  • Page 5 RULES FOR SAFE OPERATION (Continued) • Make sure cord is located so that it will not be • KEEP BLADES CLEAN AND SHARP. Sharp stepped on, tripped over, or otherwise subjected blades minimize stalling and kickback, to damage or stress. KEEP HANDS AWAY FROM CUTTING AREA.
  • Page 6 WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • lead from lead-based paints, • crystalline silica from bricks and cement and other masonry products, and •...
  • Page 7 CHARGER BATTERYPACK See Figure 2. Your charger has a "key hole" hanging feature for convenient, space saving storage. Screws should be installed so that center distances are 1-7/16 inches apart. YELLOWANDGREENLIGHTS INDICATESOFT STARTMODE GREENLIGHT"ON" INDICATESSLOWCHARGING MODEOR FULLYCHARGED RED LIGHT"ON" INDICATESFAST 7/16 in.
  • Page 8 KNOWYOURTRIMSAW SWITCH See Figure 3. See Figure 3. Your saw is equipped with a lock-off button which Before attempting to use any tool familiarize yourself reduces the possibility of accidental starting. The lock- with all operating features and safety requirements. off button is located on the handle above the switch Features include easily operated bevel cut and depth trigger.
  • Page 9 Normally, the yellow and green lights on charger _k WARNING:Always wearsafetygoggles or safetyglasses withsideshields whenoperating will come on. This indicates charger is in soft start tools.Failure to dosocouldresult i nobjects mode and should switch to fast charge mode within beingthrown intoyoureyes,resulting in possible 5 minutes.
  • Page 10 WARNING: Always remove battery pack from WARNING: A 5-1/2 in. blade is the maximum your saw when you are assembling parts, making blade capacity of your saw. Never use a blade that is too thick to allow outer blade washer to adjustments, assembling or removing blades, cleaning, or when not in use.
  • Page 11 • Fitsawbladeinside lowerbladeguard andonto SAW BLADES spindle. N ote:Thesawteethpointupward atthe The best of saw blades will not cut efficiently if they frontof sawas shown infigure5. are not kept clean, sharp, and properly set. Using a • Replace outerbladewasher. dull blade will place a heavy load on your saw and increase the danger of kickback.
  • Page 12 KICKBACK TO LESSEN THE CHANCE OF KICKBACK: See Figure 8. • Always keep the correct blade depth setting - the correct blade depth setting for all cuts should not exceed 1/4 in. below the material to be cut. See Figure 10. One blade tooth below the material to be cut works best for most efficient cutting action.
  • Page 13 • Whenmaking a cutusesteady, e venpressure. STARTING A CUT Never f orcecuts. Know the right way to use your saw. • Do not cut warped or wet lumber. See Figure 13. • Always hold your saw firmly with both hands and keep your body in a balanced position so as to resist the forces of kickback should it occur.
  • Page 14 TO HELP MAINTAIN CONTROL: Hold your saw firmly with both hands. See Figure 16. • Always support your workpiece near the cut. • Support your workpiece so the cut will be on your left. • Clamp your workpiece so it will not move during the cut.
  • Page 15 TOPVIEW OF SAW GUIDELINE RIP GUIDE (EDGE GUIDE) Use the rip guide provided with your saw when FRONTOF SAW making wide rip cuts. A five inch scale has been provided on the rip guide. When using the width of cut scale on the base in combination with the rip guide, cuts can be made up to 6 in.
  • Page 16 ALTERNATIVE RIP METHOD Align your line of cut with the inner blade guide notch on the saw base when making 45 ° bevel cuts. See Figure 20. Since blade thicknesses vary and different angles Using C-clamps, firmly clamp a straight edge to the require different settings, always make a trial cut workpeice and guide the saw along the straight edge in scrap material along a guideline to determine...
  • Page 17 POSITIVE 0 ° BEVEL STOP • Turn screw and adjust base until square with saw blade. See Figure 23. • Tighten hex nut and bevel adjustment knob securely. ADJUSTMENT BEVEL WARNING: Attempting to make cuts without SCREW ADJUSTMENT bevel adjustment knob securely tightened can KNOB result in serious injury.
  • Page 18 Do not abuse power tools. Abusive practices can WARNING: When servicing, use only identical Craftsman replacement parts. Use of any other damage tool as well as workpiece. part may create a hazard or cause product Only the parts shown on parts list, page 21, are damage.
  • Page 20 CRAFTSMAN 18 VOLTS CORDLESS TRIM SAW - MODEL NUMBER 973.113120 21 22...
  • Page 21 CRAFTSMAN 18 VOLTS CORDLESS TRIM - MODEL NUMBER 973.113120 The model number will be found on a plate attached to the motor housing. Always mention the model number in all correspondence regarding your CORDLESS TRIM SAW or when ordering repair parts.
