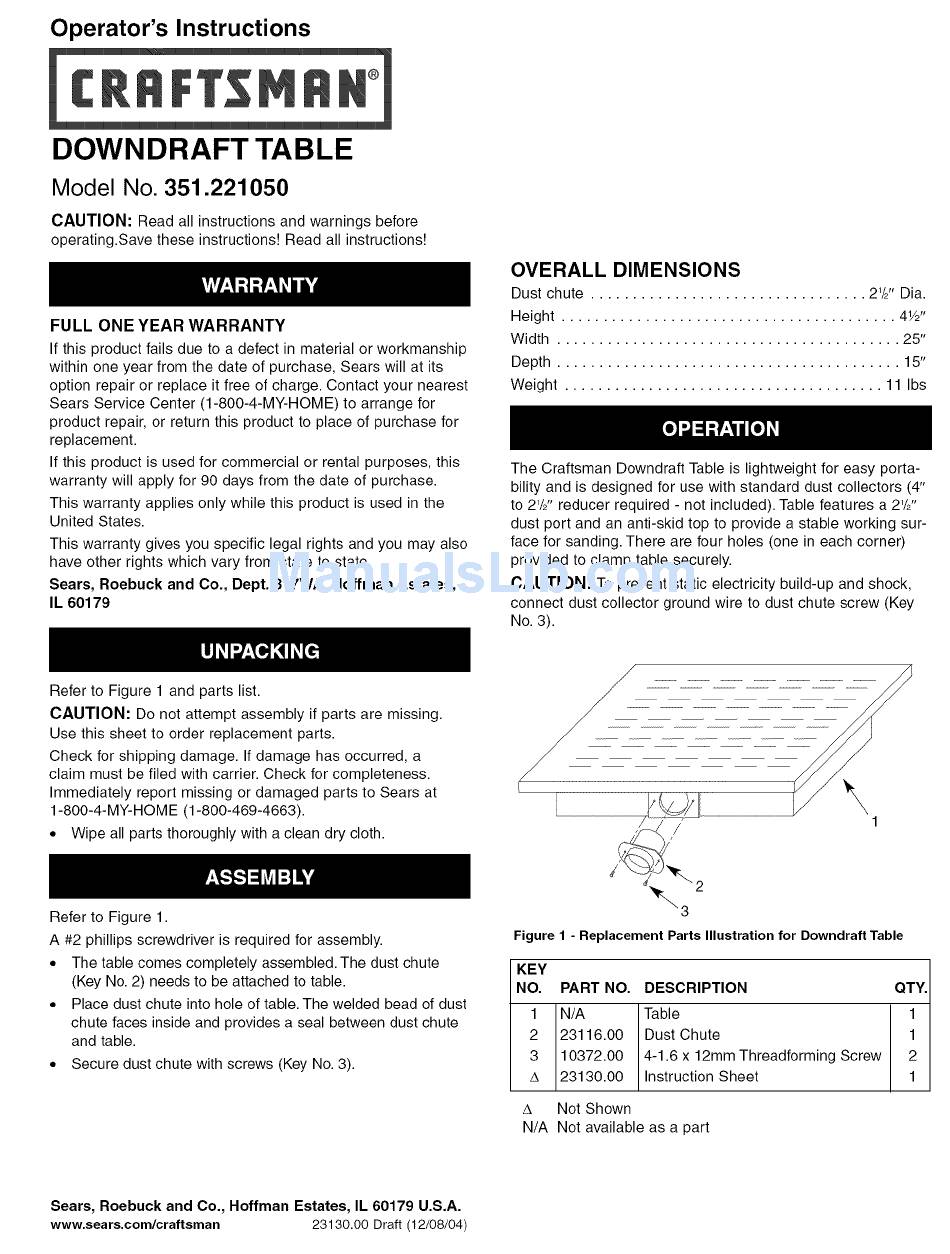

Operator's Instructions
DOWN DRAFT TABLE
Model No. 351.221 050
CAUTION:
Read all instructions and warnings before
operating.Save these instructions!
Read all instructions!
FULL ONE YEAR WARRANTY
If this product fails due to a defect in material or workmanship
within one year from the date of purchase, Sears will at its
option repair or replace it free of charge. Contact your nearest
Sears Service Center (1-800-4-MY-HOME)
to arrange for
product repair, or return this product to place of purchase for
replacement.
If this product is used for commercial or rental purposes, this
warranty will apply for 90 days from the date of purchase.
This warranty applies only while this product is used in the
United States.
This warranty gives you specific legal rights and you may also
have other rights which vary from state to state.
Sears, Roebuck
and Co., Dept. 817WA, Hoffman
Estates,
IL 60179
OVERALL
DIMENSIONS
Dust chute .................................
2_/2 ' ' Dia.
Height ........................................
4W'
Width .........................................
25"
Depth .........................................
15"
Weight ......................................
11 Ibs
The Craftsman Downdraft Table is lightweight for easy porta-
bility and is designed for use with standard dust collectors (4"
to 2_/2 ' ' reducer required - not included). Table features a 2_/2 ''
dust port and an anti-skid top to provide a stable working sur-
face for sanding. There are four holes (one in each corner)
provided to clamp table securely.
CAUTION:
To prevent static electricity build-up and shock,
connect dust collector ground wire to dust chute screw (Key
No. 3).
Refer to Figure 1 and parts list.
CAUTION:
Do not attempt assembly if parts are missing.
Use this sheet to order replacement
parts.
Check for shipping damage. If damage has occurred, a
claim must be filed with carrier. Check for completeness.
Immediately report missing or damaged parts to Sears at
1-800-4-MY-HOME
(1-800-469-4663).
Wipe all parts thoroughly with a clean dry cloth.
1
Refer to Figure 1.
A #2 phillips screwdriver is required for assembly.
The table comes completely assembled. The dust chute
(Key No. 2) needs to be attached to table.
Place dust chute into hole of table. The welded bead of dust
chute faces inside and provides a seal between dust chute
and table.
Secure dust chute with screws (Key No. 3).
3
Figure 1 - Replacement Parts Illustration for DowndraftTable
KEY
NO.
PART NO.
DESCRIPTION
QTY.
1
N/A
Table
1
2
23116.00
Dust Chute
1
3
10372.00
4-1.6 x 12ram Threadforming Screw
2
A
23130.00
Instruction Sheet
1
A
Not Shown
N/A Not available as a part
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com/craftsman
23130.00 Draft (12/08/04)
