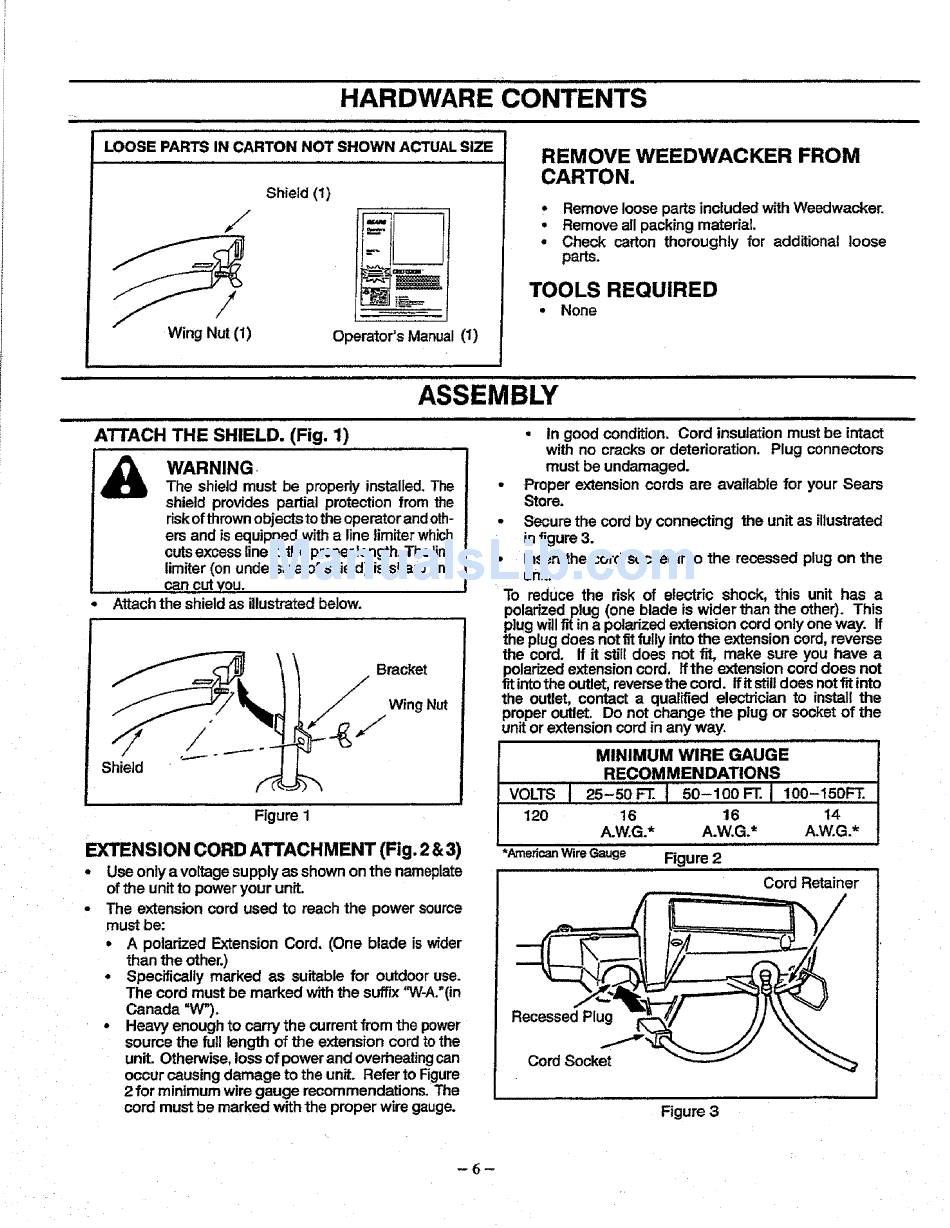

HARDWARE CONTENTS
LOOSE PARTS IN CARTON NOT SHOWN ACTUAL SiZE
,/
Wing Nut (1)
Shield (1)
Operator's Manual (1)
REMOVE WEEDWACKER
FROM
CARTON.
,
Remove loose parts included wfth Weedwacker.
•
Remove all packing material
•
Check carton thoroughly for additional
loose
parts.
TOOLS
REQUIRED
•
None
ASSEMBLY
=
A'I-t'ACH THE SHIELD. (Fig. 1)
&
WARNING
The shield must be propedy installed. The
shield provides partial protection from the
riskof thrownobjects to the operator and oth-
ers and is equipped with a line limiter which
cutsexcess line tothe properlength. The line
limiter (on underside of shield) is sharp and
can cut you.
Attach the shield as illustrated below.
____
Bracket
Wing Nut
4J
Shield
Figure 1
EXTENSION
CORD ATTACHMENT
(Fig. 2 &3)
•
Use only a voltage supply as shown on the nameplate
of the unit to power your unit.
•
The extension cord used to reach the power source
must be:
•
A poladzed Extension Cord. (One blade is wider
than the other.)
•
Specifically marked as suitable for outdoor use.
The cord must be marked with the suffix %V-A.'(in
Canada "W").
•
Heavy enough to carry the current from the power
source the full length of the extension cord to the
unit. Otherwise, loss of power and overheating can
occur causing damage to the unit. Refer to Figure
2 for minimum wire gauge recommendations. The
cord must be marked with the proper wire gauge.
=
=
,=
=
,,H,,,,
•
In good condition. Cord insulation must be intact
with no cracks or deterioration. Plug connectors
must be undamaged.
•
Proper extension cords are available for your Sears
Store.
•
Secure the cord by connecting the unit as illustrated
in figure 3.
•
Insert the cord socket into the recessed plug on the
unit.
To reduce the risk of eie_ric shock, this unit has a
polarized plug (one blade is wider than the other). This
plug willfit in e polarized extension cord only one way. If
the plug does not fit fully into the extension cord, reverse
the cord. If it _ill does not fit, make sure you have a
polarized extension cord. ffthe extension cord does not
fit into the outlet, reverse the cord. If it stilldoes not fit into
the outlet, contact a quatiiied electrician to install the
proper outlet. Do not change the plug or socket of the
unit or extension cord in any way.
MINIMUM
WIRE GAUGE
RECOMMENDATIONS
VOLTS j 25-5o . I o-loo .1 loo-15o .
120
16
16
t4
A.W.G.*
A.W.G.*
A.W.G .*
*American Wire Gauge
Figu re 2
i
Cord Retainer
Recessed Plug
Cord Socket
Figure 3
