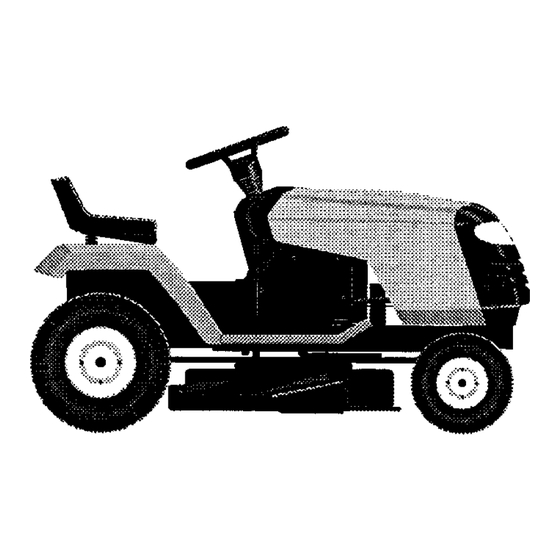

Craftsman 917.271555 Owner's Manual

15.5 hp, 42" mower electric start 6 speed transaxle
Hide thumbs
Table of Contents

Advertisement

Quick Links

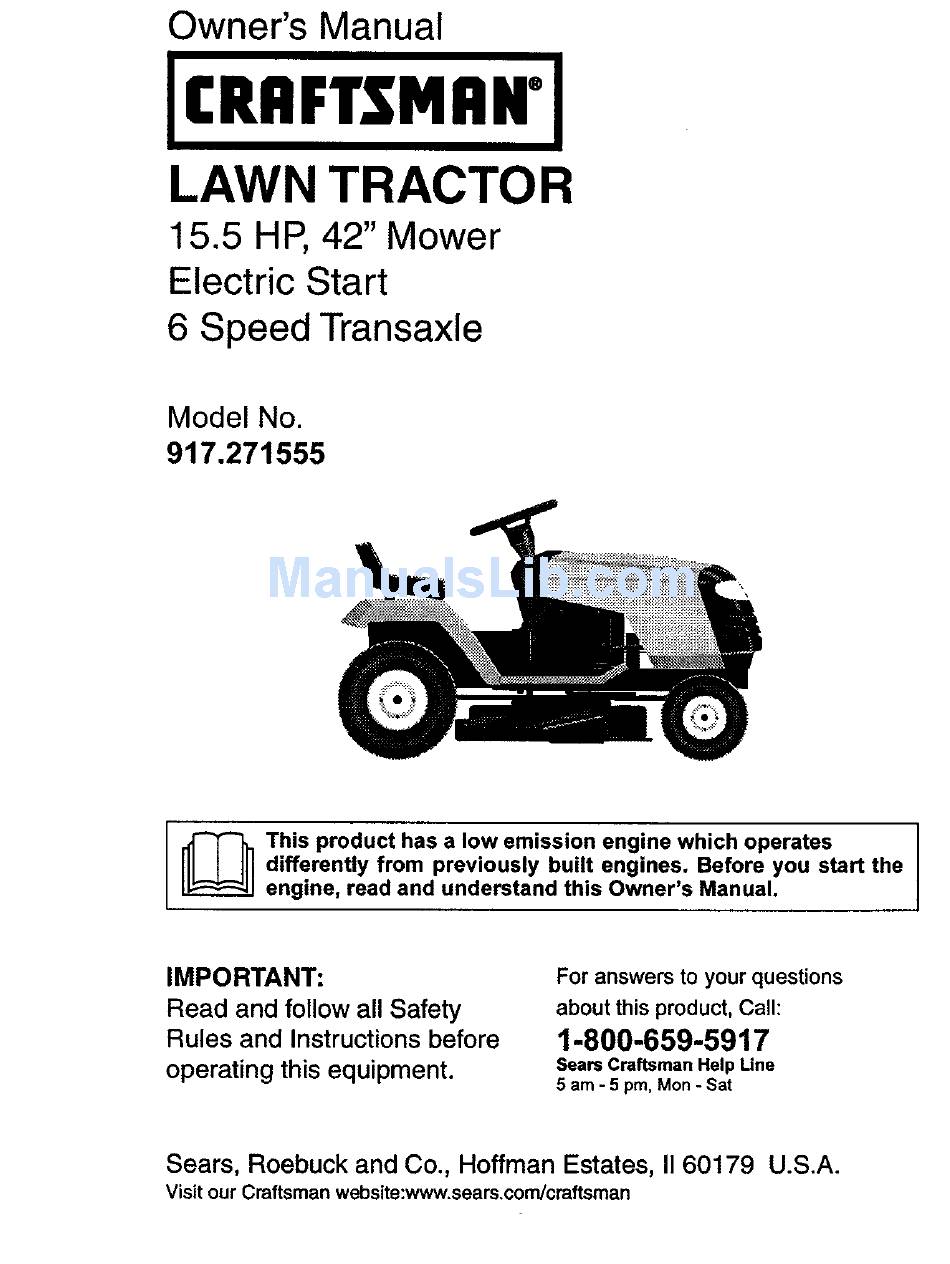

Owner's Manual
JCRRFTSMIIN'J
LAWN TRACTOR
15.5 HP, 42" Mower
Electric Start
6 Speed Transaxle
Model No.
917.271555
[_
This product has a low emission engine which operates
I
differently from previously
built engines. Before you start the
I
engine, read and understand this Owner's Manual.
IMPORTANT:
Read and follow all Safety
Rules and Instructions before
operating this equipment.
For answers to your questions
about this product, Call:
1-800-659-5917
Sears Craftsman Help Une
5 am - 5 pm, Mon- Sat
Sears, Roebuck and Co., Hoffman Estates, II 60179
U.S.A.
Visit our Craftsman
website:www,
sears,com/craftsman
