User interfaces
4.1.1
Remote Management window for Remote Manager
and Console Menu
The following section describes the components of the Remote Management
window for the Remote Manager (iRMC/ iRMC S2, RSB/ RSB S2/ RSB S2 LP
(3HU)) and the Console Menu application (RemoteView Management Blade).
I
The structure of the Remote Management window is identical for the Telnet
and SSH-based Remote Manager and for the Console Menu application.
The only differences relate to the displayed port numbers: 3172 (Telnet
port) and 22 (SSH port, only for a connection to iRMC/ iRMC S2).

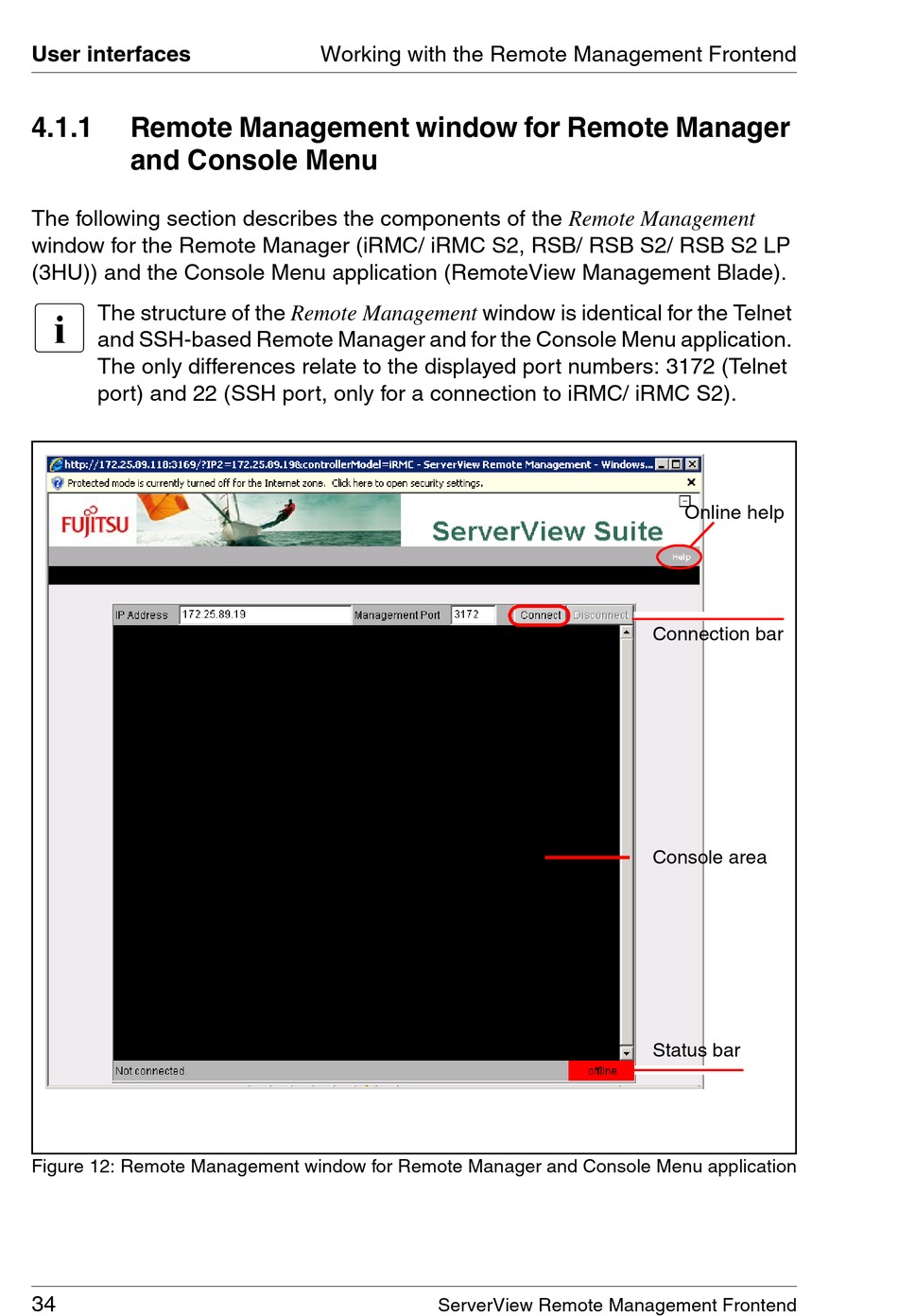

Figure 12: Remote Management window for Remote Manager and Console Menu application
34
Working with the Remote Management Frontend
ServerView Remote Management Frontend
Online help
Connection bar
Console area
Status bar
