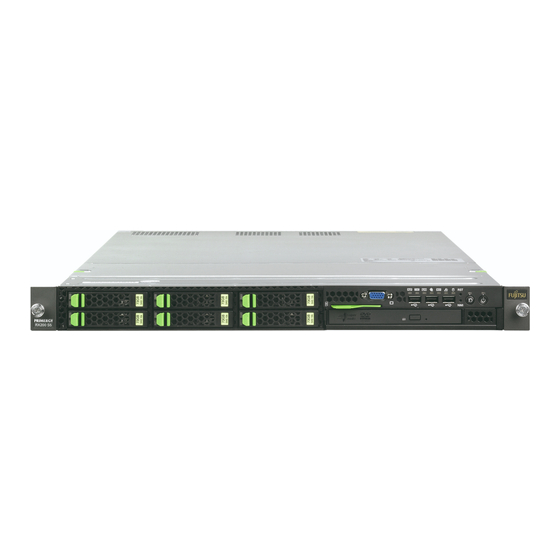

PRIMERGY RX200 S5 Server
Options Guide
Edition April 2009

Advertisement

Table of Contents
loading

Related Manuals for Fujitsu PRIMERGY RX200 S5

Summary of Contents for Fujitsu PRIMERGY RX200 S5

  • Page 1 PRIMERGY RX200 S5 Server Options Guide Edition April 2009...

  • Page 2: Copyright And Trademarks

    Gesellschaft für Technik-Dokumentation mbH www.cognitas.de Copyright and Trademarks Copyright © 2009 Fujitsu Technology Solutions GmbH. All rights reserved. Delivery subject to availability; right of technical modifications reserved. All hardware and software names used are trademarks of their respective manufacturers.

  • Page 3: Table Of Contents

    Contents Preface ......5 Concept and target groups ....5 Documentation overview .
  • Page 4 Contents Installing a SATA DVD drive ....38 HDD modules ......41 Expansion cards and iBBU .

  • Page 5: Preface

    Preface The PRIMERGY RX200 S5 server is an Intel-based server for mid-size networks and large companies. The server is suitable for use as a file server and also as an application, information or Internet server. Thanks to its highly developed hardware and software components, the PRIMERGY RX200 S5 server offers a high level of data security and availability.
  • Page 6 The PDF files of the manuals can also be downloaded free of charge from the Internet. The overview page showing the online documentation available on the Internet can be found using the URL: http://manuals.ts.fujitsu.com. The PRIMERGY server documentation can be accessed using the Industry standard servers navigation option. Further sources of information: –...

  • Page 7: Expansions And Conversions

    Preface Expansions and conversions Expansions and conversions Second processor The system board can be upgraded with a second processor. Only processors of the same type may be used on the system board. The second processor must have the same clock frequency as the first. Main memory expansion The system board supports up to 96 GB of main memory.
  • Page 8 (e.g. drive encryption using Windows Bitlocker Drive Encryption). The TPM is activated via the BIOS system (for more information, refer to the Fujitsu Technology Solutions BIOS manual). CAUTION! – When using the TPM, note the program descriptions provided by the third party manufacturers.

  • Page 9: Notational Conventions

    Preface Notational conventions Notational conventions The following notational conventions are used in this manual: indicates commands or menu items. Text in italics “Quotation marks” indicate names of chapters and terms that are being emphasized. Ê describes activities that must be performed in the order shown.

  • Page 11: Procedure

    Procedure CAUTION! ● The actions described in this manual should only be performed by technical specialists. Repairs to the device that do not relate to CSS failures must only be ● carried out by service personnel. Please note that unauthorized inter- ference with the system will void the warranty and exempt the manufacturer from all liability.

  • Page 13: Safety Instructions

    Safety instructions The following safety instructions are also provided in the manual “Safety notes and other important information”. This device meets the relevant safety regulations for IT equipment. If you have any questions about whether you can install the server in the intended environment, please contact your sales outlet or our customer service team.
  • Page 14 Safety instructions Before starting up CAUTION! ● During installation and before operating the device, observe the instructions on environmental conditions for your device. ● If the device is brought in from a cold environment, condensation may form both inside and on the outside of the device. Wait until the device has acclimatized to room temperature and is absolutely dry before starting it up.
  • Page 15 Safety instructions CAUTION! Ensure that the power sockets on the device and the grounded shock- ● proof sockets are freely accessible. ● The On/Off button or the main power switch (if present) does not isolate the device from the mains power supply. To disconnect it completely from the mains power supply, unplug all network power plugs from the grounded shockproof sockets.
  • Page 16 Safety instructions CAUTION! ● Proper operation of the system (in accordance with IEC 60950-1/ EN 60950-1) is only ensured if the casing is completely assembled and the rear covers for the installation slots have been fitted (electric shock, cooling, fire protection, interference suppression). Only install system expansions that satisfy the requirements and ●...
  • Page 17 Safety instructions Working with CDs/DVDs and CD/DVD drives When working with devices with CD/DVD drives, these instructions must be followed. CAUTION! ● Only use CDs/DVDs that are in perfect condition in your server's CD/DVD drive, in order to prevent data loss, equipment damage and injury.
  • Page 18 Safety instructions Modules with electrostatic-sensitive components Systems and components that might be damaged by electrostatic discharge (ESD) are marked with the following label: Figure 1: ESD label When you handle components fitted with ESDs, you must observe the following points under all circumstances: Remove the power plug before installing or removing components ●...

  • Page 19: Preparation

    Preparation CAUTION! Follow the safety instructions in the chapter “Safety instructions” on page Pulling out/removing the server Ê Terminate all applications and shut down the server correctly. Ê If your operating system has not switched off the server, press the on/off button.

  • Page 20: Opening The Server

    Opening the server Preparation Opening the server You must remove the fan cover before removing the housing cover. Removing the fan cover Figure 2: Opening the fan cover Ê Push the two green buttons (1) in the direction of the arrow and lift the fan cover upwards to remove it (2).
  • Page 21 Preparation Opening the server Figure 4: Using the locking levers Ê Push the green locking levers together as shown (1) and then move them up (2) so that the housing cover is pushed backward slightly. Ê Lift off the housing cover upwards. Options Guide RX200 S5...

  • Page 22: Removing The Air Cowl

    Removing the air cowl Preparation Removing the air cowl Figure 5: Taking off the air cowl Ê Lift the air cowl upwards to remove it. Options Guide RX200 S5...

  • Page 23: Processors

    Processors CAUTION! Follow the safety instructions in the chapter “Safety instructions” on page CAUTION! Processors are modules which can react extremely sensitively to electro- static discharges and which must therefore always be handled with care. After a processor has been removed from its protective sleeve or from its socket, place it with its smooth side down on a non-conducting, antistatic surface.
  • Page 24 Installing a second processor Processors Inserting the processor Figure 6: Releasing the lever Ê Release the socket lever by pressing it sideways and pushing it upwards as far as it will go (1). Ê Open the cover (2). Ê Remove the plastic cover (3). Figure 7: Inserting the processor Ê...
  • Page 25 Processors Installing a second processor Installing the heat sink Figure 8: Installing the heat sink Ê Place the heat sink on the processor as shown. Ê Fasten the heat sink by tightening the four screws in a crossover pattern (see circles).

  • Page 26: Replacing The Processor

    Replacing the processor Processors Replacing the processor CAUTION! Only processors of the same type may be used on the system board. Ê Open the server as described in chapter “Preparation” on page Ê Lift the air cowl upwards to remove it as described in section “Removing the air cowl”...
  • Page 27 Processors Replacing the processor Figure 10: Removing an old processor Ê Release the socket lever by pressing it sideways and pull it upward as far as it will go (1). Ê Open the cover (2). Ê Lift the installed processor carefully out of the socket (3). Figure 11: Inserting a new processor Ê...
  • Page 28 Replacing the processor Processors Ê Apply a small amount of thermal paste to the upper side of the new processor. Ê Ensure a thin and even distribution of the thermal paste. Ê Place the heat sink on the processor (see figure 8 on page 25).

  • Page 29: Replacing The Heat Sink

    Processors Replacing the heat sink Replacing the heat sink Ê Open the server as described in chapter “Preparation” on page Ê Lift the air cowl upwards to remove it as described in section “Removing the air cowl” on page Ê Remove the four screws of the heat sink in a crossover pattern (see figure 9 on page 26).

  • Page 31: Main Memory

    Main memory CAUTION! Follow the safety instructions in the chapter “Safety instructions” on page The system board has a total of 12 slots (6 for each CPU) for memory modules (DIMMs), which are suitable for both RDIMM memory modules (registered DIMM with the capacities 2048, 4096 and 8192 MB) and UDIMM memory modules (unbuffered DIMM with the capacities 1024 and 2048 MB).

  • Page 32: Equipping Rules

    Equipping rules Main memory Equipping rules The 6 slots for each CPU for the main memory are divided into two banks (bank 1 and bank 2) with 3 channels each (A, B and C). Performance Spare Independent Mirrored Channel Mode Channel Mode Channel Mode Channel Mode...
  • Page 33 Main memory Equipping rules Performance Channel Mode – Requires identical modules on all channels of each bank for each CPU. – RDIMM memory modules are supported. Spare Channel Mode – Requires identical modules on all channels of each bank for each CPU. –...

  • Page 34: Extending/Replacing The Main Memory

    Extending/replacing the main memory Main memory Extending/replacing the main memory Ê Open the server as described in chapter “Preparation” on page Ê Lift the air cowl upwards to remove it as described in section “Removing the air cowl” on page Removing installed memory modules Figure 13: Removing a memory module Ê...
  • Page 35 Main memory Extending/replacing the main memory Inserting memory modules Figure 14: Inserting a memory module Ê Insert the memory module into the slot (1) and carefully press it down until the ejection levers on the sides engage (2). Ê Fit the air cowl as described in chapter “Completion”...

  • Page 37: Accessible Drive

    Accessible drive CAUTION! Follow the safety instructions in the chapter “Safety instructions” on page Insert the optical drive that can be delivered as an option in a mounting frame before sliding it in the server. The parts required for the installation are shown in the photo below: Figure 15: Parts required for installing the SATA DVD drive Mounting frame...

  • Page 38: Installing A Sata Dvd Drive

    Installing a SATA DVD drive Accessible drive Installing a SATA DVD drive Ê Open the server as described in chapter “Preparation” on page Ê First remove the dummy module by pushing it forward out of the housing. CAUTION! Keep the dummy module for future use. If you remove the accessible drive again and do not replace it with a new one, the dummy module must be reinstalled to comply with EMC regulations and to satisfy cooling requirements and fire protection measures.
  • Page 39 Accessible drive Installing a SATA DVD drive Figure 17: Position of the pins in the mounting frame and the openings on the DVD drive Ê Insert the DVD drive into the mounting frame so that the plastic pins (1) on both sides of the mounting frame are inserted into the openings (2) on the outsides of the drive.

  • Page 41: Hdd Modules

    HDD modules CAUTION! Follow the safety instructions in the chapter “Safety instructions” on page The server can accommodate two further hard disk drive modules (HDDs) instead of the DVD drive. To do this, you need a conversion kit consisting of the following parts: Figure 19: Backplane for eight HDD modules Backplane for up to 8 HDDs...
  • Page 42 HDD modules Removing an existing DVD drive or dummy module Ê Disconnect the DVD cable plug from the system board and from the HDD backplane. Figure 20: Removing the DVD drive or dummy module Ê Remove the DVD drive module or dummy module by pushing it forward out of the housing.
  • Page 43 HDD modules Removing the DVD drive cage Figure 21: Demounting the DVD drive cage Ê Loosen the screw on the right hand side (see circle) and move the DVD drive cage outwards in the direction of the arrow. Options Guide RX200 S5...
  • Page 44 HDD modules Removing the existing backplane (6x HDD) Ê Remove all HDD modules from the housing. Figure 22: Removing the HDD backplane Ê Disconnect all cables from the HDD backplane (see oval). Ê Lift the HDD backplane over the metal bars (see arrows) and then remove it in the direction of the rear of the server.
  • Page 45 HDD modules Installing the drive cage for 8x HDD Figure 23: Installing the HDD drive cage Ê Push the drive cage for the two additional HDD modules into the housing. Ê Screw the drive cage in place (see circle). Options Guide RX200 S5...
  • Page 46 HDD modules Inserting the HDD modules HDD #6 HDD #7 Figure 24: Installation positions of additional HDD modules Ê Push the additional HDD modules into the two drives (left side = HDD #6, right side = HDD #7) of the drive cage. Ê...

  • Page 47: Expansion Cards And Ibbu

    Expansion cards and iBBU CAUTION! Follow the safety instructions in the chapter “Safety instructions” on page Installing an expansion card in riser cards The server has three slots for PCIe expansion cards. These are integrated in the system using riser cards (see positions (1) - (3) in figure 25).
  • Page 48 Installing an expansion card in riser cards Expansion cards and iBBU Removing the riser card holders Figure 25: Position of riser card holders 1-3 Ê If necessary, disconnect the cables from the relevant expansion card. Ê Pull the required riser card holder upwards to remove it. Installing an expansion card Ê...
  • Page 49 Expansion cards and iBBU Installing an expansion card in riser cards Figure 26: Riser card holder #2 with riser card Ê Remove the rear cover (1) from the riser card holder. Keep the rear cover for future use. If you remove the expansion card, you must replace the rear cover to comply with EMC regulations and to satisfy cooling requirements and fire protection measures.
  • Page 50 Installing an expansion card in riser cards Expansion cards and iBBU Figure 27: Riser card holder equipped with a controller Ê Insert the board into the riser card holder of the same height. Make sure that the rear cover is positioned in the designated groove. Ê...

  • Page 51: Installing A Modular Raid Controller

    Expansion cards and iBBU Installing a modular RAID controller Installing a modular RAID controller A modular RAID controller can be installed in the server as an option. Riser card holder #3 (see figure 25 on page 48) is intended solely for this purpose. Removing riser card holder #3 Ê...

  • Page 52: Installing An Ibbu

    Installing an iBBU Expansion cards and iBBU Ê Close the server, connect all power plugs to the power outlets, and switch on the server as described in chapter “Completion” on page Installing an iBBU If a modular RAID 5 controller is installed in riser card #3, you can add an iBBU (intelligent Battery Backup Unit) to it.
  • Page 53 Expansion cards and iBBU Installing an iBBU Figure 30: Cable connection on the underside of the iBBU Ê Insert the iBBU cable into the corresponding connection on the underside of the iBBU (see oval). Figure 31: Position of the iBBU holder in the server Options Guide RX200 S5...
  • Page 54 Installing an iBBU Expansion cards and iBBU Figure 32: Installing the iBBU Ê Install the iBBU in its holder in the server as follows: 1. Slide the iBBU under the two plastic pins of the iBBU holder (1). 2. Press down the iBBU on the opposite side until you feel it click into place (2).
  • Page 55 Expansion cards and iBBU Installing an iBBU Figure 33: iBBU - Routing the cable Ê Route the iBBU cable as shown. The iBBU cable must pass beneath the power cable that crosses the iBBU cable. Options Guide RX200 S5...
  • Page 56 Installing an iBBU Expansion cards and iBBU Figure 34: Connecting the cable to the modular RAID 5 controller Ê Connect the free end of the iBBU connection cable to the corresponding connector on the RAID 5 controller (1). The connector is protected against polarity reversal, in other words, the plug can only be connected one way round.

  • Page 57: Usb Solid State Disk (Ussd)

    USB solid state disk (uSSD) CAUTION! Follow the safety instructions in the chapter “Safety instructions” on page The system board has a slot – possibly covered by an installed modular RAID controller – for a USB solid state disk (uSSD). It can be used as optional memory for software (e.g.

  • Page 59: Trusted Platform Module (Tpm)

    Trusted Platform Module (TPM) CAUTION! Follow the safety instructions in the chapter “Safety instructions” on page The Trusted Platform Module (TPM) is installed on the system board between riser cards #1 and #2 (see photo below). It is used for safe storage of key infor- mation (e.g.

  • Page 61: Completion

    Completion CAUTION! Follow the safety instructions in the chapter “Safety instructions” on page 12.1 Fitting the air cowl Figure 37: Fitting the air cowl Ê Refit the air cowl. Please note the information described below. Options Guide RX200 S5...
  • Page 62 Fitting the air cowl Completion The plastic pin of the air cowl must slot into the groove of the system board ● (see circle): Slot #3 DIMM CPU #1 Figure 38: Position of the plastic pin of the air cowl Options Guide RX200 S5...
  • Page 63 Completion Fitting the air cowl ● The air cowl must be hooked into the fan brackets on the left and right as seen from the front (in this case, the right side): Fan #3/#4 Fan #1/#2 Figure 39: Position of the fan bracket (right side) of the air cowl Options Guide RX200 S5...
  • Page 64 Fitting the air cowl Completion The air cowl must be hooked into the fan brackets on the left and right as ● seen from the front (in this case, the left side): Fan #11/#12 Figure 40: Position of the fan bracket (left side) of the air cowl Options Guide RX200 S5...

  • Page 65: Closing The Server

    Completion Closing the server 12.2 Closing the server Ê Position the housing cover so that it protrudes about 1 cm over the back edge. Make sure that each bolt is positioned in the corresponding nut. Ê Push the housing cover all the way forward until it clicks into place. Ê...

  • Page 67: Cabling

    Cabling 13.1 Cabling overview No. Part no. Description From A3C40102683 Front VGA cable Front panel board System board A3C40102687 SATA cable ODD Optical Disk Drive 1. SATA (ODD) connection (system board) 2. HDD backplane A3C40102656 SAS HDD cable Onboard SATA HDD backplane connection or RAID (CN1 or CN2)

  • Page 68: Cable Diagrams

    Cable diagrams Cabling 13.2 Cable diagrams 13.2.1 Cabling for up to 4 HDD modules Figure 41: Cable diagram for 4 HDD modules with onboard SATA controller Options Guide RX200 S5...

  • Page 69: 13.2.2 Cabling For Up To 6 Hdd Modules

    Cabling Cable diagrams 13.2.2 Cabling for up to 6 HDD modules Figure 42: Cable diagram for 6 HDD modules with optional RAID controller Options Guide RX200 S5...

  • Page 70: 13.2.3 Cabling For Up To 8 Hdd Modules

    Cable diagrams Cabling 13.2.3 Cabling for up to 8 HDD modules Figure 43: Cable diagram for 8 HDD modules with optional RAID controller Options Guide RX200 S5...

  • Page 71: Index

    Index 5.25 inch DVD bay laser information light emitting diode (LED) lithium battery Accessible drives air cowl fitting main memory removing expansion options types meaning of the symbols Chipkill memory configuration components modular RAID controller hardware software notational conventions data manipulation drive cage (8x HDD) PCI Express DVD drive...
