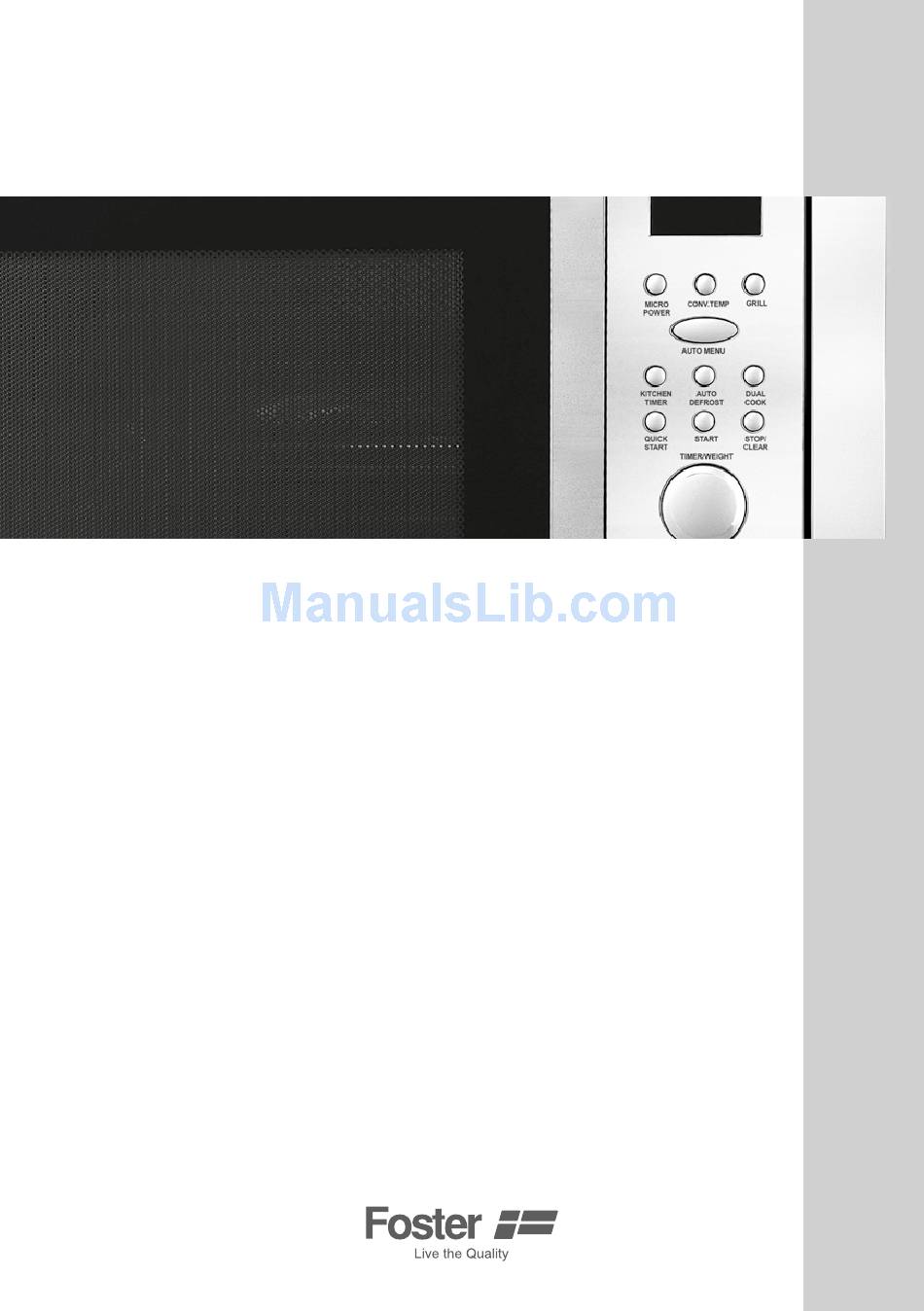

- Page 1 Forno Micro+Grill S1000 cod. 7151 000...
-
Page 2: Microwave Oven
Microwave Oven INSTRUCTION MANUAL MODEL: AG925BBD Read these instructions carefully before using your microwave oven,and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service. SAVE THESE INSTRUCTIONS CAREFULLY PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. -
Page 3: Specifications
ADDENDUM If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation. Specifications AG925BBD Model: 230 V~50 Hz Rated Voltage: 1450 W Rated Input Power (Microwave): 900 W Rated Output Power (Microwave):... -
Page 4: To Reduce The Risk Of Injury To Persons
designed for industrial or laboratory use. 16 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. 17 Do not store or use this appliance outdoors. 18 Do not use this oven near water, in a wet basement or near a swimming pool. 19 The temperature of accessible surfaces may be high when the appliance is operating. Keep cord away from heated surface, and do not cover any events on the oven. 20 Do not let cord hang over edge of table or counter. 21 Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. -
Page 5: Materials You Can Use In Microwave Oven
Two-round-pin plug This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord , use only a 3-wire extension cord. 1 A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord. -
Page 6: Materials To Be Avoided In Microwave Oven
(5mm) above the turntable. Incorrect usage may cause the turntable to break. Dinnerware Microwave-safe only. Follow manufacturer’s instructions. Do not use cracked or chipped dishes. Glass jars. Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break. Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. Oven cooking Follow manufacturer’s instructions. Do not close with metal tie. Make bags slits to allow steam to escape. Paper plates. use for short–term cooking/warming only. Do not leave oven unattended and cups while cooking. Paper towels. Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only. Parchment. Use as a cover to prevent splattering or a wrap for steaming. Paper Plastic. Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled “Microwave Safe”. Some plastic containers soften, as the food inside gets hot. “Boiling bags” and tightly closed plastic bags should be slit, pierced or vented as directed by package. -
Page 7: Setting Up Your Oven
Paper bags. May cause a fire in the oven. Plastic foam. Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood. Wood will dry out when used in the microwave oven and may split or crack. SETTING UP YOUR OVEN Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity.Your oven comes with the following accessories: A Control panel B Turntable shaft C Turntable ring assembly D Glass tray E Observation window F Door assemby G safety interlock system 1 Instruction manual 1 Grill Rack (Only for Grill series) Turntable Installation a. Never place the glass tray upside down. The glass tray should never be restricted. -
Page 8: Installation And Connection
Installation and connection 1. This appliance is only intended for domestic use. 2. This oven is intended for built-in use only.It is not intended for counter-top use or for use inside a cupboard. 3. Please observe the special installation instructions. 4. The appliance can be installed in a 60cm wide wall-mounted cupboard(at lease 55cm deep and 85cm off the floor). 5. The appliance is fitted with a plug and must only be connected to a properly installed earthed socket. 6. The mains voltage must correspond to the voltage specified on the rating plate. 7. The socket must be installed and connecting cable must only be replaced by a qualified electrician.If the plug is no longer to accessible following installation,an all-pole disconnecting device must be present on the installation side with a contact gap of at lease 3mm. -
Page 9: Built-In Furniture
A. Built-in furniture The built-in cabinet shall not have a rear wall behind the appliance. Minimum installation height is 85cm. Do not cover ventilation slots and air intake points. B. Install the Oven • Do not trap or kink the power cord. • Make sure that the oven is installed in the center of the cabinet. -
Page 10: Clock Setting
Open the door; fix the oven to the cabinet with SCREW at the INSTALLATION HOLE of TRIM KIT. Then fix the TRIM-KIT PLASTIC COVER to the INSTALLATION HOLE. Operation Instructions 1. Clock Setting When the microwave oven is electrified, the LED will display “0:00”, buzzer will ring once. 1) Press “ CLOCK “, the hour figures will flash. 2) Turn “ “ to adjust the hour figures, the input time should be within 0--23. 3) Press “ CLOCK “, the minute figures will flash. 4) Turn “ “ to adjust the minute figures, the input time should be within 0--59. 5) Press “ CLOCK “ to finish clock setting. “:” will flash, and the time will light. Note: 1) If the clock is not set, it would not function when powered. 2) During the process of clock setting, if you press “STOP/CLEAR “, the oven will go back to the previous status automatically. 2. Microwave Cooking. Press “ MICRO./GRILL/COMBI. “ the LED will display “P100. Press “ MICRO./GRILL/COMBI. “ for times or turn “ “ to choose the power you want, and “P100”, “P80” “P50”, “P30” or “P10” will display for each added press. Then press” START “ to confirm, and turn “ “ to set cooking time from 0:05 to 95:00.Press “ START “ again to start cooking. Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps. 1) Press “ MICRO./GRILL/COMBI. “ once, the screen display “P100”. 2) Press “ MICRO./GRILL/COMBI. “ once again or turn “ “ to choose 80% microwave power. 3) Press “ START “ to confirm, and the screen displays “P 80”. 4) Turn “ “ to adjust the cooking time until the oven displays “20:00”. -
Page 11: Kitchen Timer
5) Press “ START “ to start cooking . Note: the step quantities for the adjustment time of the coding switch are as follow: 0---1 min: 5 seconds 1---5 min: 10 seconds 5---10 min: 30 seconds 10---30 min: 1 minute 30---95 min: 5 minutes Order Display “MICRO./GRILL/COMBI.” Microwave Grill Pad instructions Power Power P100 100% 100% 3. Grill or Combi. Cooking Press “ MICRO./GRILL/COMBI. “ once, the LED will display “P100”,and press “ MICRO./GRILL/COMBI. “for times or turn the “... -
Page 12: Speedy Cooking
Note: The kitchen Time is differ from 12-hour system,Kitchen Timer is a timer. 5. Speedy Cooking 1) In waiting state, Press “ START “ to start cooking with 100% power for 30 seconds, each added press will increase 30 seconds cooking time up to 95 minutes. 2) In microwave cooking or time defrost state, each press of “ START “ can increase 30 seconds cooking time. 3) Under the state of auto menu and weight defrost, cooking time cannot be increased by pressing “ START”. 6. Defrost By Weight 1) Press “ WEIGHT DEFROST “ once, and the oven will display “dEF1”. 2) Turn “ “ to select the weight of food from 100 to 2000 g. 3) Press “ START “ to start defrosting. 7. Defrost By Time 1) Press “ TIME DEFROST “ once, and the oven will display “dEF2”. 2) Turn “ “ to select the defrost time. The MAX.time is 95 minutes. 3) Press “ START “ to start defrosting. The defrost power is P30. It cannot change. 8. Auto Reheat 1) Press “ AUTO REHEAT “ once, and the LED will display “200”. 2) Press “ AUTO REHEAT “ more times or turn “ “ to choose the weight of food, and “400” or “600” g will be selected. 3) Press “ START “ to start cooking. 9. Auto Menu 1) Press “AUTO MENU” several times or turn “ “ to choose the menu, and “A-1” to “A-8” will display, which means pizza, chicken pieces,meat, vegetable, fish, pasta, soup and potato. 2) Press “ START “ to confirm. - Page 13 The menu chart: Menu Weight Display 200 g Pizza 400 g 200 g 400 g Chicken Pieces 600 g 800g 250 g 350 g Meat 450 g 200 g 300 g Vegetable 400 g 250 g 350 g Fish 450 g 50g(with 450 ml cold water) Pasta 100g(with 800 ml cold water)
-
Page 14: Multi-Section Cooking
11. Multi-section cooking At most 2 sections can be set for cooking. In multi-section cooking, if one section is defrosting, then defrosting shall be placed in the first section. Example: If you want to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, operate it as the following: 1) Press “ TIME DEFROST” once, and the oven will display “dEF2”. 2) Turn “ “ to select the defrost time till “5:00” display. 3) Press “ MICRO./GRILL/COMBI. “ once, the screen display “P100”. 4) Press “ MICRO./GRILL/COMBI. “ once again or turn “ “ to choose 80% microwave power. 5) Press “ START “ to confirm, and the screen displays “P 80”. 6) Turn “ “ to adjust the cooking time till the oven displays “7:00”. 7) Press “ START “ to start cooking, and buzzer will sound once for the first section, defrosting time counts down; buzzer will sound once again entering the second cooking. when cooking finish, buzzer sounds five times. 12. Inquiring Function 1)In states of microwave,grill or combination cooking, press “ MICRO./GRILL/COMBI. “, the current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back to the former state. 2) In cooking state, press “ CLOCK “ to inquire the time and the time will display for 3 seconds. 3) In preset state, press “ PRE-SET “ to inquire the preset time, and the preset time will display for 3 seconds. 13. Lock-out Function for Children Lock: In waiting state, press “ STOP/CLEAR “ for 3 seconds, there will be a long beep denoting entering the children-lock state and the locked indicator will display. The current time will display if the time has been set, otherwise, the LED will display “... -
Page 15: Troubleshooting
Trouble shooting... - Page 16 It is forbidden to run the unit without any food inside. It is very dangerous. According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.
