Dynex DX-42E250A12 Quick Setup Manual

42" LED-LCD HDTV 1080p

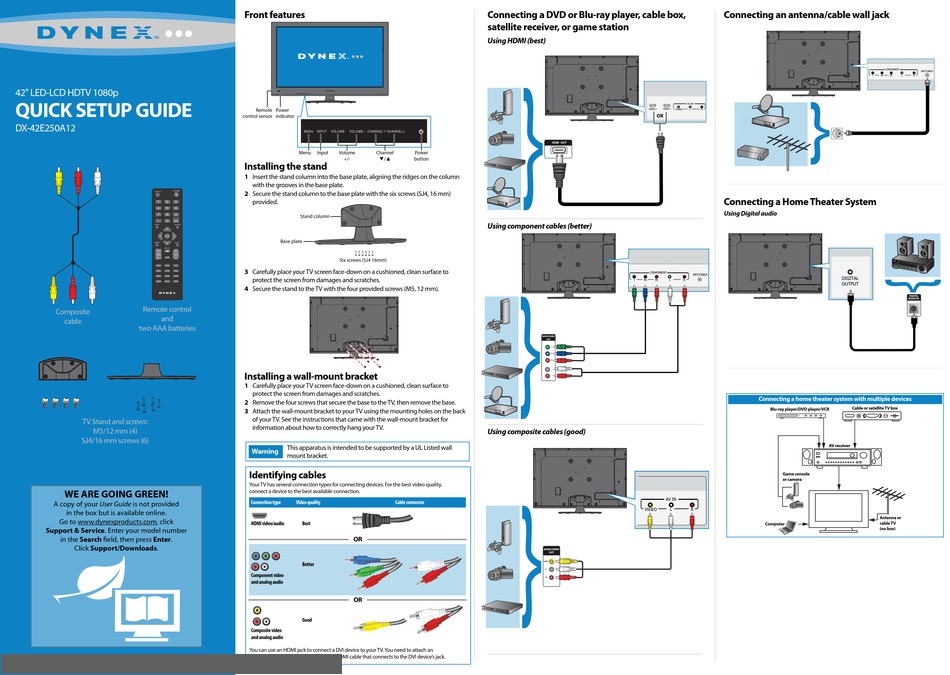

QUICK SETUP GUIDE

DX-42E250A12
Remote control
Composite
and
cable
two AAA batteries
TV Stand and screws:
M5/12 mm (4)
SJ4/16 mm screws (6)
WE ARE GOING GREEN!
A copy of your User Guide is not provided
in the box but is available online.
Go to www.dynexproducts.com, click
Support & Service. Enter your model number
in the Search field, then press Enter.
Click Support/Downloads.
Front features
Remote Power
control sensor indicator
MENU INPUT VOLUME- VOLUME+ CHANNEL CHANNEL
Menu Input Volume Channel Power
▼/▲
+/- button
Installing the stand
1 Insert the stand column into the base plate, aligning the ridges on the column
with the grooves in the base plate.
2 Secure the stand column to the base plate with the six screws (SJ4, 16 mm)
provided.
Stand column
Base plate
Six screws (SJ4 16mm)
3 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
4 Secure the stand to the TV with the four provided screws (M5, 12 mm).
Installing a wall-mount bracket
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Remove the four screws that secure the base to the TV, then remove the base.
3 Attach the wall-mount bracket to your TV using the mounting holes on the back
of your TV. See the instructions that came with the wall-mount bracket for
information about how to correctly hang your TV.
This apparatus is intended to be supported by a UL Listed wall
Warning
mount bracket.
Identifying cables
Your TV has several connection types for connecting devices. For the best video quality,
connect a device to the best available connection.
Connection type Video quality Cable connector
HDMI video/audio Best
OR
Better
Component video
and analog audio
OR
Good
Composite video
and analog audio
You can use an HDMI jack to connect a DVI device to your TV. You need to attach an
HDMI-to-DVI adapter to the end of the HDMI cable that connects to the DVI device's jack.
Connecting a DVD or Blu-ray player, cable box,
satellite receiver, or game station
Using HDMI (best)
OR
Using component cables (better)
AUDIO/VIDEO
OUT
Using composite cables (good)
AUDIO/VIDEO
OUT
Connecting an antenna/cable wall jack
Connecting a Home Theater System
Using Digital audio
Connecting a home theater system with multiple devices
Cable or satellite TV box
Blu-ray player/DVD player/VCR
AV receiver
Game console
or camera
Antenna or
cable TV
Computer
(no box)
DIGITAL
AUDIO IN
